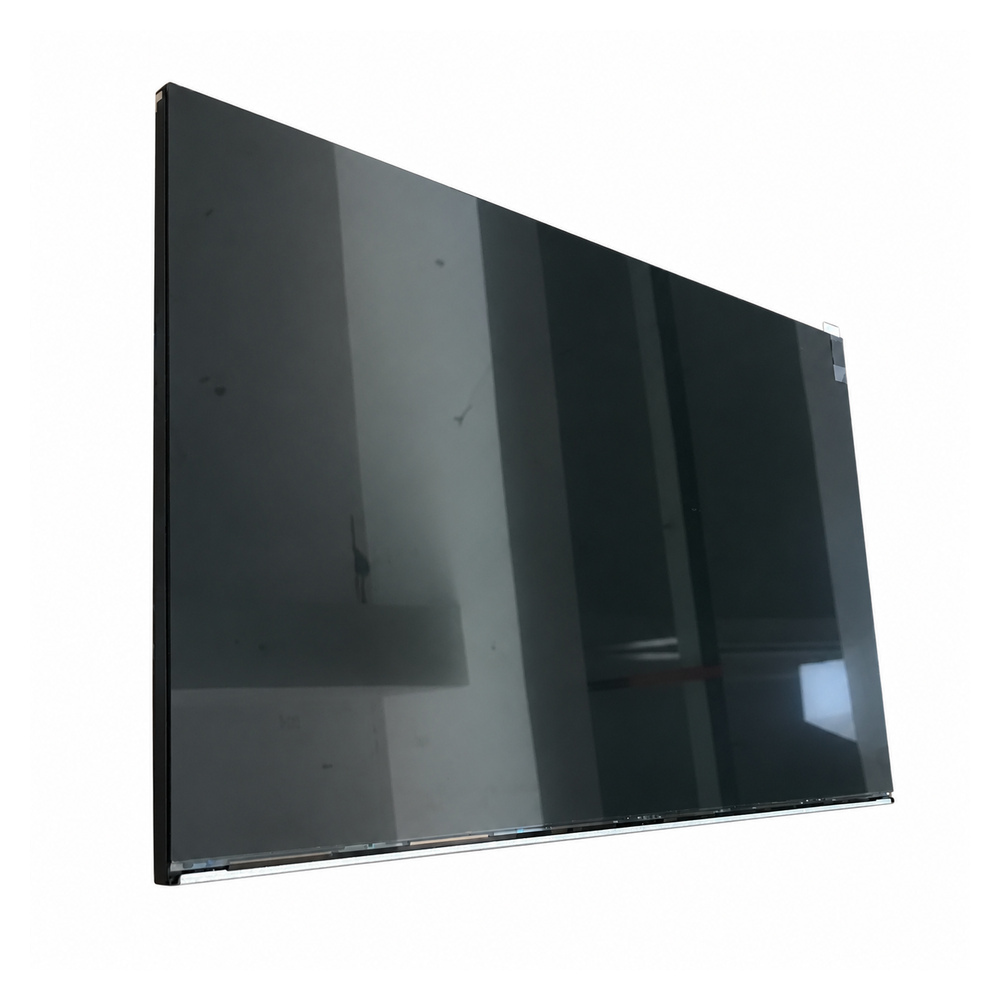

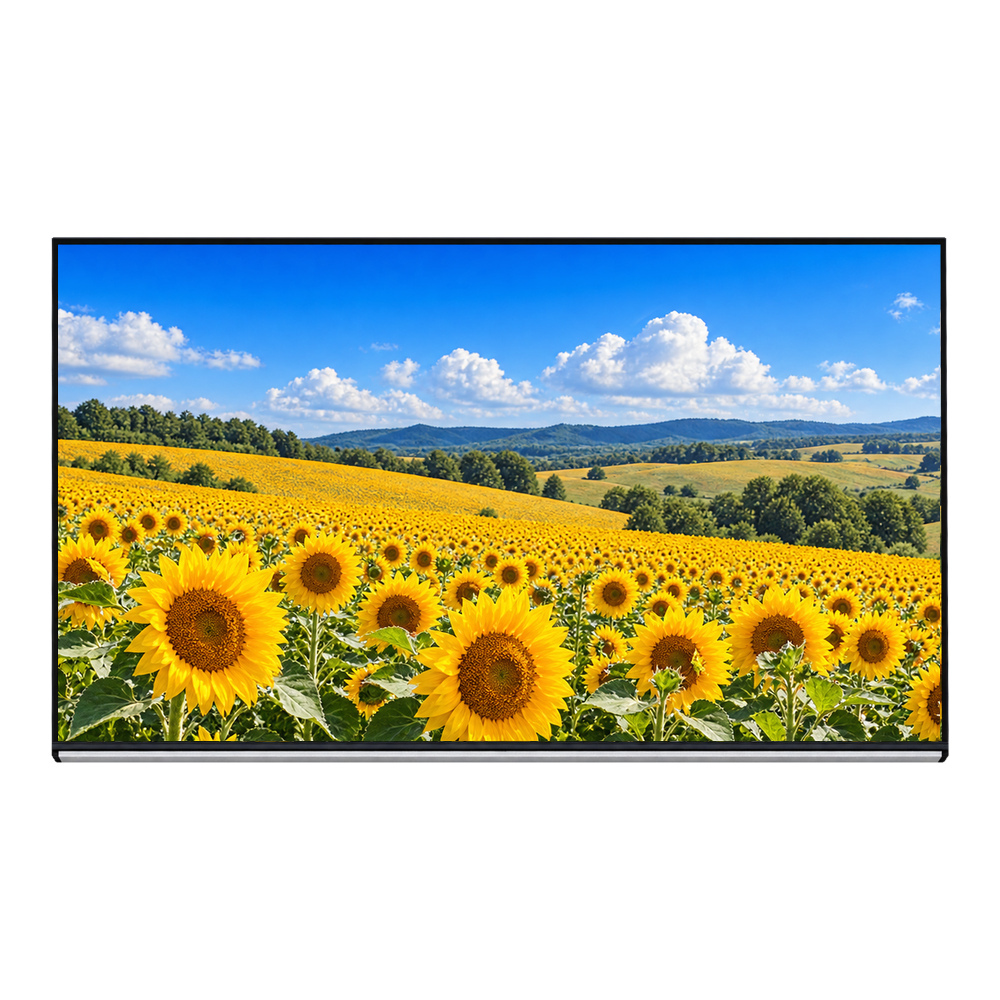

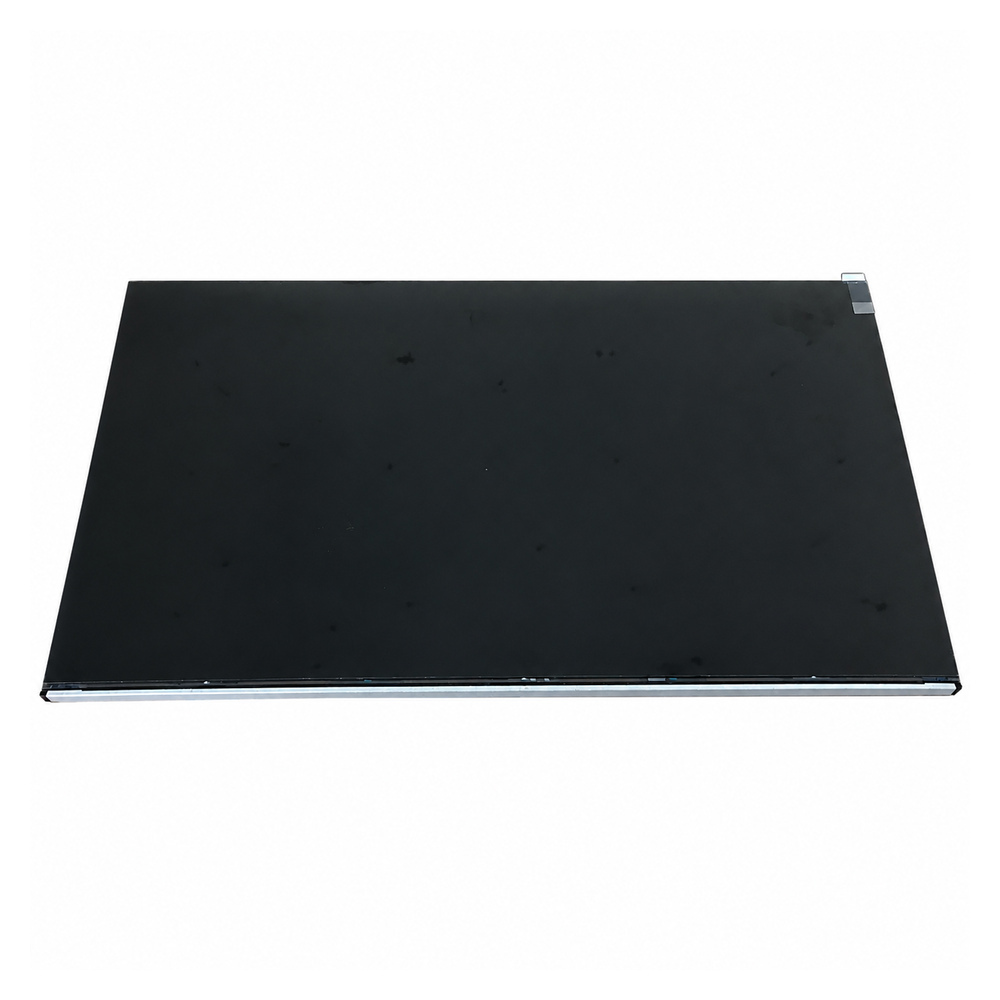

The Innolux M215HCA-L3B is a 21.5-inch AAS LCD panel with 1920 × 1080 resolution and a listed three-sided borderless design. Its 476.064 × 267.786 mm active area and 484.5 × 284.4 × 12.7 mm outline are useful starting points for a monitor design that aims to reduce the visible border around the image.
The panel provides 250 cd/m² typical brightness, 1000:1 typical contrast and 16.7 million colors. Its native input is dual-channel 8-bit LVDS through a 30-pin connector, with a 5.0 V typical supply. An external LED driver is required for the incorporated WLED backlight.
| Parameter | Value |
|---|---|
| Manufacturer | Innolux |
| Model number | M215HCA-L3B |
| Diagonal size | 21.5 inch |
| Panel construction | a-Si TFT-LCD, LCM |
| Resolution and aspect ratio | 1920(RGB)×1080, FHD, 16:9 |
| Pixel arrangement | RGB Vertical Stripe |
| Active area | 476.064×267.786 mm (H×V) |
| Outline dimensions | 484.5×284.4×12.7 mm (H×V×D) |
| Panel weight | 1.82±0.18 kg |
| Surface treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast ratio | 1000:1 (Typ.) (TM) |
| Viewing angles (L/R/U/D) | 89°/89°/89°/89° (Typ.)(CR≥10) |
| Response time (ms) | 8/7 (Typ.)(Tr/Td), 14 (Typ.)(G to G) |
| Preferred viewing direction | Symmetry |
| Display mode | AAS, Normally Black, Transmissive |
| Display colors and gamut | 16.7M, 72% NTSC |
| Reference applications | Desktop Monitor |
| Listed power consumption | 14 W (Max.) |

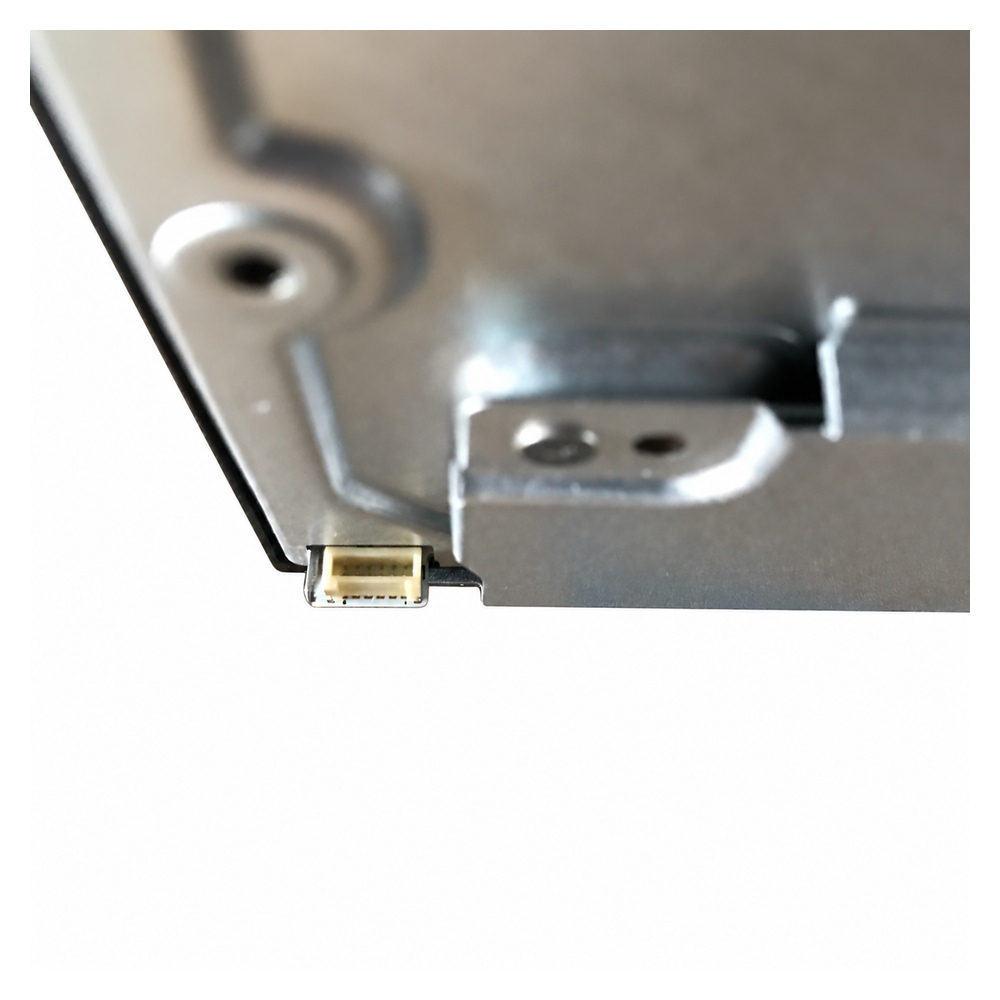

| Backlight and listed lifetime | 4 strings WLED, 30K hrs, Without Driver |
| Listed refresh rate | 75 Hz |
| Touchscreen configuration | Without |

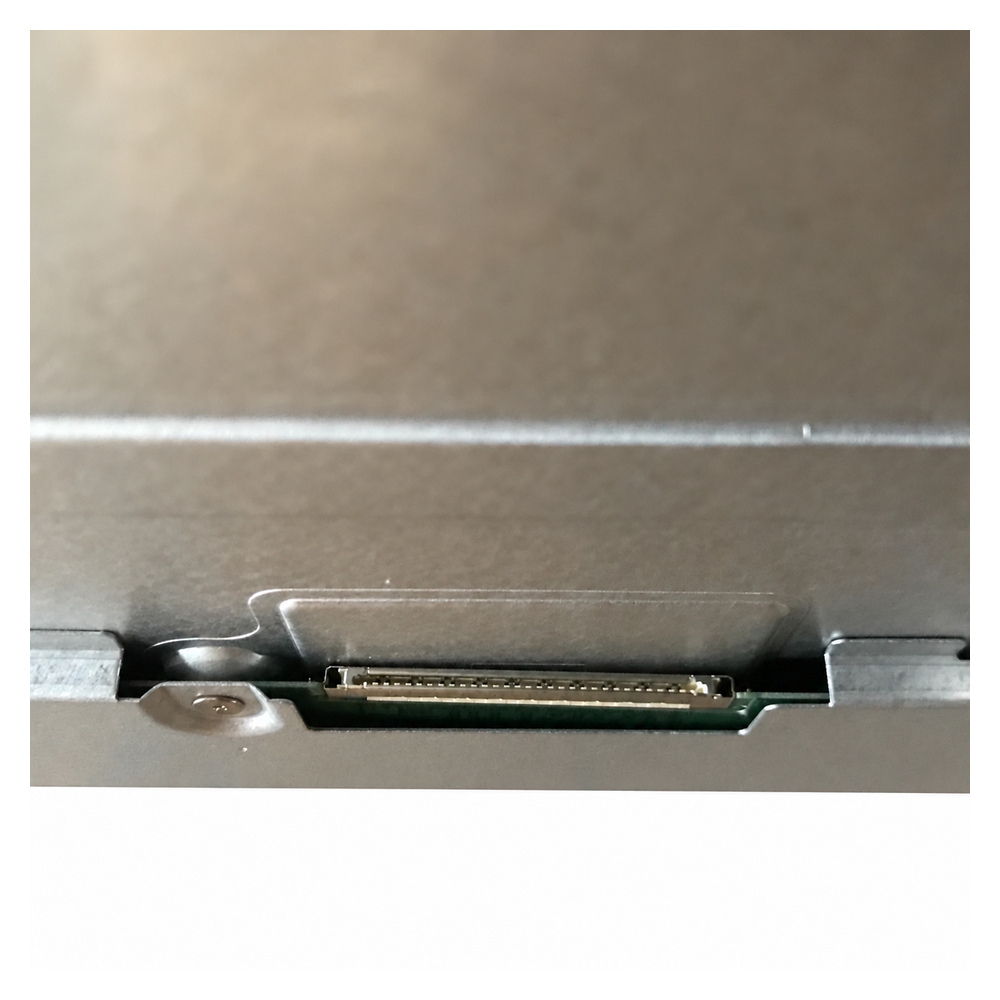

| Signal interface | LVDS (2 ch, 8-bit), 30 pins Connector |
| Typical panel supply | 5.0V (Typ.) |
| Operating and storage temperatures | Storage Temp. -20 ~ 60 °C; Operating Temp. 0 ~ 50 °C |
Typ. and Max. identify reference rating types. Listed refresh rates require compatible source timing and controller configuration. Confirm the applicable panel specification and test conditions for final integration.

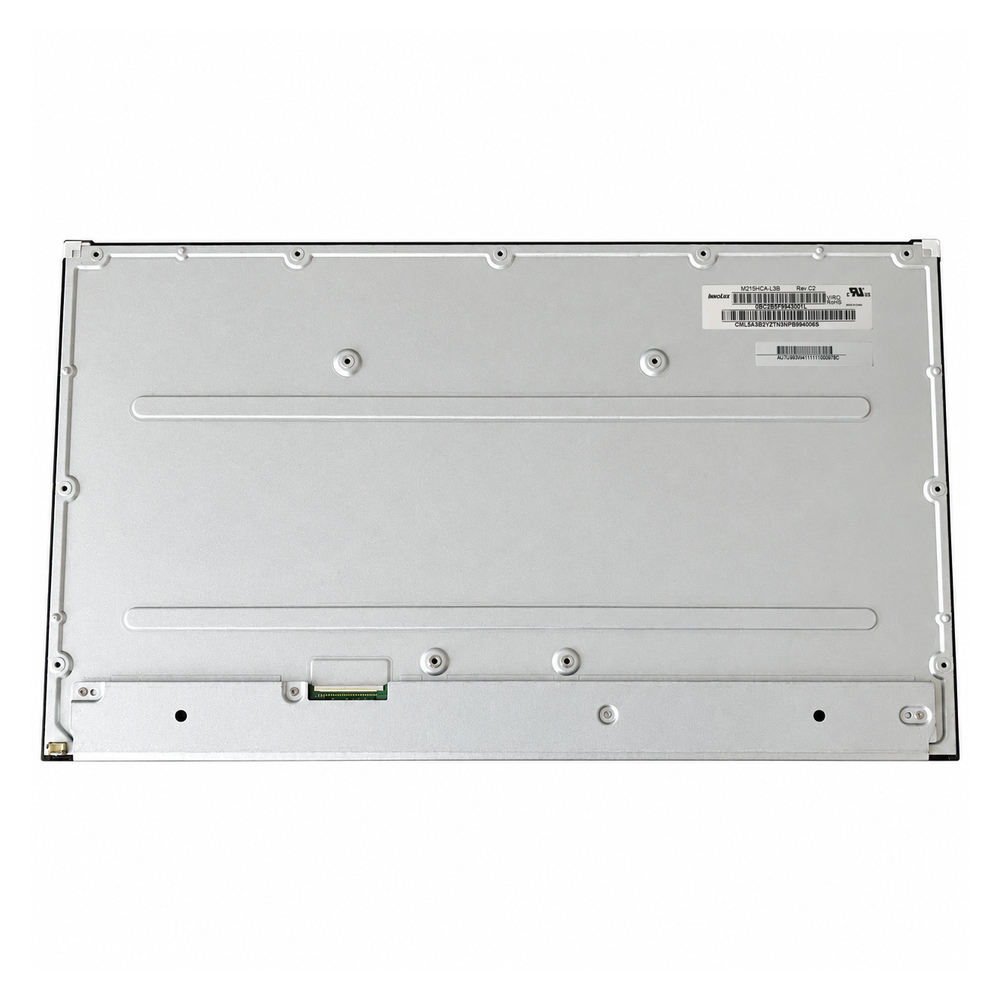

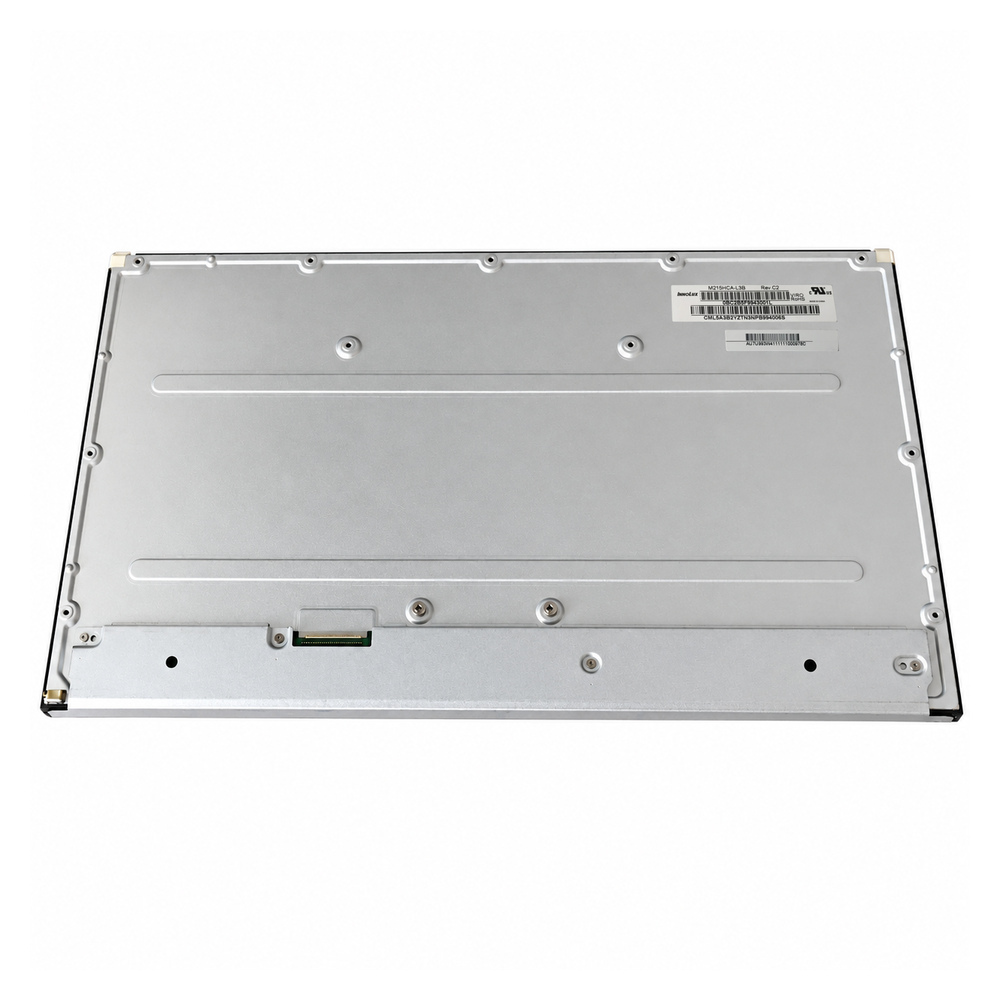

The reference identifies desktop monitors as the application. When evaluating a narrow-border assembly, check the mechanical drawing around the exposed edge, mounting regions and cable exit. The completed bezel and cover-glass design determine the final front appearance and support conditions.
The collected power figure is 14 W maximum. Review the panel signal connection and backlight load together with the selected controller. For an optional touch assembly, define the front-glass dimensions and keep its mounting loads within the requirements of the approved panel and assembly drawings.
XIANHENG supports LCD sourcing and custom display projects. Share your requirements so the quotation can cover the panel and the assembly work your project needs.
Browse our industrial LCD screen collection or review PCAP and resistive touch selection when planning the display assembly.
It describes the panel's listed design feature. The finished product still needs an appropriate mounting structure, edge protection and front design based on the mechanical drawing.
The reference identifies an AAS, normally black, transmissive LCD with 89° viewing-angle references in all four directions at CR ≥ 10. Use the applicable optical specification for final acceptance criteria.
The reference panel has no integrated touchscreen. A separate PCAP or resistive solution can be reviewed for image-area alignment, edge clearance, glass dimensions and controller requirements.

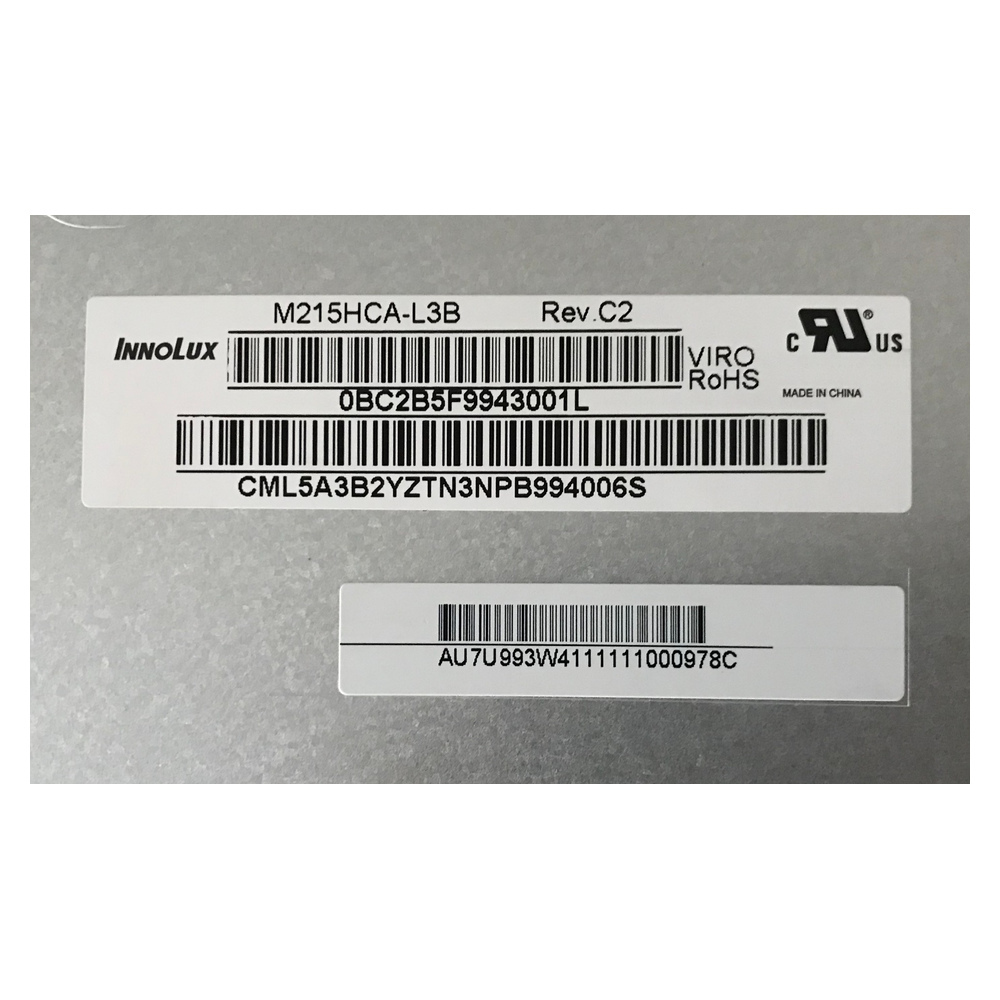

Use the L3B suffix and the approved mechanical drawing when defining bezel support, connector clearance and an optional touch assembly.
Send the full model and revision, required quantity, application, controller interface and touch or cover-glass requirements. Availability, pricing, delivery time and the proposed configuration will be confirmed in the quotation.
