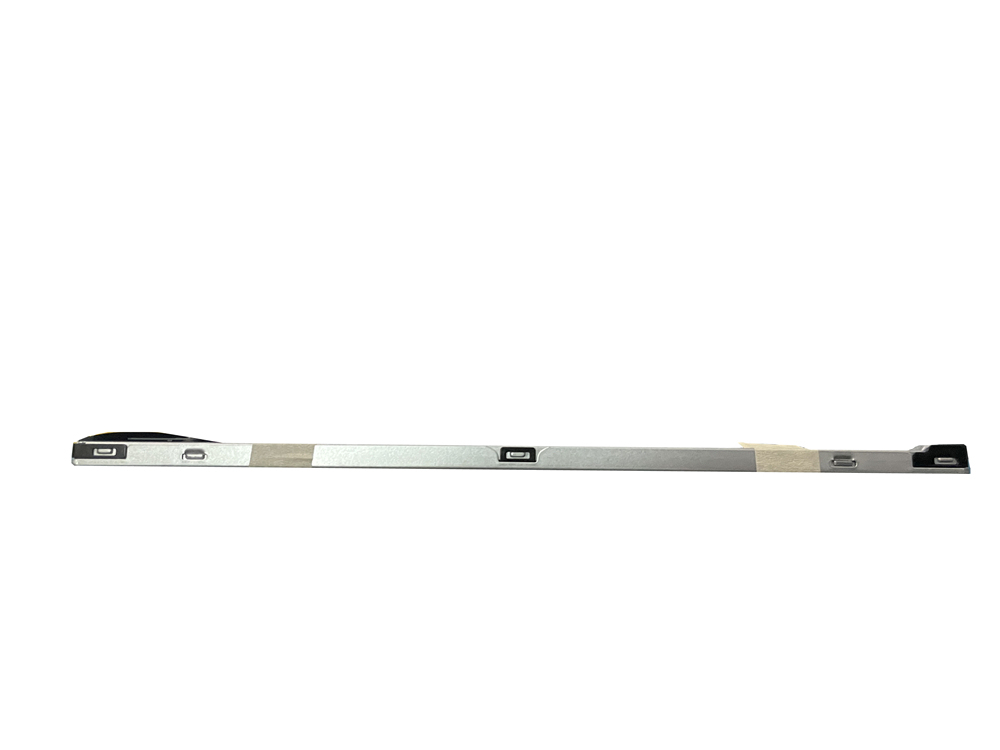

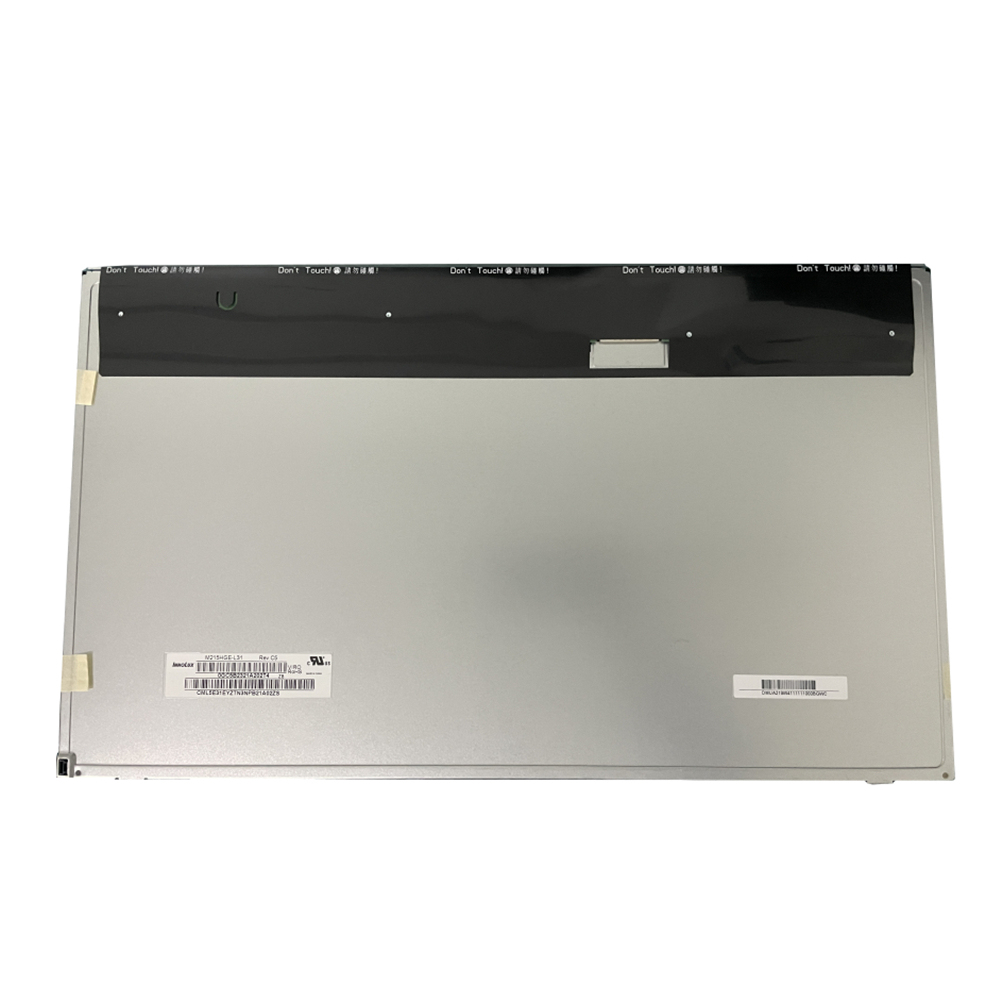

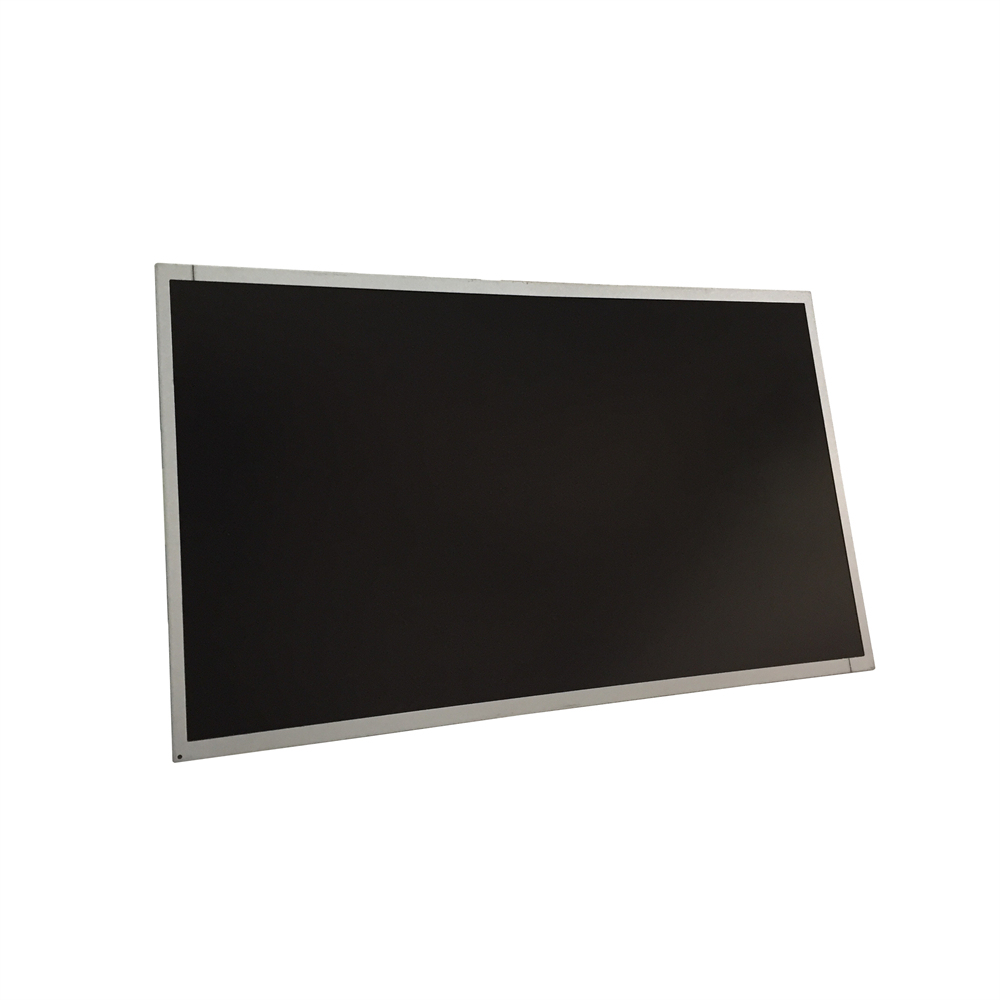

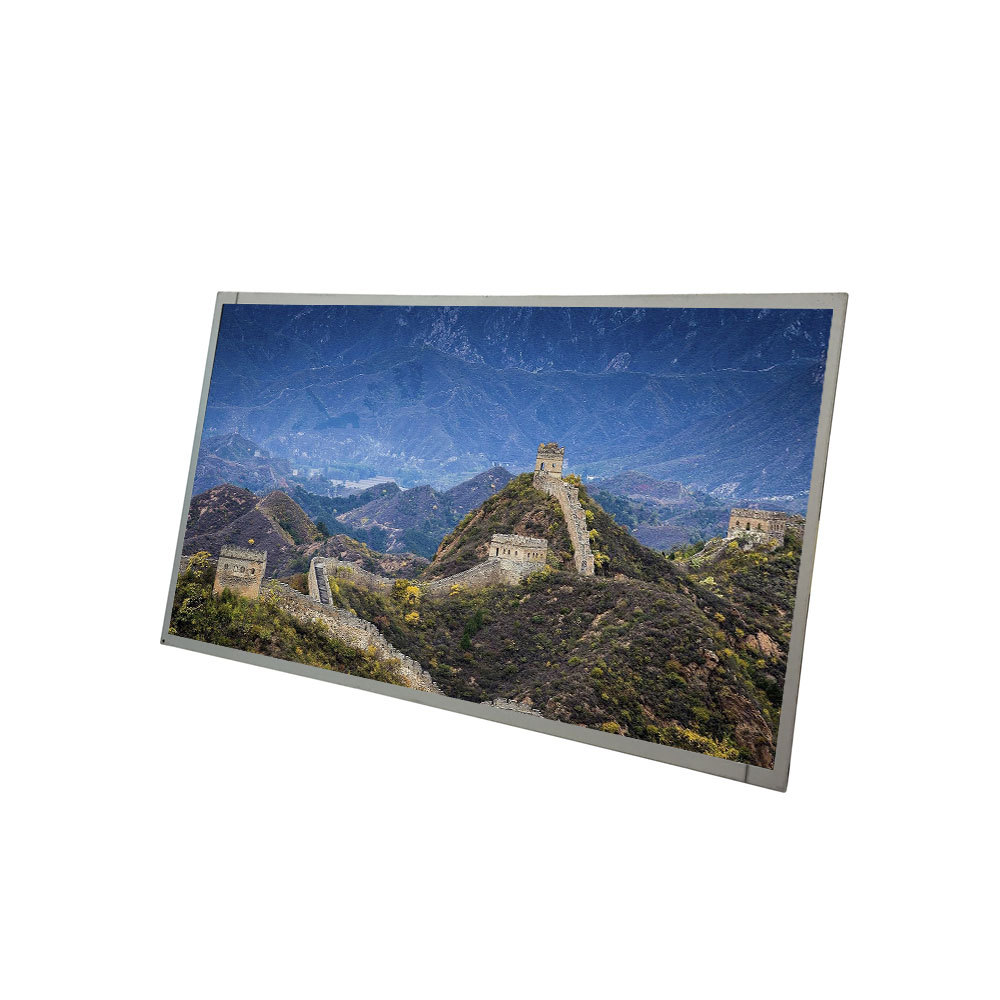

M215HGE-L31 innolux 21.5 inch TFT-LCD display panel module

Item No.: M215HGE-L31
M215HGE-L31 is a 21.5” TFT Liquid Crystal Display MNT module with WLED Backlight unit and 30 pins 2ch-LVDS interface. This module supports 1920 x 1080 Full HD mode and can display up to 16.7M colors. The converter module for Backlight is not built in.
Description Review
Description

M215HGE-L31 is a 21.5” TFT Liquid Crystal Display MNT module with WLED Backlight unit and 30 pins 2ch-LVDS interface. This module supports 1920 x 1080 Full HD mode and can display up to 16.7M colors. The converter module for Backlight is not built in.



 General Specs:

Panel Brand: Chimei Innolux

Panel Size: 21.5"

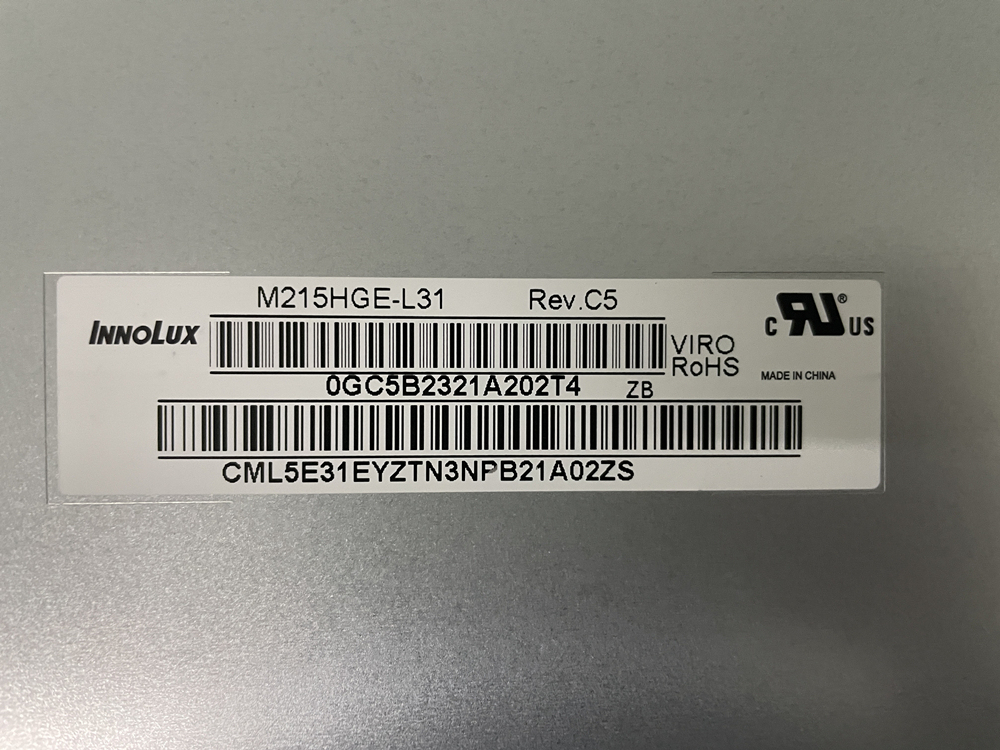

Panel Model: M215HGE-L31

Panel Type: a-Si TFT-LCD , LCM

Pixel Format: RGB Vertical Stripe

Resolution: 1920(RGB)×1080, FHD, 102PPI

Display Area: 476.64(W)×268.11(H) mm

Outline Size: 495.6(W)×292.2(H) ×11.5(D) mm

Brightness: 250 cd/m² (Typ.)

Viewing Angle: 85/85/80/80 (Typ.)(CR≥10) Left / Right / Up / Down

Best View on: 6 o'clock

Display Colors: 16.7M   72% NTSC

Frequency; 60Hz

Weight: 1.72±0.17Kgs

Bezel Opening: 479.8(W)×271.3(H) mm

Surface: Antiglare (Haze 25%), Hard coating (3H)

Contrast Ratio: 1000:1 (Typ.) (TM)

Display Mode: TN, Normally White, Transmissive

Response Time: 3.5/1.5 (Typ.)(Tr/Td)

Lamp Type: 4 strings WLED , 40K hours , Without Driver

Touch Screen: Without

Application: Desktop Monitor

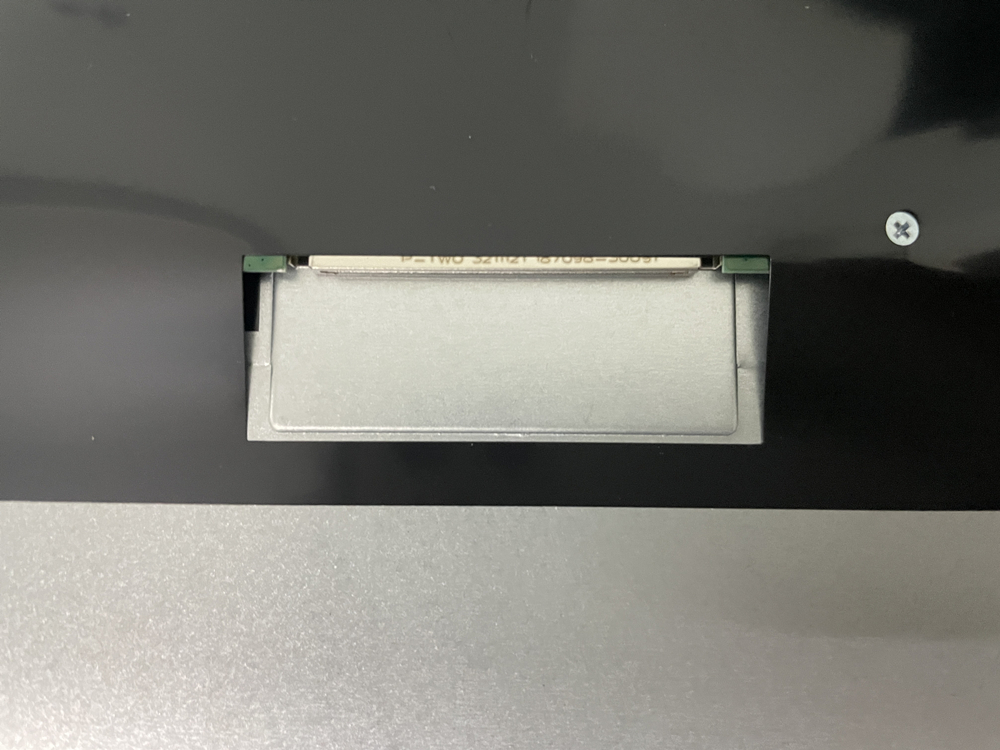

Signal Interface: LVDS (2 ch, 8-bit) , 30 pins Connector

Input Voltage: 5.0V (Typ.)

Environment: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C







​​​​​​
