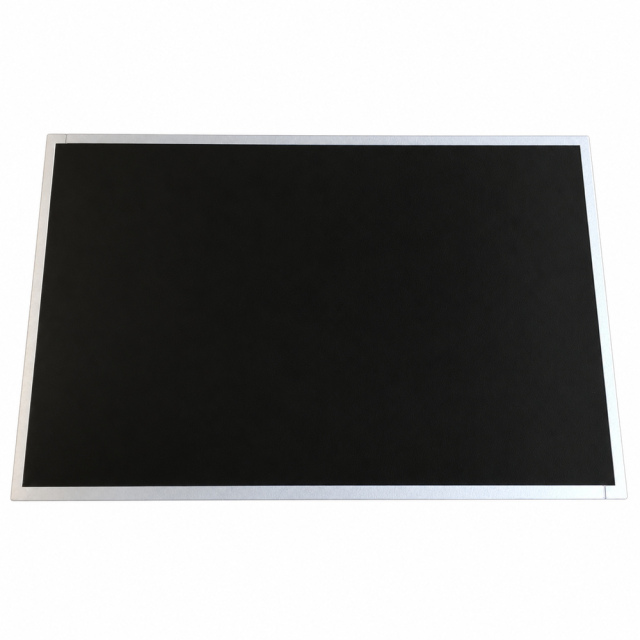

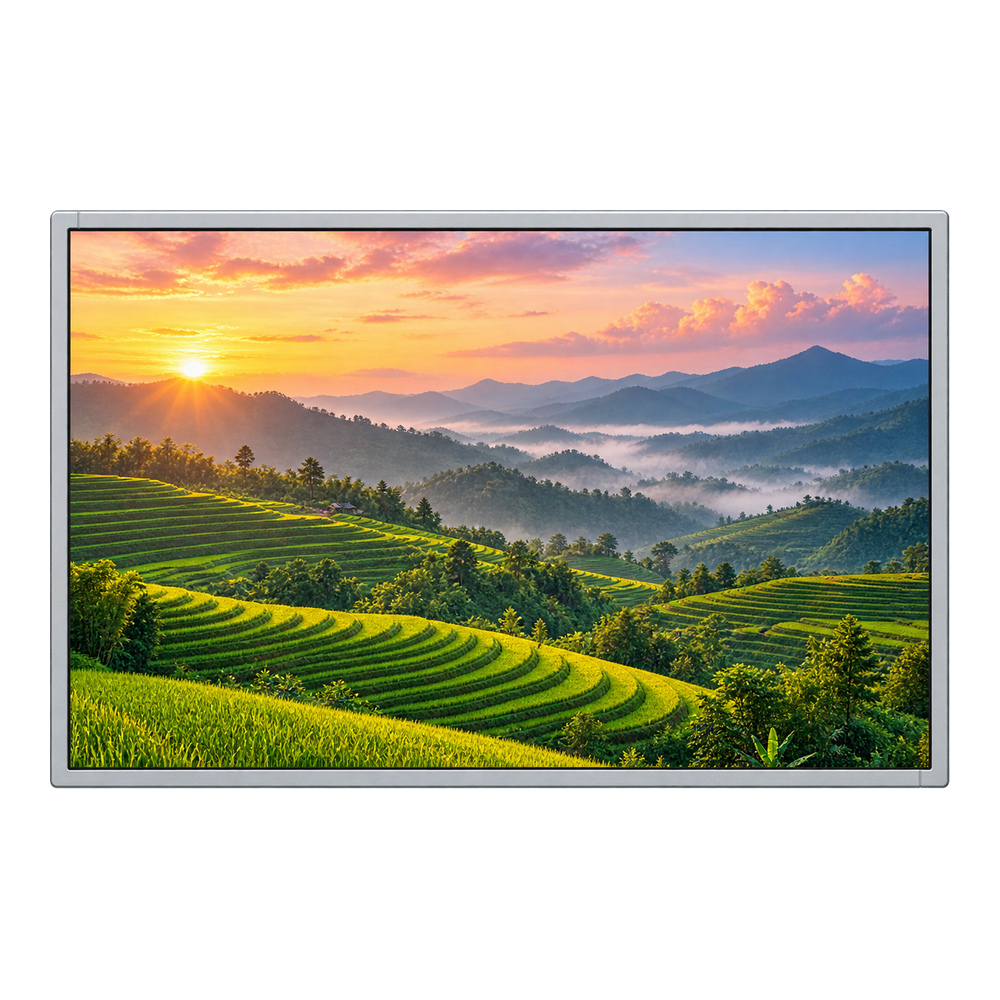

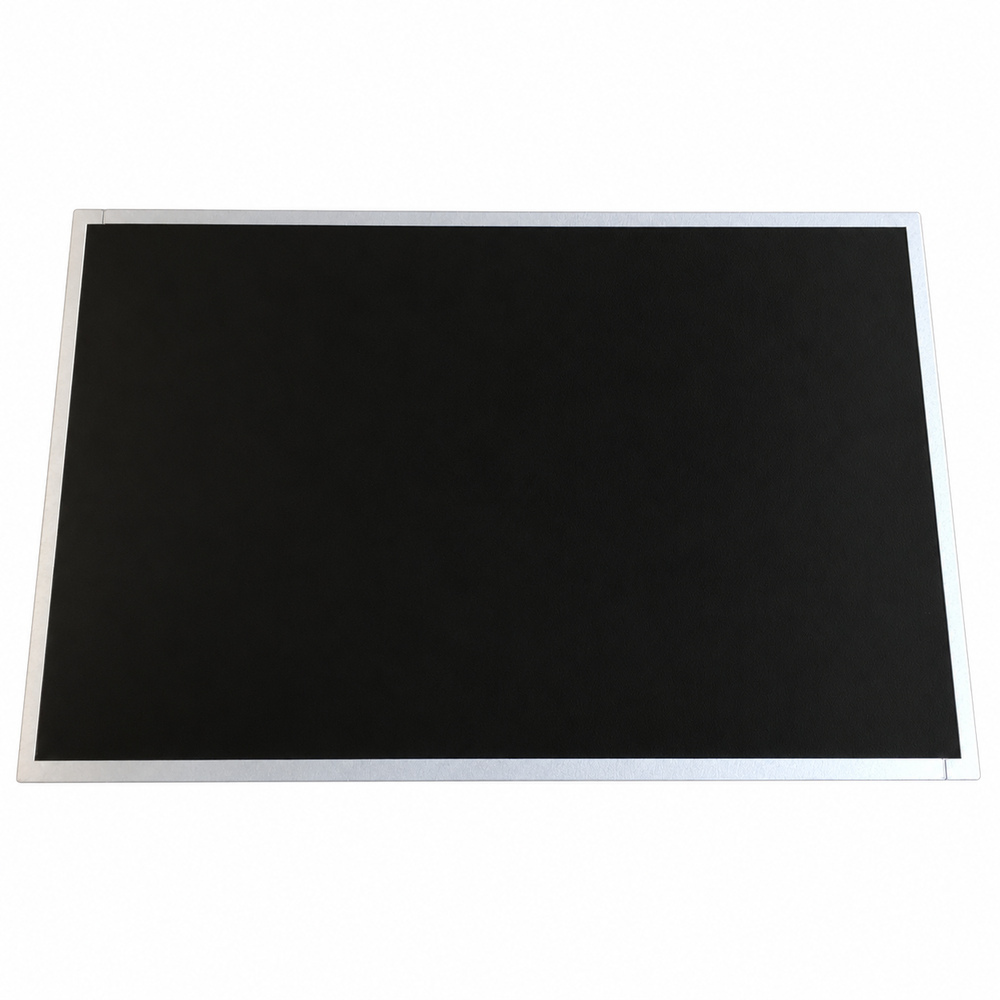

The Chimei Innolux M220ZGE-L20 is a 22.0-inch TN LCD module with 1680 × 1050 WSXGA+ resolution and a 16:10 image format. It is a reference option for desktop-monitor repair or assembly projects that need to retain this resolution and screen proportion.
The collected data lists 250 cd/m² typical brightness, 1000:1 typical contrast and an antiglare surface with 25% haze and 3H hard coating. Part of this reference comes from the manufacturer's preliminary Ver1.0 datasheet dated June 2011, so the required production revision should be identified before a replacement is approved.
| Parameter | Value |
|---|---|
| Manufacturer | Chimei Innolux |
| Model number | M220ZGE-L20 |
| Diagonal size | 22.0 inch |
| Panel construction | a-Si TFT-LCD, LCM |
| Resolution and aspect ratio | 1680(RGB)×1050, WSXGA+, 16:10 |
| Pixel arrangement | RGB Vertical Stripe |
| Active area | 473.76×296.1 mm (H×V) |
| Outline dimensions | 493.7×320.1×11.5 mm (H×V×D); depth Max. |
| Panel weight | 2.10/2.25 kg (Typ./Max.) |

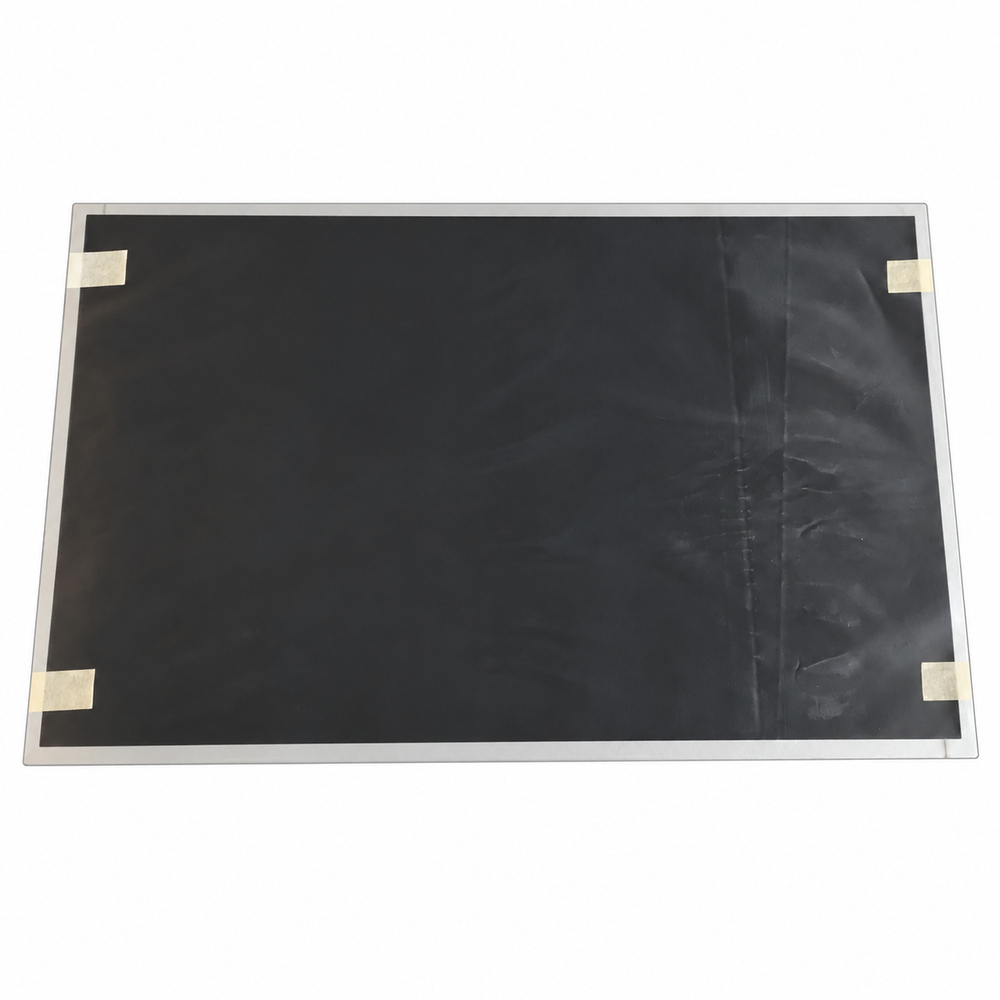

| Surface treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast ratio | 1000:1 (Typ.) (TM) |
| Viewing angles (L/R/U/D) | 85°/85°/80°/80° (Typ.)(CR≥10) |
| Response time (ms) | 1.3/3.7 (Typ.)(Tr/Tf) |
| Preferred viewing direction | Confirm for the required revision |
| Display mode | TN, Normally White, Transmissive |
| Display colors and gamut | 16.7M, 72% NTSC |
| Reference applications | Desktop Monitor |
| Listed power consumption | 15.76 W (Max.) |

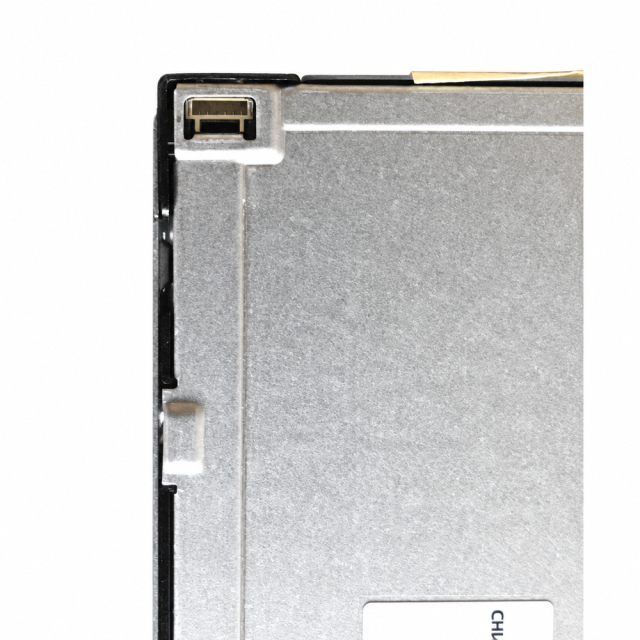

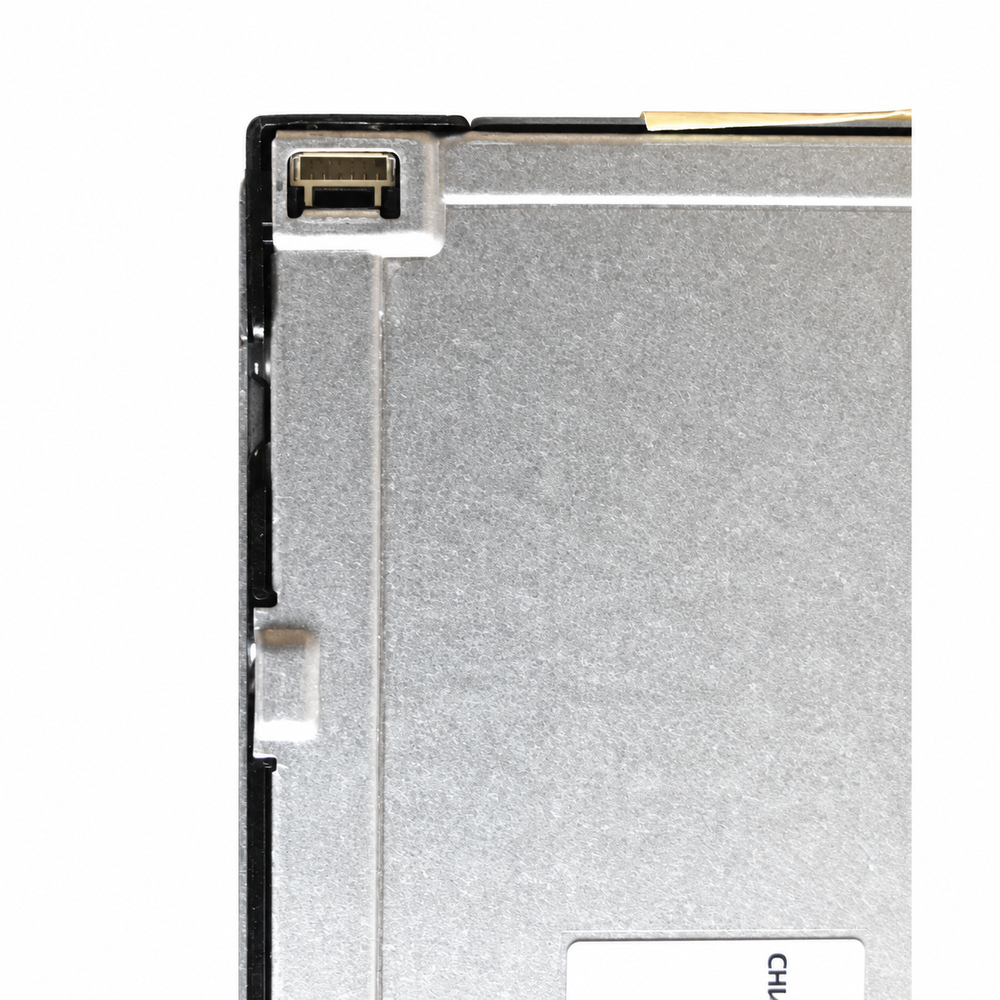

| Backlight and listed lifetime | 12S4P WLED, 40K hrs, Without Driver |
| Listed refresh rate | 75 Hz |
| Touchscreen configuration | Confirm configuration for the required revision |
| Signal interface | LVDS (2 ch, 8-bit), 30 pins Connector |
| Typical panel supply | 5.0V (Typ.) |
| Operating and storage temperatures | Storage Temp. -20 ~ 60 °C; Operating Temp. 0 ~ 50 °C |
Typ. and Max. identify reference rating types. Listed refresh rates require compatible source timing and controller configuration. Confirm the applicable panel specification and test conditions for final integration.
The listed application is desktop monitors. Its 473.76 × 296.1 mm active area should be compared with the existing viewing window, while the 493.7 × 320.1 mm outline provides a reference for enclosure width and height. Preserve the native 1680 × 1050 format when evaluating the controller and image-scaling behavior.

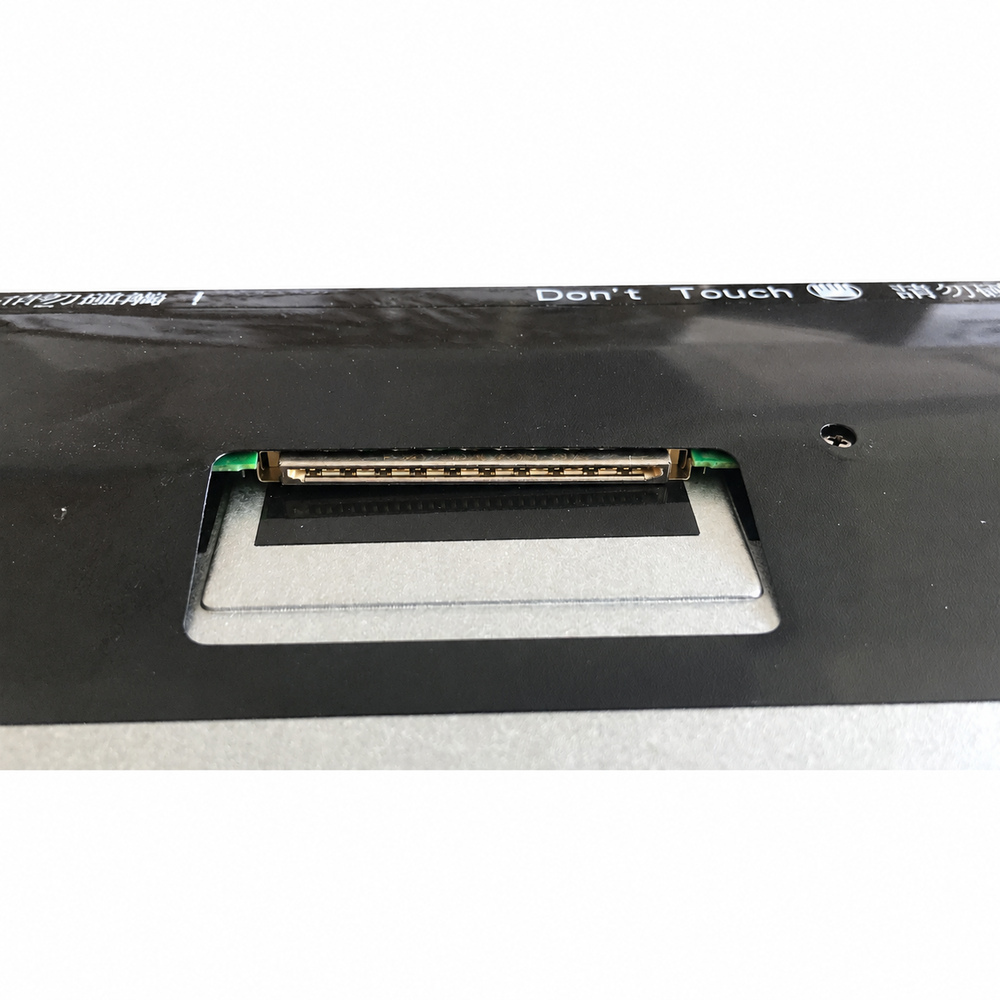

The collected interface reference is dual-channel 8-bit LVDS with a 30-pin connector and a 5.0 V typical supply. The listed maximum depth is 11.5 mm, with 11 mm typical in the older datasheet. Confirm the actual revision, connector drawing, viewing direction and touch configuration with the supplier before specifying a kit.
XIANHENG supports LCD sourcing and custom display projects. Share your requirements so the quotation can cover the panel and the assembly work your project needs.
Browse our industrial LCD screen collection or review PCAP and resistive touch selection when planning the display assembly.

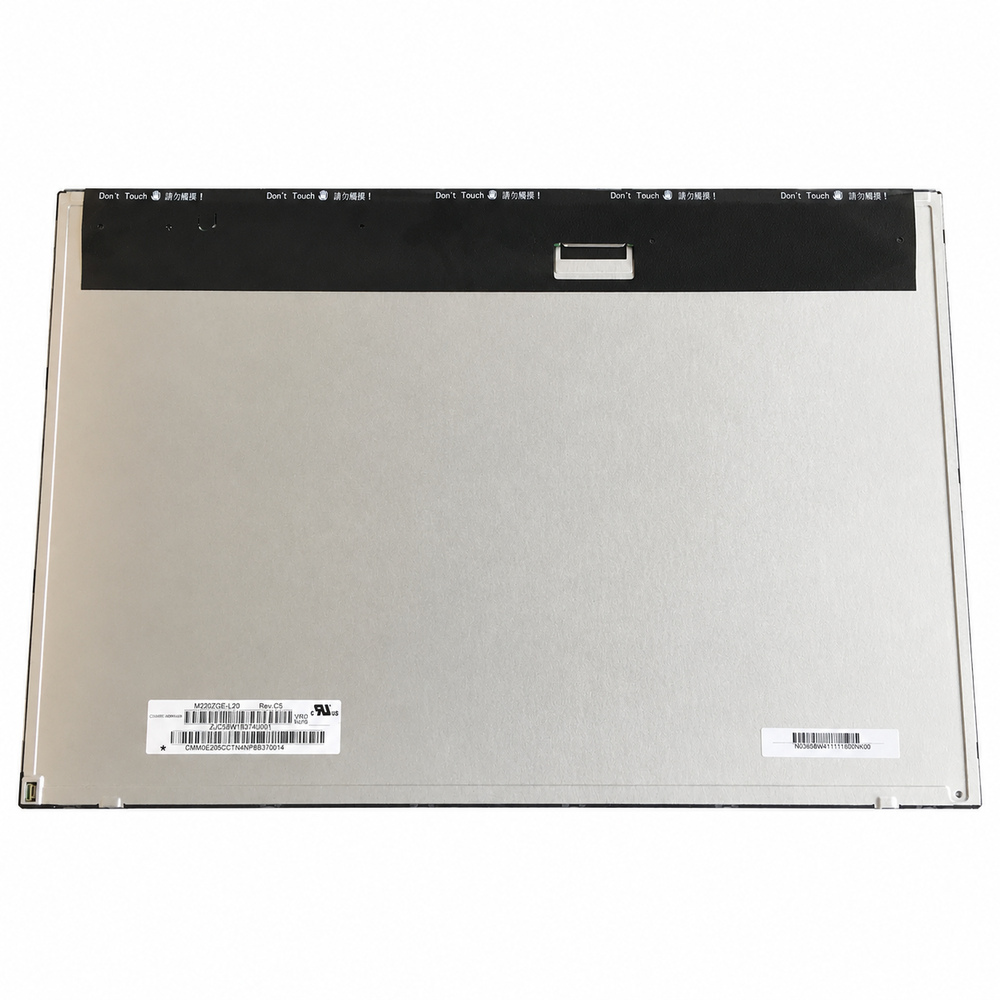

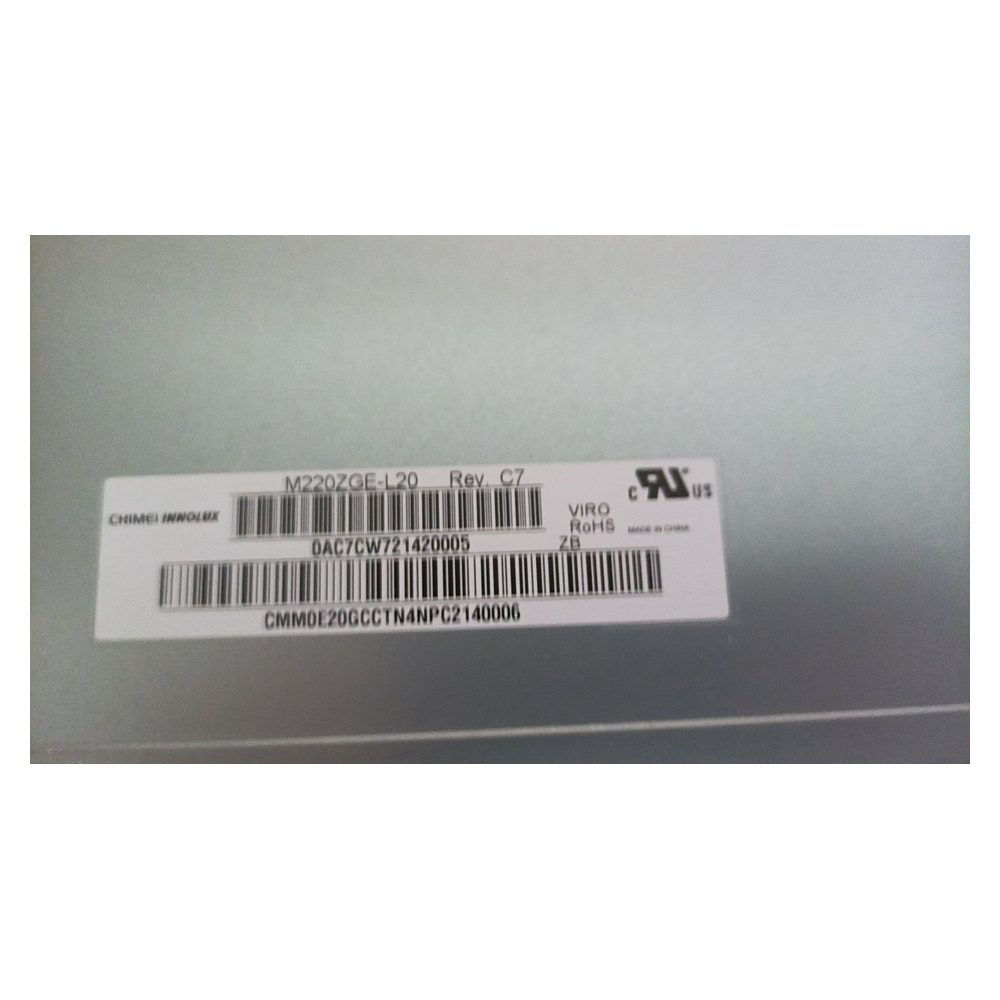

The collected reference is based partly on the preliminary Ver1.0 manufacturer datasheet from June 2011. It does not establish Rev.C5 specifications. Send the required panel-label revision for a matching specification review.
The touchscreen configuration and preferred viewing direction remain to be confirmed for the required revision. Include any touch requirements in the inquiry so the assembly scope can be established before quotation.
Compare native resolution, active area, outline, mounting points, panel voltage, connector pin assignment and backlight requirements. A shared 22-inch diagonal alone does not establish replacement compatibility.
Preliminary reference: manufacturer Ver1.0 dated June 2011, supplemented by the same-model listing. Confirm the requested revision, preferred viewing direction and touchscreen configuration before integration.
Send the full model and revision, required quantity, application, controller interface and touch or cover-glass requirements. Availability, pricing, delivery time and the proposed configuration will be confirmed in the quotation.
