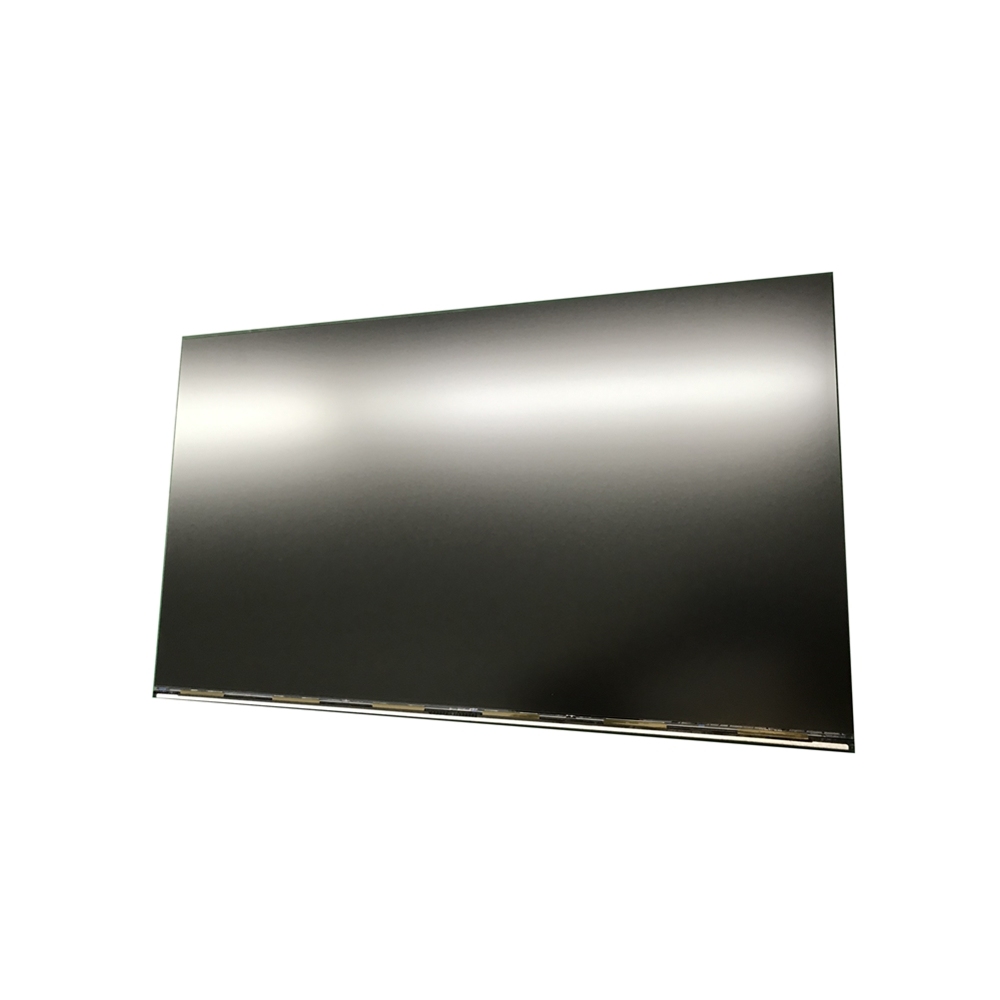

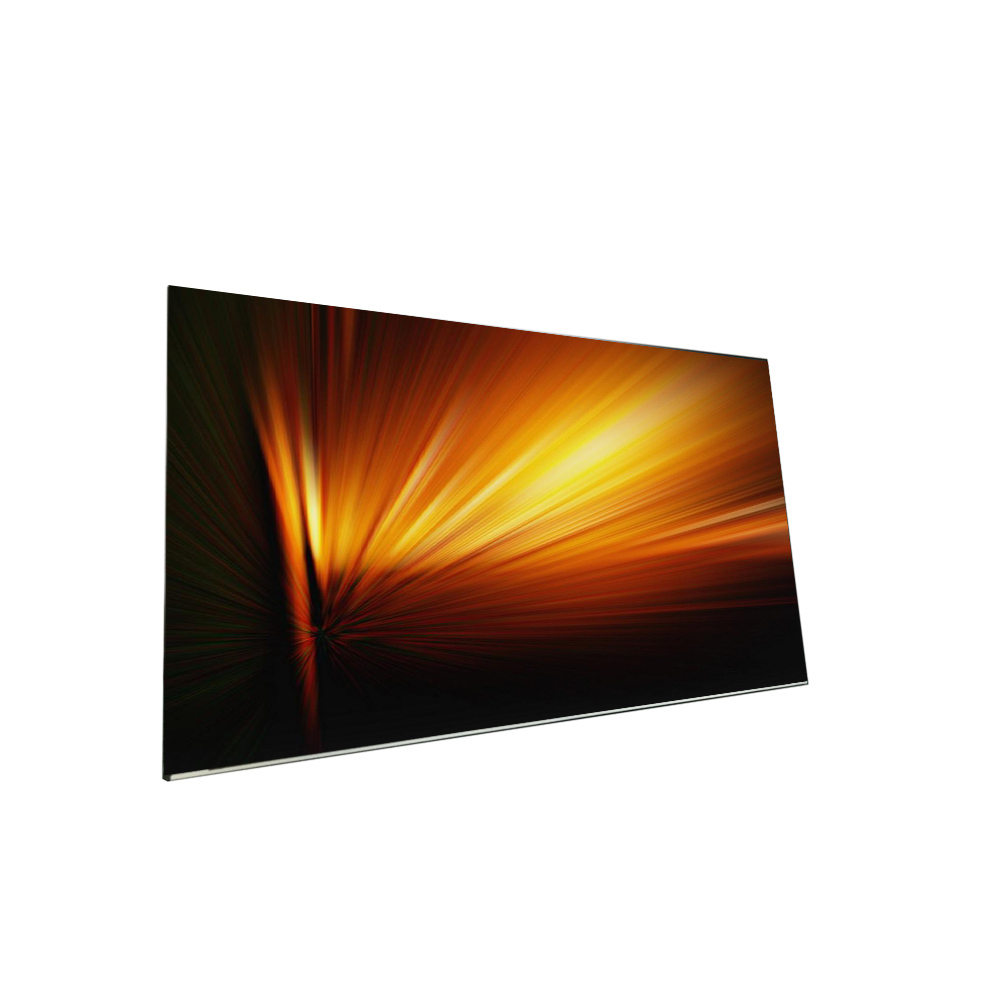

M238HCA-L3E innolux 23.8 inch narrow-edged screen TFT-LCD display module

Item No.: M238HCA-L3E
M238HCA-L3E is a 23.8" diagonal a-Si TFT-LCD display panel product from Innolux Corporation with an integral WLED backlight system, without backlight driver, without touch screen.
Description Review
Description

M238HCA-L3E is a 23.8" diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, without backlight driver, without touch screen.

It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: 3-side boderless, WLED Backlight. Based on its features, Panelook recommend that this model be applied to Desktop Monitor etc.

If you want to embed the LCM in your future product, Panelook strongly recommend that you should contact with Innolux or XIANHENG TECH to learn lateast production and specification detail of M238HCA-L3E.

General Specification

Brand: Innolux

Model: M238HCA-L3E

Diagonal Size: 23.8 inch

Type: a-Si TFT-LCD , LCM

Pixel Format: 1920(RGB)×1080  [FHD]  92PPI

Configuration: RGB Vertical Stripe

Active Area: 527.04(H)×296.46(V) mm

Outline Dim.: -

Bezel Area: -

Treatment: Hard coating (3H)

Luminance: 250 cd/m² (Typ.)

Contrast Ratio: 1000:1 (Typ.) (TM)

View Direction: Symmetry

Response Time: 14 (Typ.)(G to G)

Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Operating Mode: AAS, Normally Black, Transmissive

Support Color: 16.7M   72% NTSC

Light Source: WLED , W/O Driver

Weight: -

Designed For: Desktop Monitor

Frame Rate: 60Hz

Touch Panel: Without

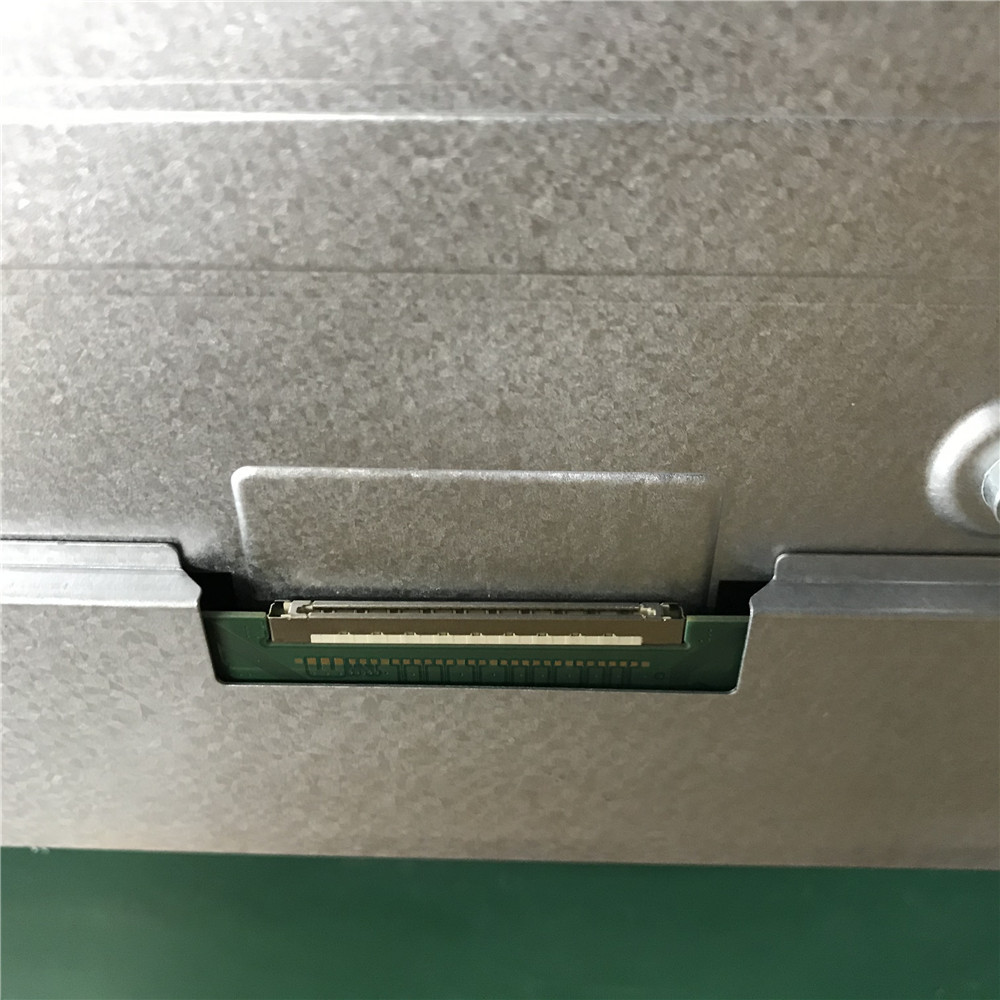

Interface Type: LVDS (2 ch, 8-bit) Connector

Power Supply: 5.0V (Typ.)

Environment: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C







Review
Zack
Mar 08, 2022
The sample test meets the requirements and will be purchased in bulk soon.
