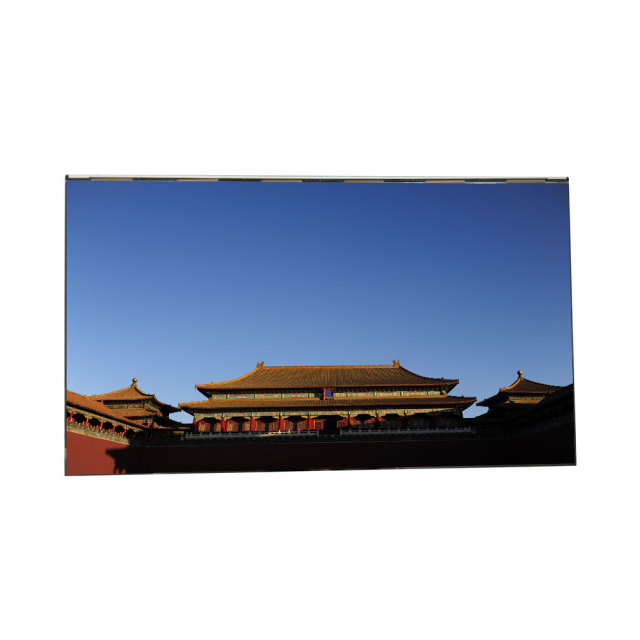

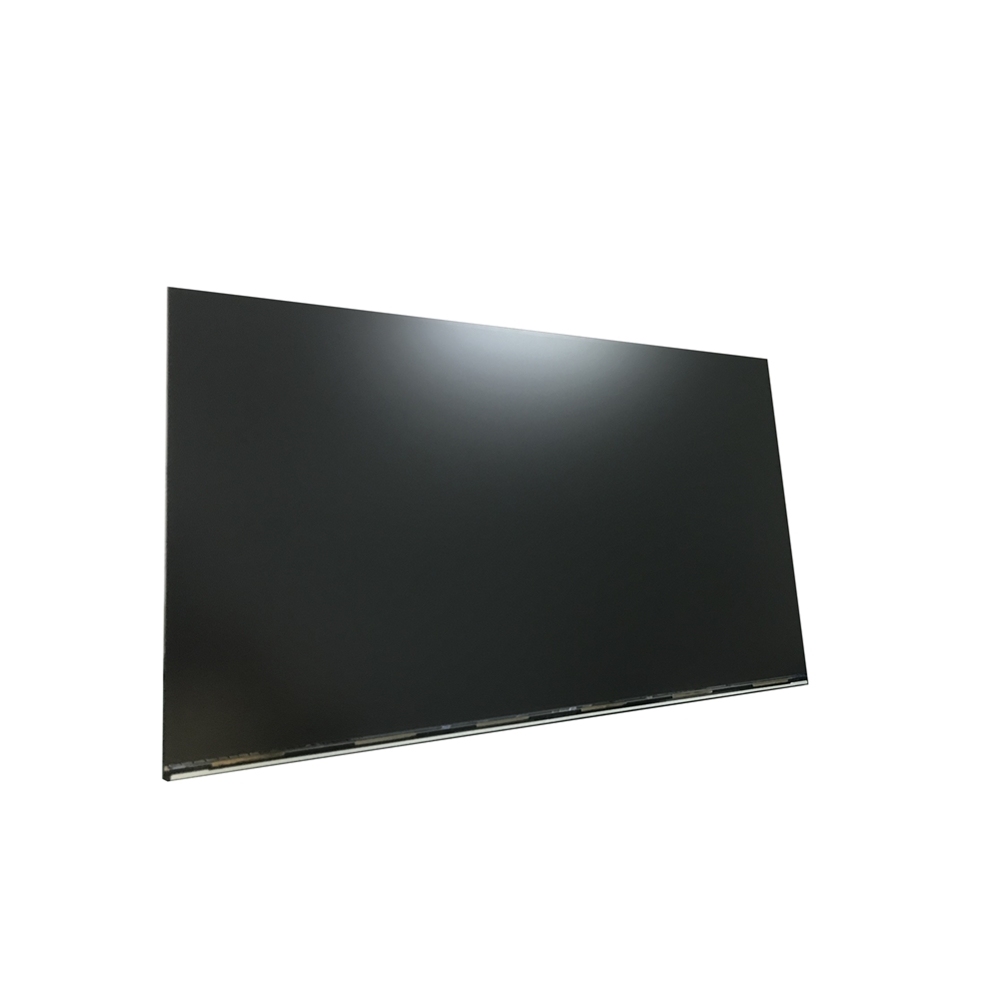

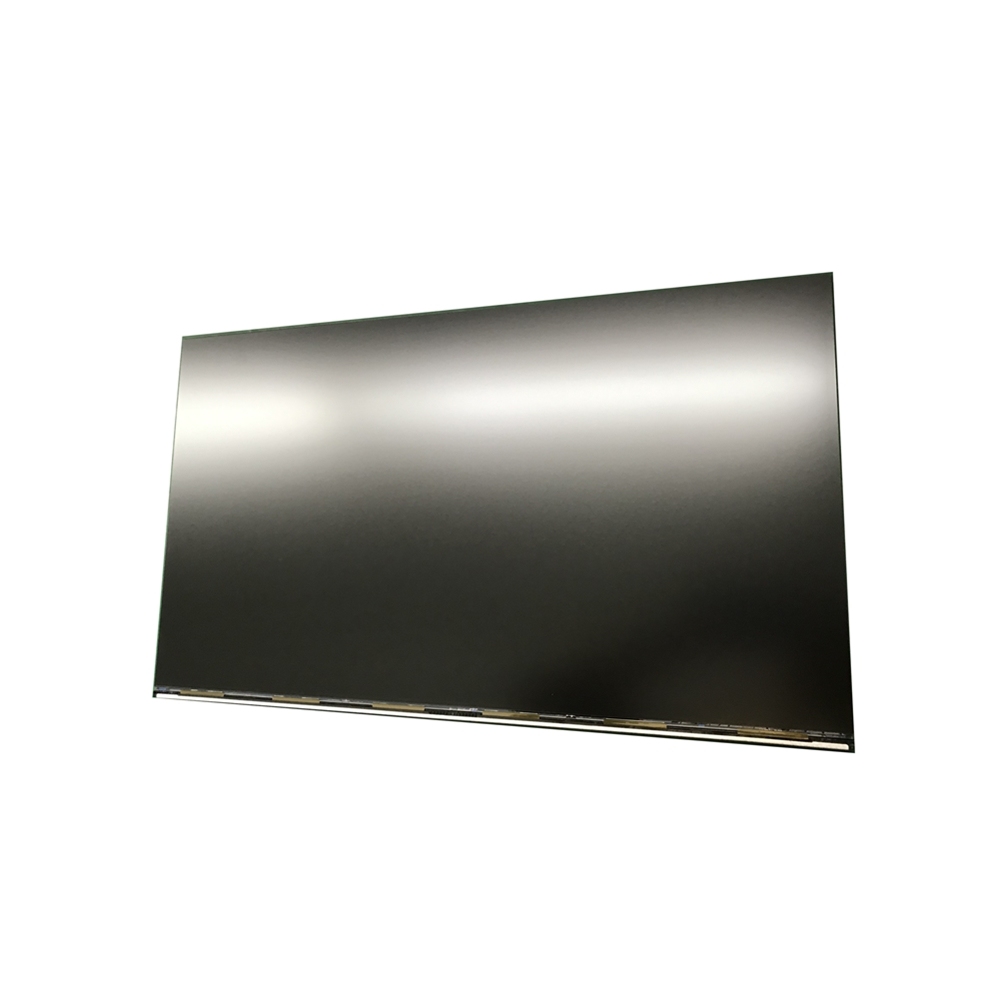

M238HCA-LCZ innolux 23.8 inch narrow-edged screen TFT-LCD display module

No.M238HCA-LCZ
The M238HCA-LCZ is a 23.8 inch diagonal a-Si TFT-LCD display panel product from Innolux Corporation with an integral WLED backlight system, without backlight driver, without touch screen.
  • M238HCA-LCZ innolux 23.8 inch narrow-edged screen TFT-LCD display module
  • M238HCA-LCZ innolux 23.8 inch narrow-edged screen TFT-LCD display module
  • M238HCA-LCZ innolux 23.8 inch narrow-edged screen TFT-LCD display module
  • M238HCA-LCZ innolux 23.8 inch narrow-edged screen TFT-LCD display module
  • M238HCA-LCZ innolux 23.8 inch narrow-edged screen TFT-LCD display module
Description

The M238HCA-LCZ is a 23.8 inch diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, without backlight driver, without touch screen.

It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: sRGB, 3-side boderless, WLED Backlight, Reverse I/F, Matte , 3-side Borderless, LBL, TCO 8.0ompliance. Based on its features, Panelook recommend that this model be applied to Desktop Monitor, Gaming etc.

If you want to embed M238HCA-LCZ LCM in your future product, we strongly recommend that you should contact with Innolux or XIANHENG TECH to learn lateast production and specification detail.

Brand Innolux
Model M238HCA-LCZ
Diagonal Size 23.8 inch
Type a-Si TFT-LCD, LCM
Pixel Format 1920(RGB)×1080  [FHD]  92PPI
Configuration RGB Vertical Stripe
Active Area 527.04(H)×296.46(V) mm
Outline Dim. 535(H)×313(V) ×12.7(D) mm
Bezel Area -
Treatment Antiglare (Haze 25%), Hard coating (3H)
Luminance 250 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
View Direction Symmetry
Response Time 14 (Typ.)(G to G)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode AAS, Normally Black, Transmissive
Support Color 16.7M   99% sRGB
Light Source WLED  [4 strings] , 30K hours , W/O Driver
Weight 2.23/2.34Kgs (Typ./Max.)
Designed For Desktop Monitor Gaming
Frame Rate 60Hz
Touch Panel Without

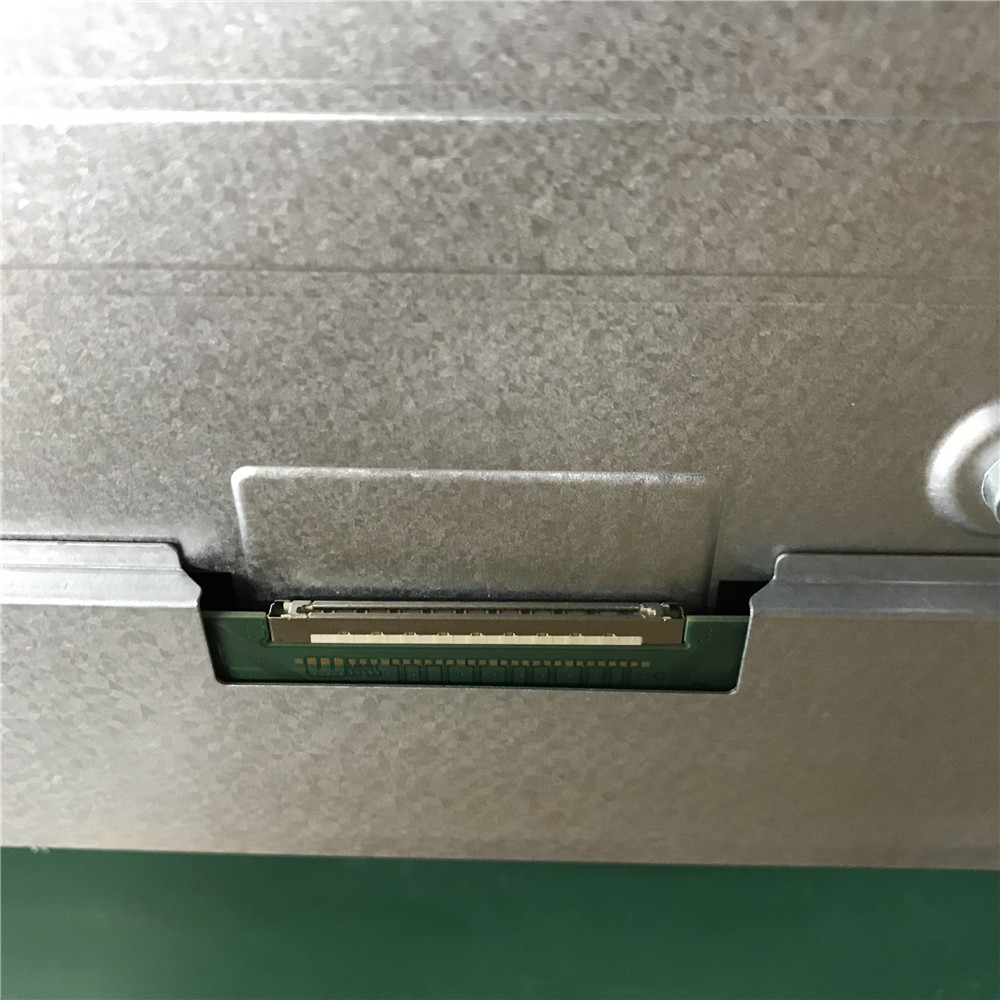

Interface Type LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply 5.0V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
