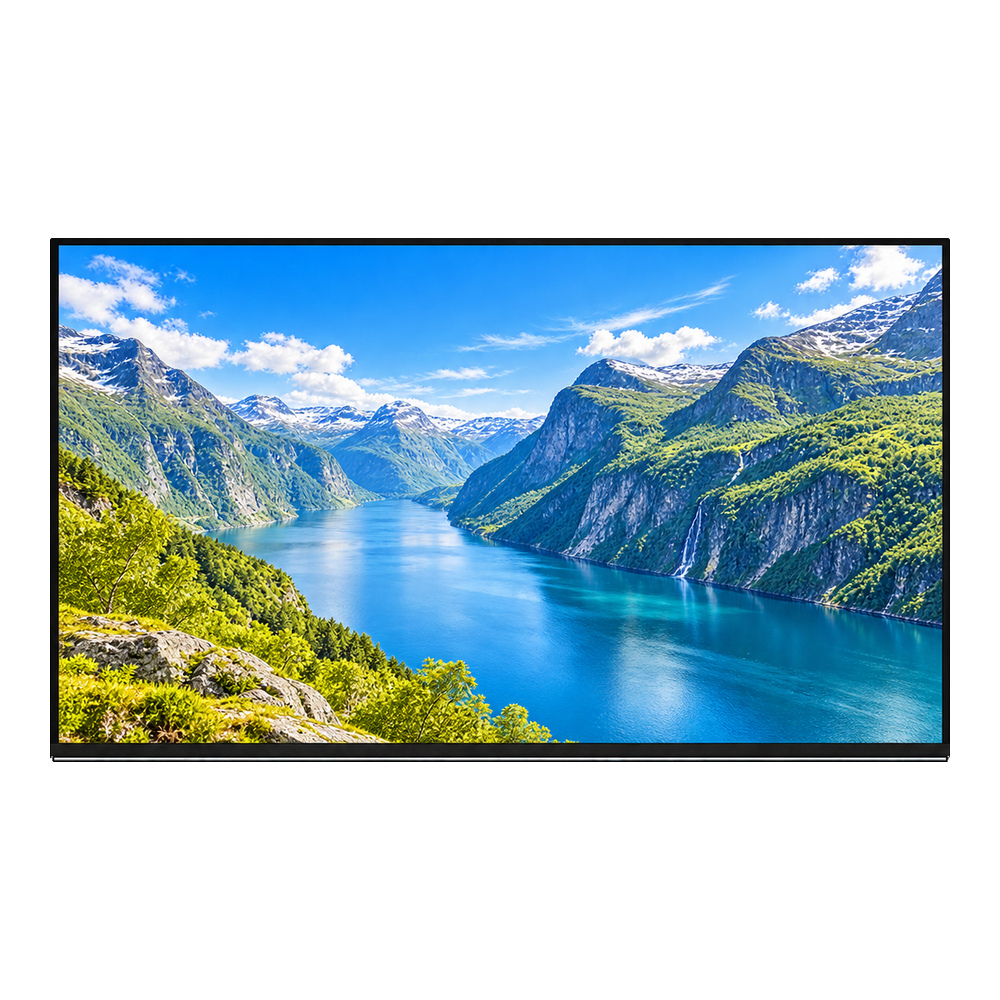

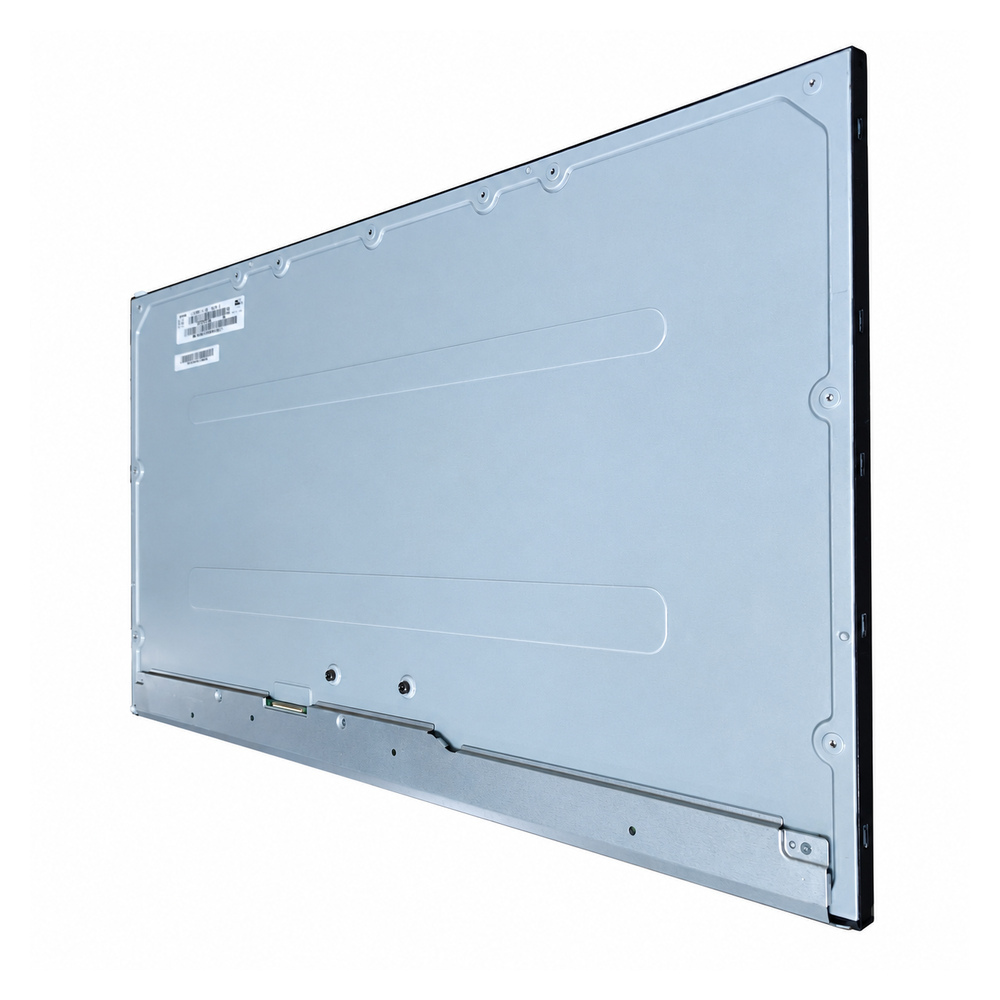

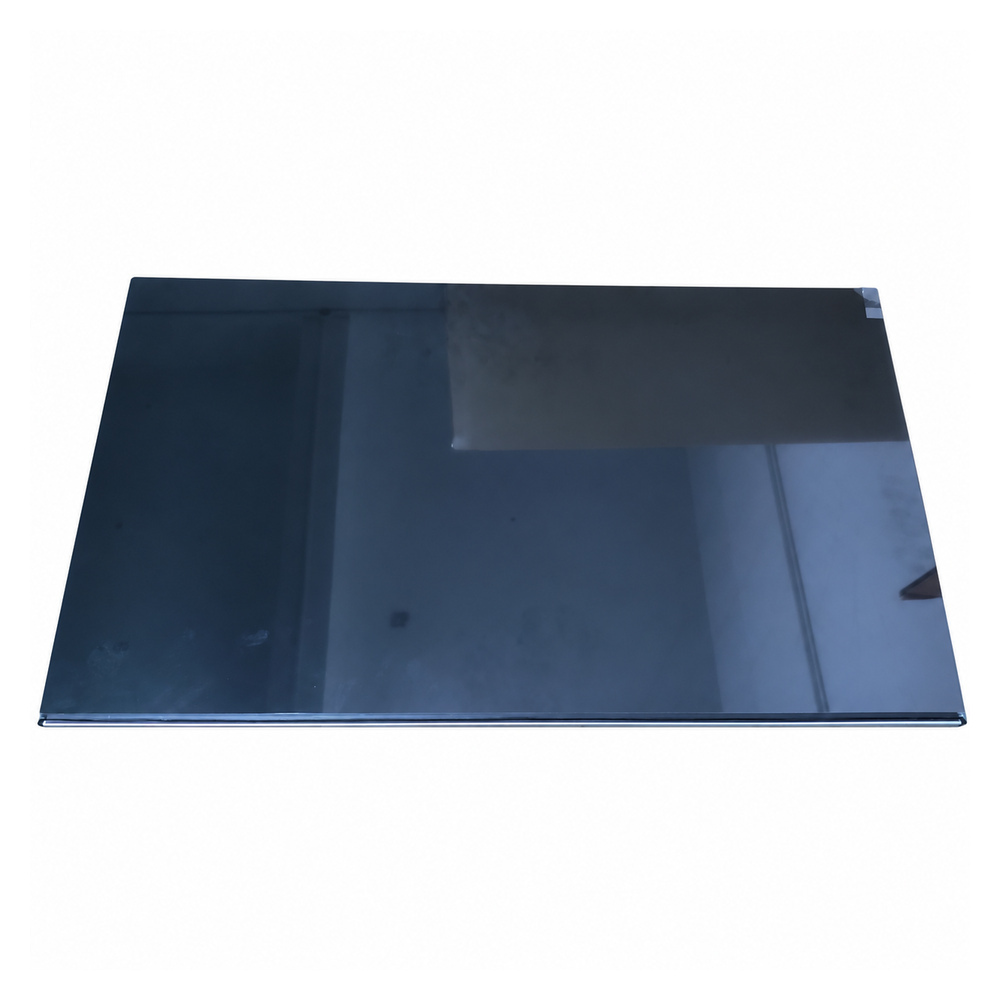

The Innolux M270HCJ-L8B is a 27.0-inch AAS LCD module with 1920 × 1080 resolution and a listed 100 Hz refresh rate. Its 1300:1 typical contrast ratio, 250 cd/m² typical luminance and 597.888 × 336.312 mm active area define a desktop-monitor option with different optical and timing references from the LCB suffix.
The reference lists 16.7 million colors, 100% sRGB coverage, a low-blue-light feature and a three-sided borderless design. A 30-pin, 1.0 mm-pitch connector carries dual-channel 8-bit LVDS, with a 5.0 V typical panel supply. The WLED backlight requires a separate driver.
| Parameter | Value |
|---|---|
| Manufacturer | Innolux |
| Model number | M270HCJ-L8B |
| Diagonal size | 27.0 inch |
| Panel construction | a-Si TFT-LCD, LCM |
| Resolution and aspect ratio | 1920(RGB)×1080, FHD, 16:9 |
| Pixel arrangement | RGB Vertical Stripe |
| Active area | 597.888×336.312 mm (H×V) |
| Outline dimensions | 607.13×354.1×13.53 mm (H×V×D) |
| Panel weight | 2.90/3.05 kg (Typ./Max.) |
| Surface treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast ratio | 1300:1 (Typ.) (TM) |
| Viewing angles (L/R/U/D) | 89°/89°/89°/89° (Typ.)(CR≥10) |
| Response time (ms) | 14 (Typ.)(G to G) |
| Preferred viewing direction | Symmetry |
| Display mode | AAS, Normally Black, Transmissive |
| Display colors and gamut | 16.7M, 100% sRGB, Low Blue Light |
| Reference applications | Desktop Monitor |
| Listed power consumption | 10.9 W (Typ.) |
| Backlight and listed lifetime | 4 strings WLED, 30K hrs, Without Driver |
| Listed refresh rate | 100 Hz |
| Touchscreen configuration | Without |
| Signal interface | LVDS (2 ch, 8-bit), 30 pins 1.0 mm Connector |
| Typical panel supply | 5.0V (Typ.) |
| Operating and storage temperatures | Storage Temp. -20 ~ 60 °C; Operating Temp. 0 ~ 50 °C |
Typ. and Max. identify reference rating types. Listed refresh rates require compatible source timing and controller configuration. Confirm the applicable panel specification and test conditions for final integration.
The listed application is desktop monitors. Match the source and controller to the required native 100 Hz timing before selecting an assembly configuration. The 607.13 × 354.1 × 13.53 mm outline should be checked for mounting support, cable clearance and the final cover-glass or bezel dimensions.
The collected L8B power reference is 10.9 W typical. This cannot be directly compared with the LCB maximum rating as an efficiency claim. Keep the L8B suffix, intended refresh mode and power requirements together in the inquiry so the panel, controller and external LED driver can be reviewed as one assembly.
XIANHENG supports LCD sourcing and custom display projects. Share your requirements so the quotation can cover the panel and the assembly work your project needs.
Browse our industrial LCD screen collection or review PCAP and resistive touch selection when planning the display assembly.
The collected L8B listing gives 100 Hz, while LCB is listed at 75 Hz. Select and validate the controller timing for the exact suffix and native resolution instead of assuming the two panels share an identical configuration.
The reference lists 1300:1 typical for L8B. LCB is listed at 1000:1 typical. Use the applicable panel specification and its test conditions when defining an optical acceptance requirement.
Provide the exact L8B model and revision, source interface, required 1920 × 1080 refresh mode, cable routing and available power input. A matching LED driver and brightness-control method must also be selected.
This page covers L8B, with a listed 100 Hz refresh rate and 10.9 W typical power reference. Confirm the actual revision and native timing before selecting the controller.
