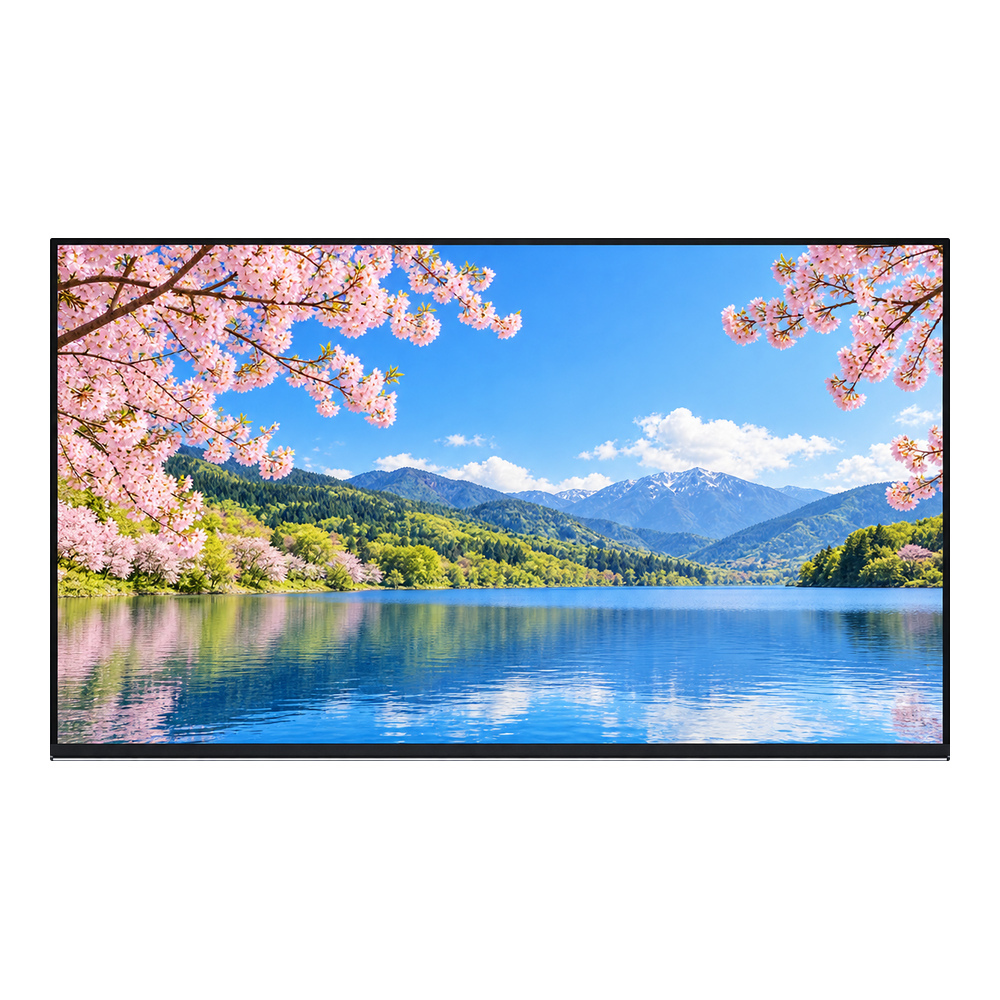

The Innolux M270HCJ-LCB is a 27.0-inch AAS LCD panel with 1920 × 1080 resolution. Its collected specification lists 250 cd/m² typical luminance, 1000:1 typical contrast and a 75 Hz refresh rate. A three-sided borderless design and 597.888 × 336.312 mm active area support evaluation for desktop-monitor assemblies.
The panel uses a 30-pin, dual-channel 8-bit LVDS interface with a 5.0 V typical supply. It is listed with 16.7 million colors and 100% sRGB coverage. White LED backlighting is incorporated, while the driver is external and a touchscreen is not included in the reference module.
| Parameter | Value |
|---|---|
| Manufacturer | Innolux |
| Model number | M270HCJ-LCB |
| Diagonal size | 27.0 inch |
| Panel construction | a-Si TFT-LCD, LCM |
| Resolution and aspect ratio | 1920(RGB)×1080, FHD, 16:9 |
| Pixel arrangement | RGB Vertical Stripe |
| Active area | 597.888×336.312 mm (H×V) |
| Outline dimensions | 607.13×354.1×13.26 mm (H×V×D); depth Max. |
| Panel weight | 2.90/3.05 kg (Typ./Max.) |
| Surface treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast ratio | 1000:1 (Typ.) (TM) |
| Viewing angles (L/R/U/D) | 89°/89°/89°/89° (Typ.)(CR≥10) |
| Response time (ms) | 14 (Typ.)(G to G) |
| Preferred viewing direction | Symmetry |
| Display mode | AAS, Normally Black, Transmissive |
| Display colors and gamut | 16.7M, 100% sRGB |
| Reference applications | Desktop Monitor |
| Listed power consumption | 15.6 W (Max.) |
| Backlight and listed lifetime | 4 strings WLED, 30K hrs, Without Driver |
| Listed refresh rate | 75 Hz |
| Touchscreen configuration | Without |
| Signal interface | LVDS (2 ch, 8-bit), 30 pins Connector |
| Typical panel supply | 5.0V (Typ.) |
| Operating and storage temperatures | Storage Temp. -20 ~ 60 °C; Operating Temp. 0 ~ 50 °C |
Typ. and Max. identify reference rating types. Listed refresh rates require compatible source timing and controller configuration. Confirm the applicable panel specification and test conditions for final integration.
The reference application is desktop monitors. Use the 607.13 × 354.1 mm outline to establish the assembly footprint, then check the complete mechanical drawing for mounting and connector clearance. The reference lists 9.0 mm typical depth and 13.26 mm maximum depth, so the maximum is relevant when checking available enclosure space.
The LCB reference gives 15.6 W maximum power consumption. Keep that maximum designation when planning power or comparing another panel. LCB and L8B differ in contrast, refresh rate, depth and the type of power figure reported; retain the full suffix when requesting a controller or replacement review.
XIANHENG supports LCD sourcing and custom display projects. Share your requirements so the quotation can cover the panel and the assembly work your project needs.
Browse our industrial LCD screen collection or review PCAP and resistive touch selection when planning the display assembly.
The collected LCB reference lists 1000:1 contrast and 75 Hz, while L8B lists 1300:1 and 100 Hz. Their depth and power references also differ. Confirm compatibility for the exact suffix rather than treating the models as equivalent.
The collected LCB specification lists 9.0 mm typical and 13.26 mm maximum depth. Use the approved mechanical drawing and its maximum dimensions when checking the space available in the assembly.
LCB is listed at 15.6 W maximum, while L8B is listed at 10.9 W typical. These are different rating types; obtain comparable operating conditions and ratings before making an efficiency comparison.
Reference: Ver1.1 dated 9 June 2022. LCB is treated separately from L8B. Listed power is maximum, and listed outline depth is maximum.
