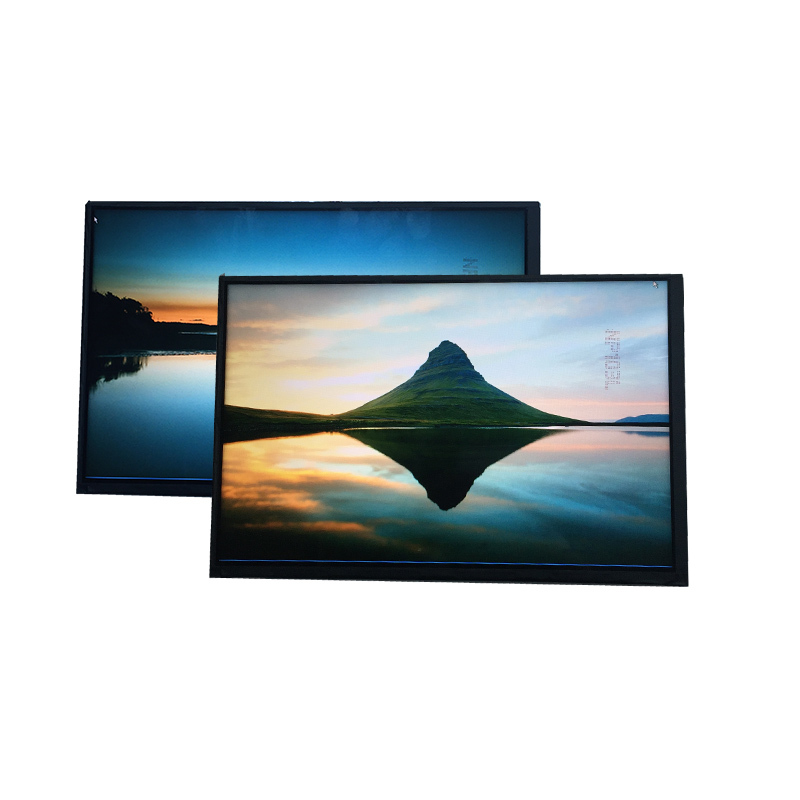

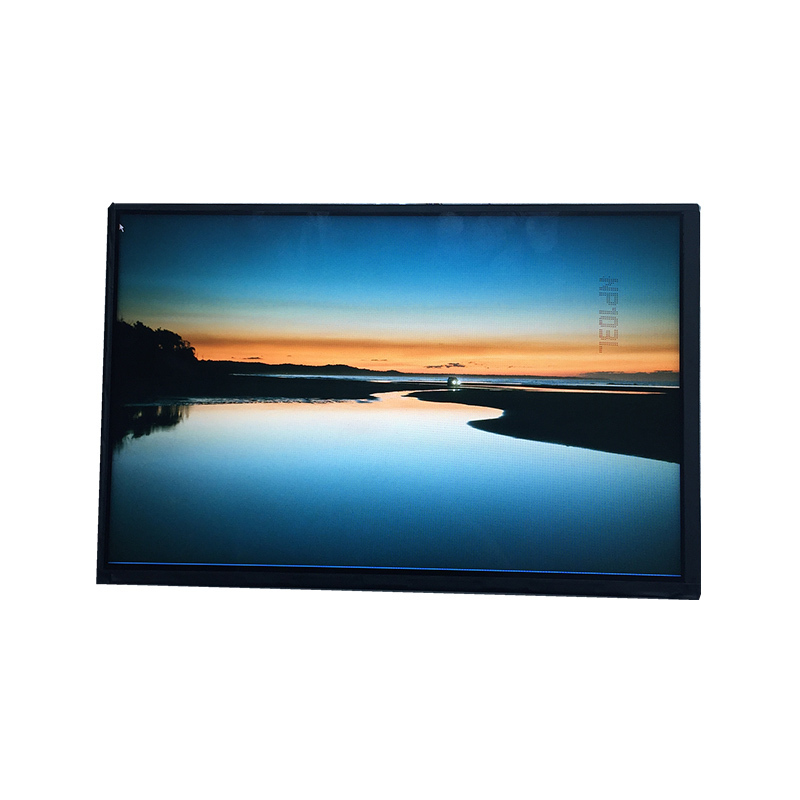

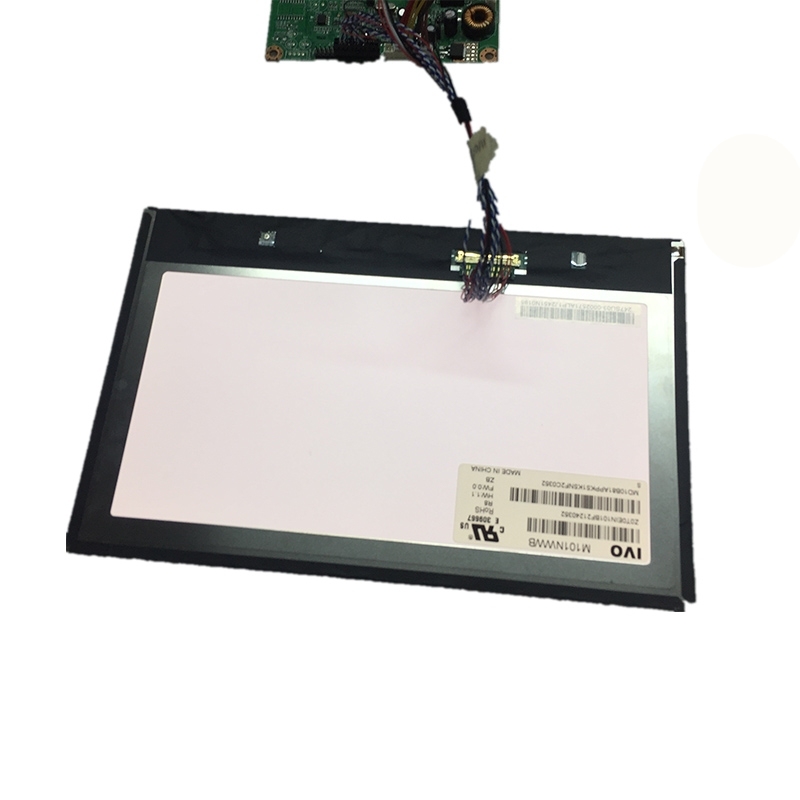

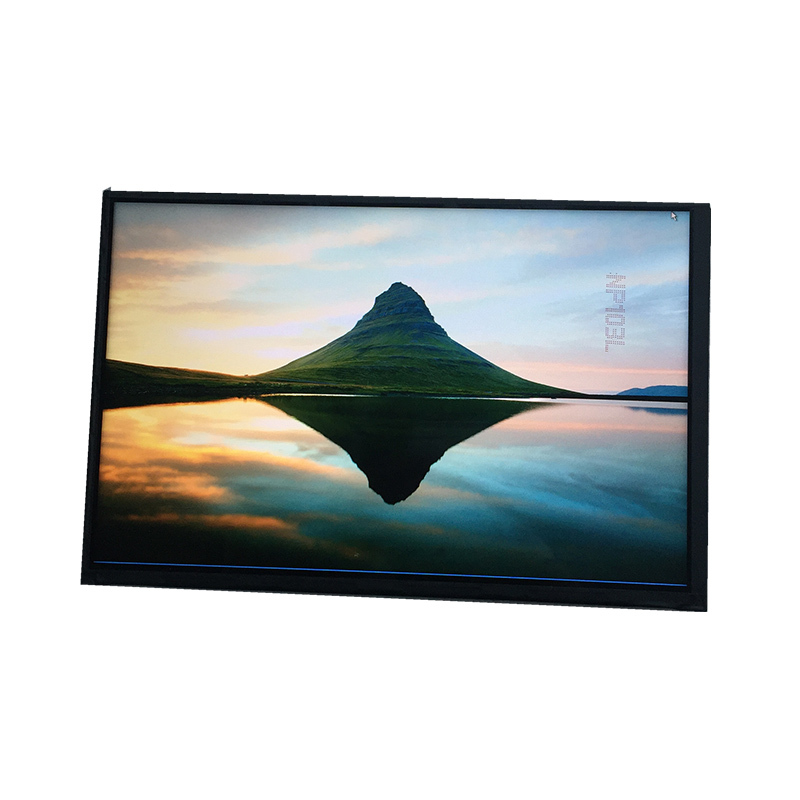

The M101NWWB R8 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driver circuit and a backlight system. This TFT LCD has a 10.1 inch diagonally measured active display area with WXGA resolution (1280 horizontal by 800 vertical pixels array).
General Specification

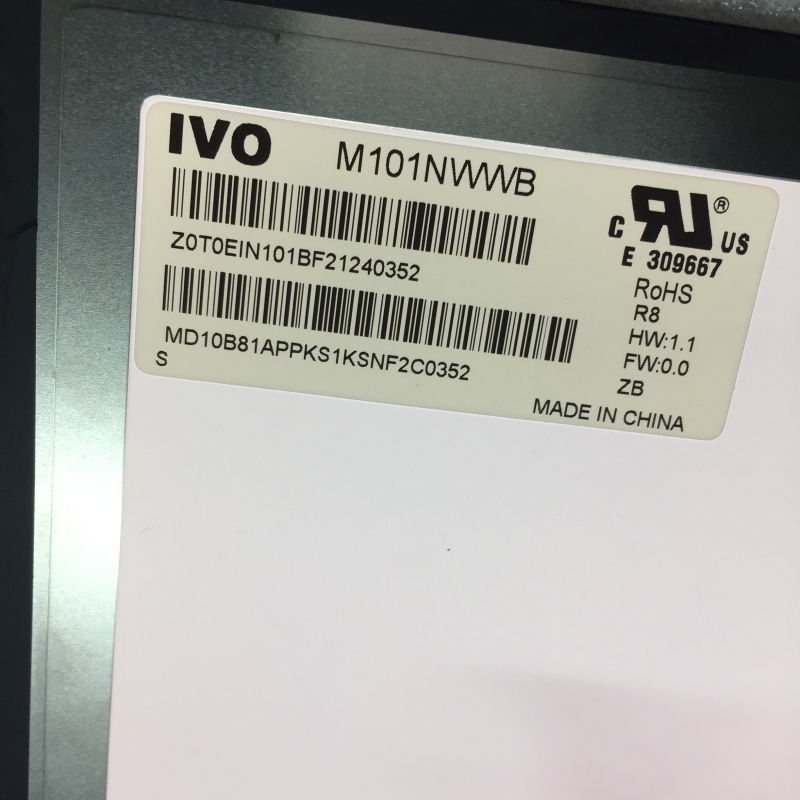

Panel Brand IVO
Panel Model M101NWWB R8
Panel Size 10.1 inch
Panel Type a-Si TFT-LCD , LCM
Resolution 1280(RGB)×800 , WXGA
Pixel Format RGB Vertical Stripe
Display Area 216.96(W)×135.6(H) mm
Bezel Opening -
Outline Size 229.46(W)×149.1(H) ×4.56(D) mm
Surface Glare(Haze 0%), Hard coating
Brightness 350 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down
Display Mode IPS, Normally Black, Transmissive
Best View on Symmetry
Response Time 25 (Typ.)(Tr+Td)
Display Colors 16.7M 45% (CIE1931)
Lamp Type WLED , Without Driver
Frequency 60Hz
Touch Screen Without
Panel Weight 160g (Max.)
Application Pad & Tablet
Signal Interface LVDS (1 ch, 8-bit) , 40 pins ,Connector
Input Voltage 3.3V (Typ.)
Environment Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
