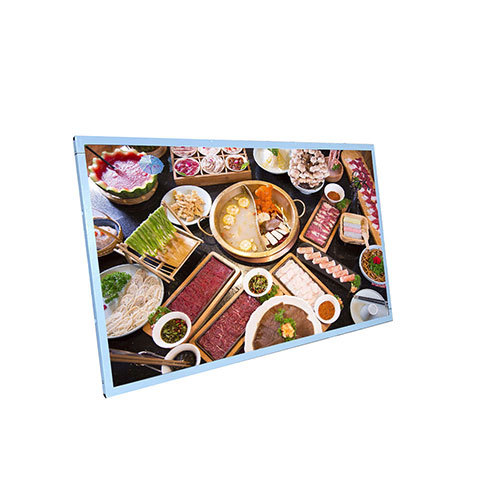

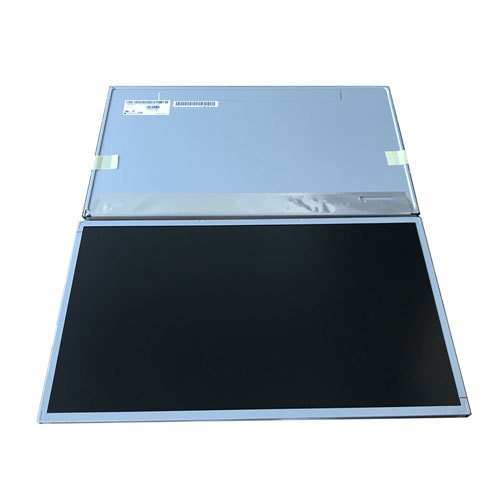

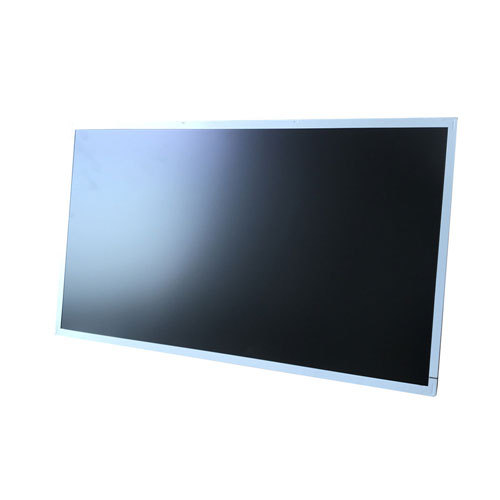

LM215WF3-SLS2 21.5 inch LG Full HD LCD Display Panel With All Viewing Angle

Item No.: LM215WF3-SLS2
LM215WF3SLS2 is a LG new model, which is Color Active Matrix Liquid Crystal Display with a Light Emitting Diode ( White LED) backlight system without LED driver.  It's recommended that this model be applied to Desktop Monitor and industrial application, e
Description Review
Description

LM215WF3SLS2 is a LG new model, which is Color Active Matrix Liquid Crystal Display with a Light Emitting Diode ( White LED) backlight system without LED driver. The matrix employs a-Si Thin Film Transistor as the active element.

It is a transmissive type display operating in the normally black mode. It has a 21.5 inch diagonally measured active display area with FHD resolution (1080 vertical by 1920horizontal pixel array) Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot, thus, presenting a palette of more than 16,7M colors with A-FRC (Advanced Frame Rate Control). It has been designed to apply the 8Bit 2 port LVDS interface. It is intended to support displays where high brightness, super wide viewing angle,high color saturation, and high color are important.

Based on its features, it's recommended that this model be applied to Desktop Monitor and industrial application, etc.

If you want to embed LM215WF3SLS2 LCM in your future product, we strongly recommend that you should contact with LG or XIANHENG TECH to learn lateast production and specification details.

Genneral Specfication

Panel Brand:     LG Display

Panel Size    :     21.5"

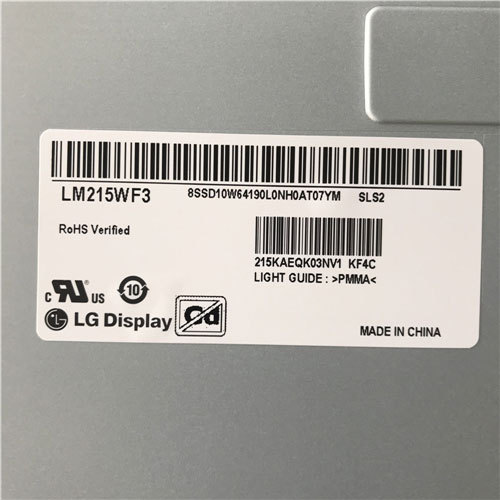

Panel Model:     LM215WF3-SLS2

Panel Type:     a-Si TFT-LCD , LCM

Resolution:     1920(RGB)×1080, FHD, 102PPI

Pixel Format:     RGB Vertical Stripe

Display Area:     476.064(W)×267.786(H) mm

Outline Size:     497.6(W)×292.2(H) ×11(D) mm

Bezel Opening:     479.8(W)×271.3(H) mm

Surface:     Antiglare (Haze 25%), Hard coating (3H)

Brightness:     250 cd/m² (Typ.)

Viewing Angle:     89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Contrast Ratio:     1000:1 (Typ.) (TM)

Display Mode:     IPS, Normally Black, Transmissive

Response Time:     14 (Typ.)(G to G)

Best View on:     Symmetry

Display Colors:     16.7M   72% NTSC

Frequency:     60Hz

Weight:     1.69/1.77Kgs (Typ./Max.)

Lamp Type:     17S2P WLED , 30K hours , Without Driver

Touch Screen:     Without

Application:     Desktop Monitor Industrial

Signal Interface:     LVDS (2 ch, 8-bit) , 30 pins Connector

Input Voltage:     5.0V (Typ.)

Environment:     Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
