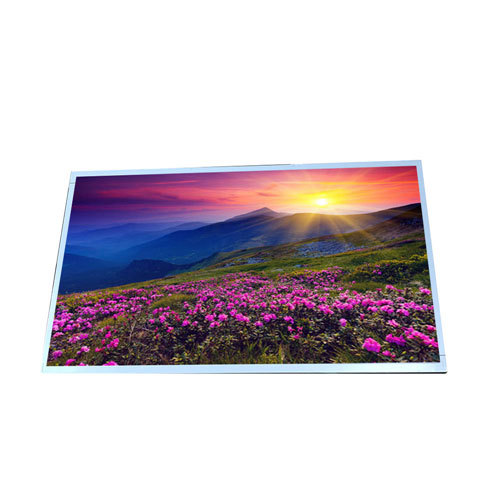

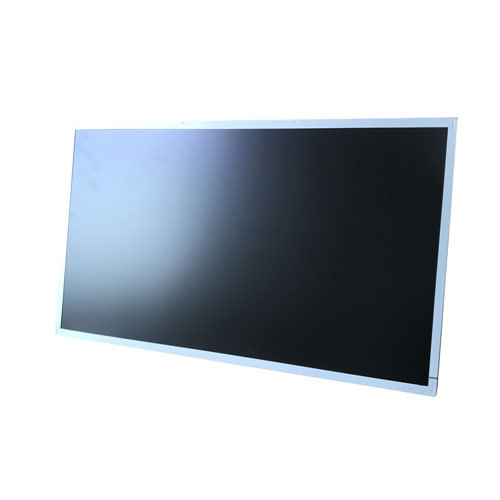

LM215WF3-SLS1 21.5 inch LG Full HD LCD Display Panel With All Viewing Angle
LM215WF3SLS1 is a Color Active Matrix Liquid Crystal Display with a Light Emitting Diode ( White LED) backlight system without LED driver. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally black mode. It has a 21.5 inch diagonally measured active display area with FHD resolution (1080 vertical by 1920horizontal pixel array) Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot, thus, presenting a palette of more than 16,7M colors with A-FRC (Advanced Frame Rate Control). It has been designed to apply the 8Bit 2 port LVDS interface. It is intended to support displays where high brightness, super wide viewing angle,high color saturation, and high color are important.
Based on its features, it's recommended that this model be applied to Desktop Monitor and industrial application, etc.
If you want to embed LM215WF3SLS1 LCM in your future product, we strongly recommend that you should contact with AUO or XIANHENG TECH to learn lateast production and specification details.
Panel Brand: LG Display
Panel Size : 21.5"

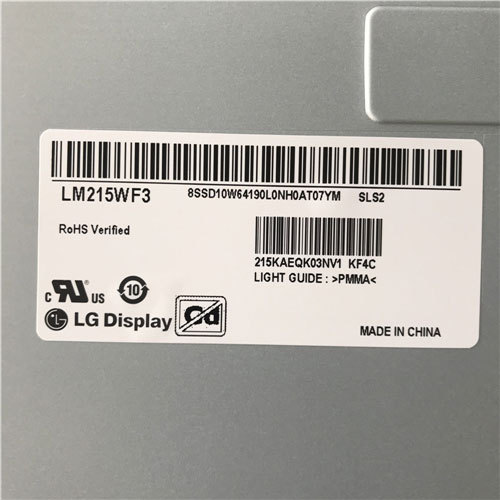

Panel Model: LM215WF3-SLS1
Panel Type: a-Si TFT-LCD , LCM
Resolution: 1920(RGB)×1080, FHD, 102PPI
Pixel Format: RGB Vertical Stripe
Display Area: 476.064(W)×267.786(H) mm
Outline Size: 497.6(W)×292.2(H) ×11(D) mm
Bezel Opening: 479.8(W)×271.3(H) mm
Surface: Antiglare (Haze 25%), Hard coating (3H)
Brightness: 250 cd/m² (Typ.)
Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Contrast Ratio: 1000:1 (Typ.) (TM)
Display Mode: IPS, Normally Black, Transmissive
Response Time: 14 (Typ.)(G to G)
Best View on: Symmetry
Display Colors: 16.7M 72% NTSC
Weight: 1.69/1.77Kgs (Typ./Max.)
Lamp Type: 17S2P WLED , 30K hours , Without Driver
Touch Screen: Without
Application: Desktop Monitor Industrial

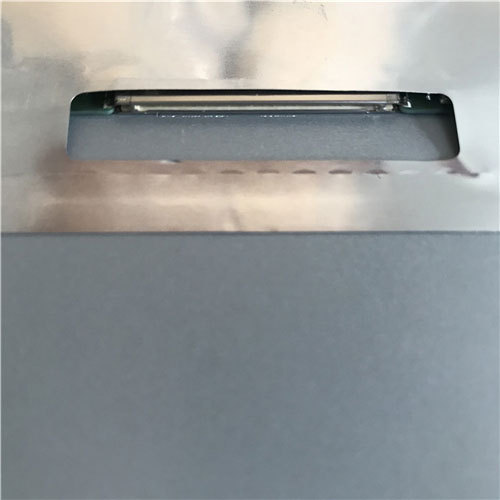

Signal Interface: LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage: 5.0V (Typ.)
Environment: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
