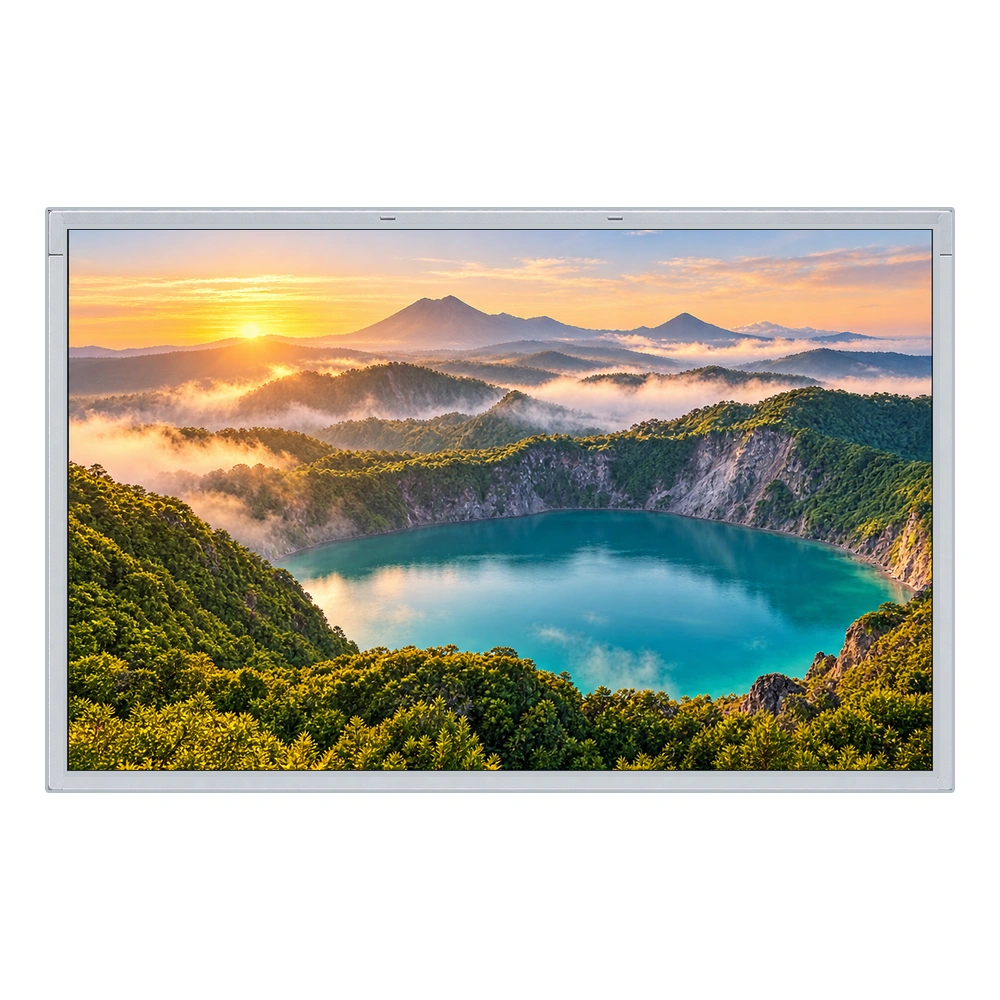

The LG Display LM240WU8-SLE1 is a 24.0-inch IPS LCD module with 1920 × 1200 WUXGA resolution. Its 16:10 image format provides 120 more vertical pixels than a 1920 × 1080 panel, which can help when an interface needs additional space for toolbars, process information or document content.
The panel is listed at 300 cd/m² typical luminance, 1000:1 typical contrast and 100% sRGB coverage. A dual-channel 8-bit LVDS input uses a 30-pin connector. The typical supply is 10.0 V, making power compatibility an important check when replacing a display that uses a different panel voltage.
| Parameter | Value |
|---|---|
| Manufacturer | LG Display |
| Model number | LM240WU8-SLE1 |
| Diagonal size | 24.0 inch |
| Panel construction | a-Si TFT-LCD, LCM |
| Resolution and aspect ratio | 1920(RGB)×1200, WUXGA, 16:10 |
| Pixel arrangement | RGB Vertical Stripe |
| Active area | 518.4×324 mm (H×V) |
| Outline dimensions | 546.4×352×12.2 mm (H×V×D); depth Max. |
| Panel weight | 2.65/2.78 kg (Typ./Max.) |
| Surface treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast ratio | 1000:1 (Typ.) (TM) |
| Viewing angles (L/R/U/D) | 89°/89°/89°/89° (Typ.)(CR≥10) |
| Response time (ms) | 14 (Typ.)(G to G) |
| Preferred viewing direction | Symmetry |
| Display mode | IPS, Normally Black, Transmissive |
| Display colors and gamut | 16.7M, 100% sRGB |
| Reference applications | Desktop Monitor, Industrial, Digital Signage |
| Listed power consumption | 15.55 W (Typ.) |
| Backlight and listed lifetime | 17S2P WLED, 30K hrs, Without Driver |
| Listed refresh rate | 60 Hz |
| Touchscreen configuration | Without |
| Signal interface | LVDS (2 ch, 8-bit), 30 pins Connector |
| Typical panel supply | 10.0V (Typ.) |
| Operating and storage temperatures | Storage Temp. -20 ~ 60 °C; Operating Temp. 0 ~ 50 °C |
Typ. and Max. identify reference rating types. Listed refresh rates require compatible source timing and controller configuration. Confirm the applicable panel specification and test conditions for final integration.
Reference applications include desktop monitors, industrial systems and digital signage. The 518.4 × 324 mm active area supports layouts that make use of the taller 16:10 format. Check how the source image is rendered so a controller does not stretch or crop content designed for a different aspect ratio.
The outline is 546.4 × 352 × 12.2 mm, with the listed depth treated as a maximum. The collected reference gives 15.55 W typical power consumption and a 60 Hz refresh rate. Validate the 10.0 V supply, LVDS connection and external backlight driver against the required panel revision.
XIANHENG supports LCD sourcing and custom display projects. Share your requirements so the quotation can cover the panel and the assembly work your project needs.
Browse our industrial LCD screen collection or review PCAP and resistive touch selection when planning the display assembly.
WUXGA provides 1920 × 1200 pixels, retaining the same horizontal pixel count as Full HD while adding 120 rows. Applications can use the extra vertical area when the controller and software output the native resolution.
The collected specification lists 10.0 V typical. Confirm the approved supply requirements and power sequencing before connecting a controller or reusing an existing harness.

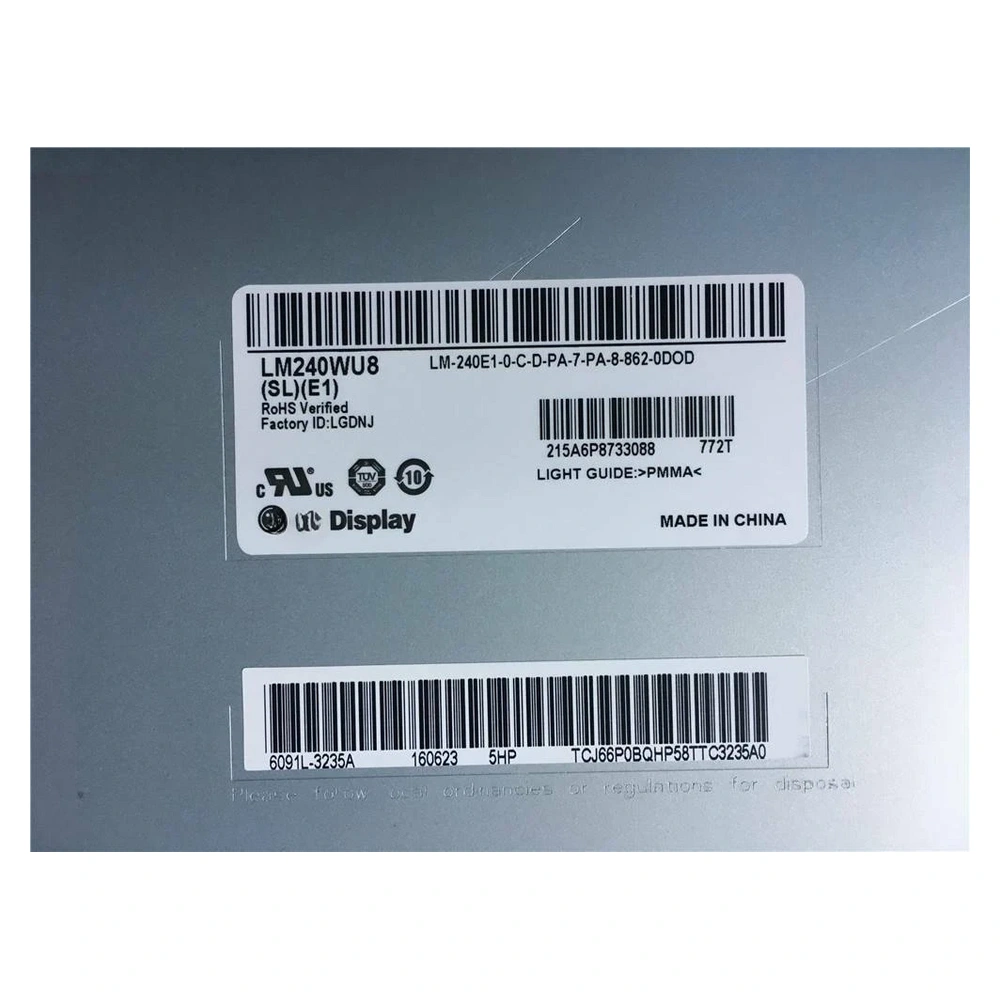

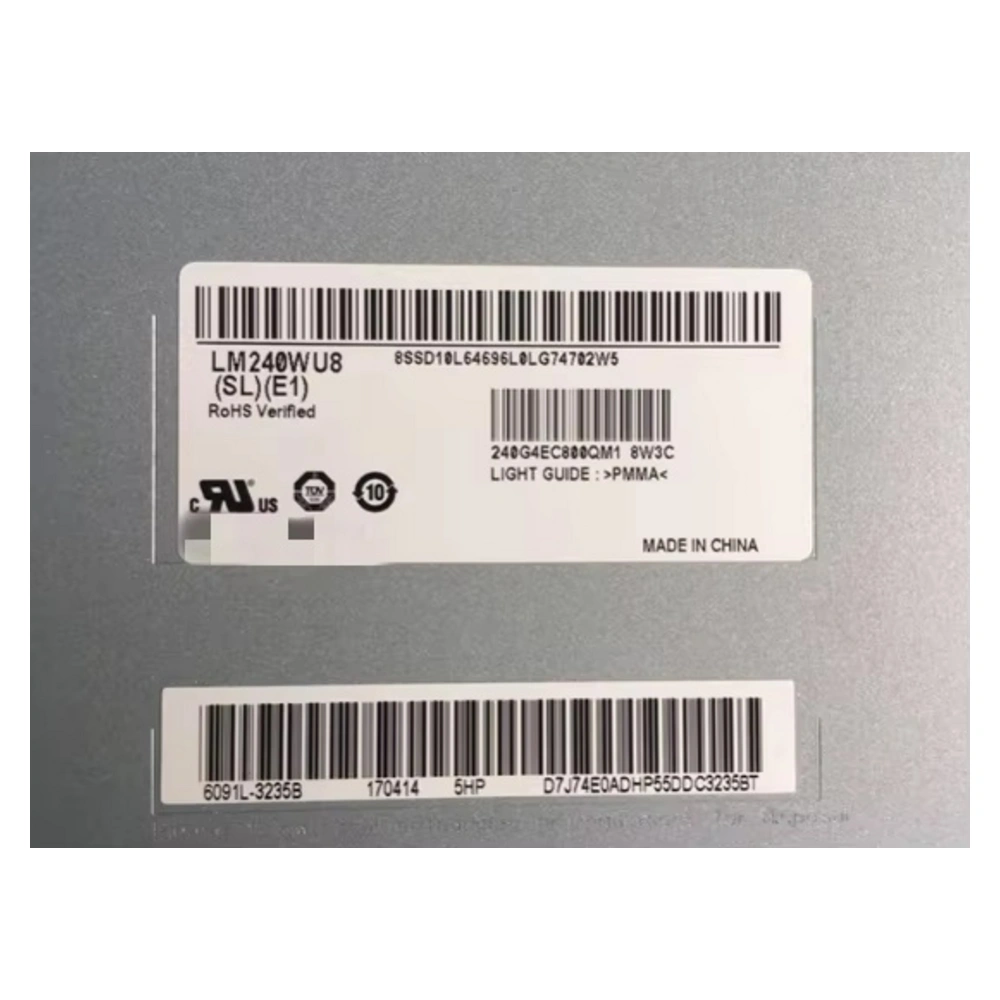

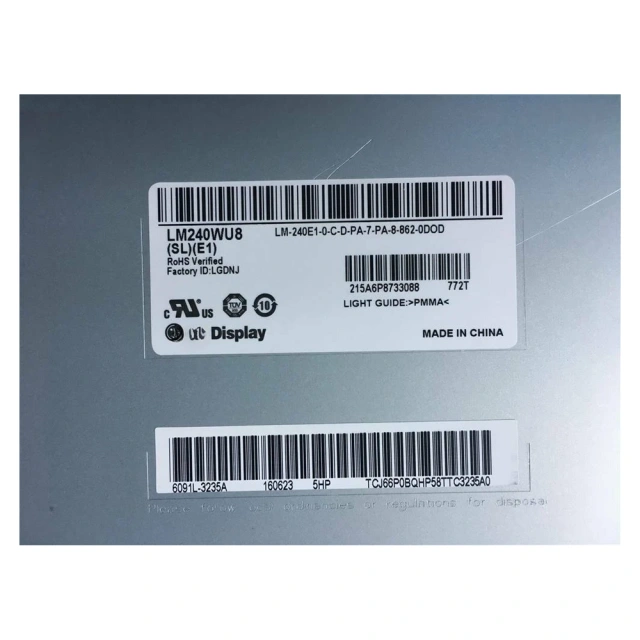

The collected structured specification references Ver0.1 dated 28 April 2016. Verify the supplied label and the applicable current drawing when requesting samples or production quantities.
Reference specification: Ver0.1 dated 28 April 2016. The listed 12.2 mm outline depth is a maximum; confirm the actual revision and mounting drawing.
Send the full model and revision, required quantity, application, controller interface and touch or cover-glass requirements. Availability, pricing, delivery time and the proposed configuration will be confirmed in the quotation.
