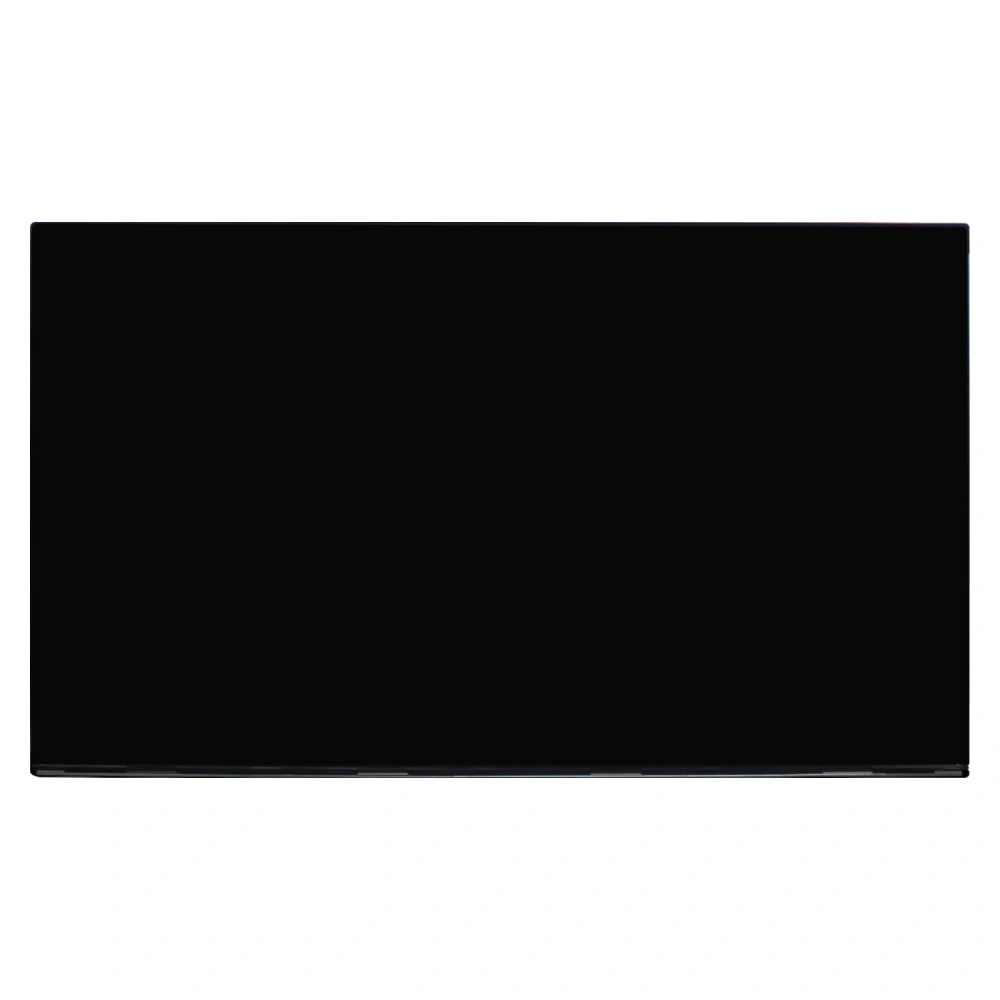

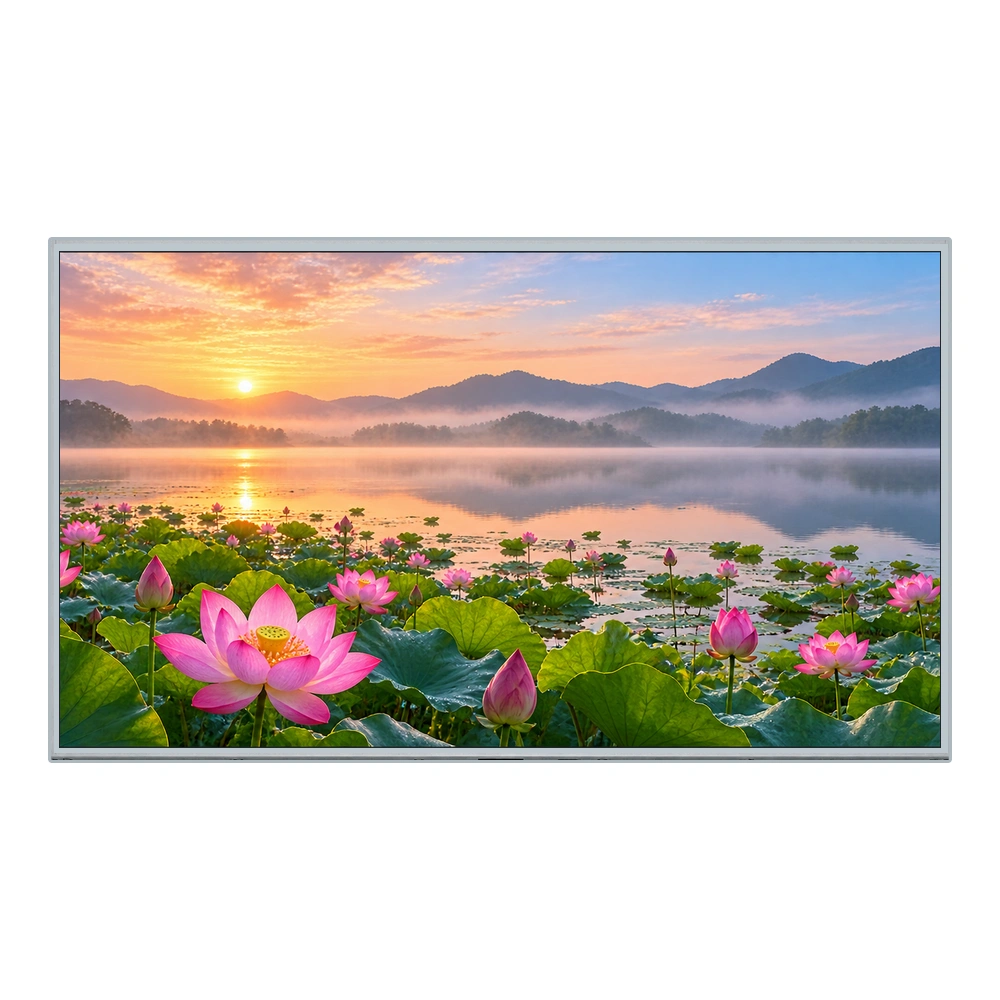

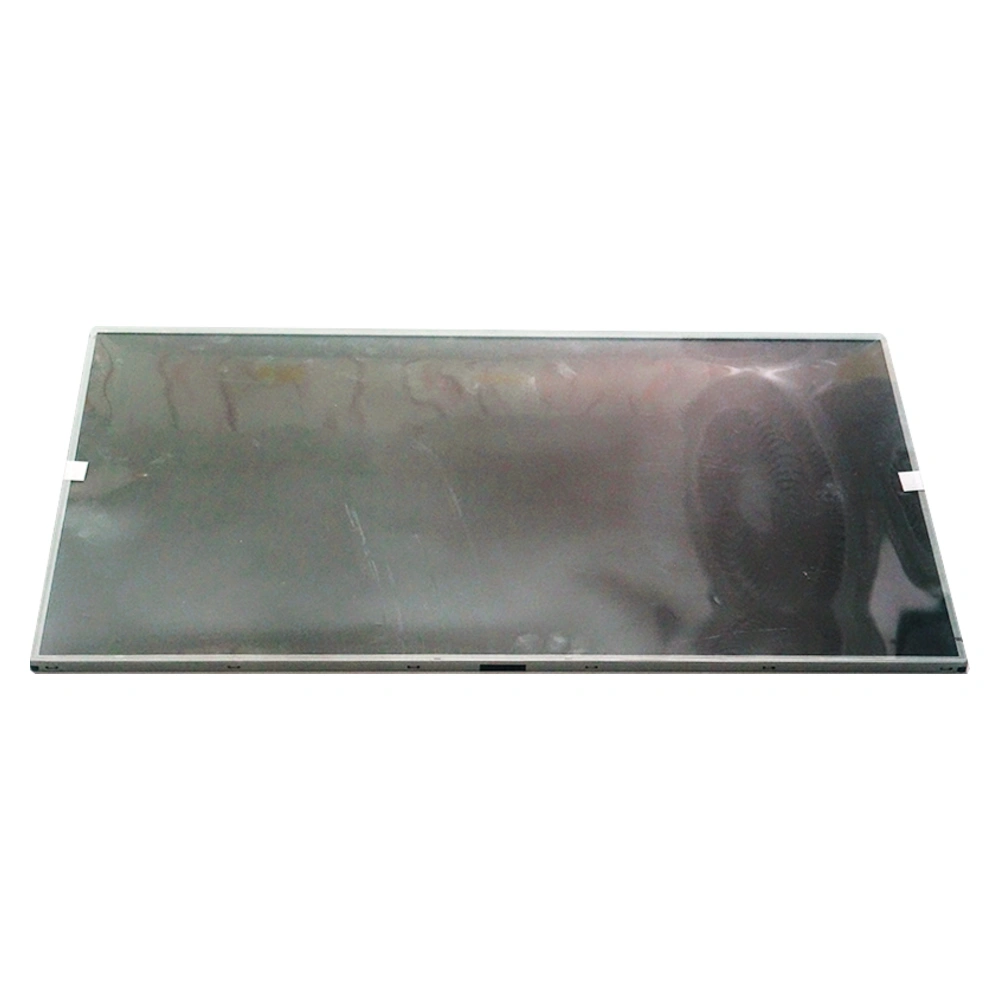

The LG Display LM270WF7-SLA1 is a 27.0-inch IPS LCD panel with 1920 × 1080 resolution. It combines a 597.888 × 336.312 mm active area with 300 cd/m² typical luminance, offering a larger Full HD viewing window for desktop monitors and indoor digital signage.
The panel is listed with 1000:1 typical contrast, 16.7 million colors and an antiglare surface with a 3H hard coating. Its dual-channel 8-bit LVDS connection uses a 30-pin, 1.0 mm-pitch connector, while the typical panel supply is 5.0 V. The integrated WLED backlight requires a separate driver.
| Parameter | Value |
|---|---|
| Manufacturer | LG Display |
| Model number | LM270WF7-SLA1 |
| Diagonal size | 27.0 inch |
| Panel construction | a-Si TFT-LCD, LCM |
| Resolution and aspect ratio | 1920(RGB)×1080, FHD, 16:9 |
| Pixel arrangement | RGB Vertical Stripe |
| Active area | 597.888×336.312 mm (H×V) |
| Outline dimensions | 611.5×355.8×14 mm (H×V×D) |
| Panel weight | 2.89/3.04 kg (Typ./Max.) |
| Surface treatment | Antiglare, Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast ratio | 1000:1 (Typ.) (TM) |
| Viewing angles (L/R/U/D) | 89°/89°/89°/89° (Typ.)(CR≥10) |
| Response time (ms) | 14 (Typ.)(G to G) |
| Preferred viewing direction | Symmetry |
| Display mode | IPS, Normally Black, Transmissive |
| Display colors and gamut | 16.7M, 72% NTSC |
| Reference applications | Desktop Monitor, Digital Signage |
| Listed power consumption | 22.15 W (Typ.) |
| Backlight and listed lifetime | 17S4P WLED, 30K hrs, Without Driver |
| Listed refresh rate | 75 Hz |
| Touchscreen configuration | Without |
| Signal interface | LVDS (2 ch, 8-bit), 30 pins 1.0 mm Connector |
| Typical panel supply | 5.0V (Typ.) |
| Operating and storage temperatures | Storage Temp. -20 ~ 60 °C; Operating Temp. 0 ~ 50 °C |
Typ. and Max. identify reference rating types. Listed refresh rates require compatible source timing and controller configuration. Confirm the applicable panel specification and test conditions for final integration.
The reference identifies desktop monitors and digital signage as application categories. In a large-format interface layout, check viewing distance and text size together with pixel resolution. The 27-inch diagonal provides a larger physical image at Full HD resolution, which may help layouts designed for observation from farther away.

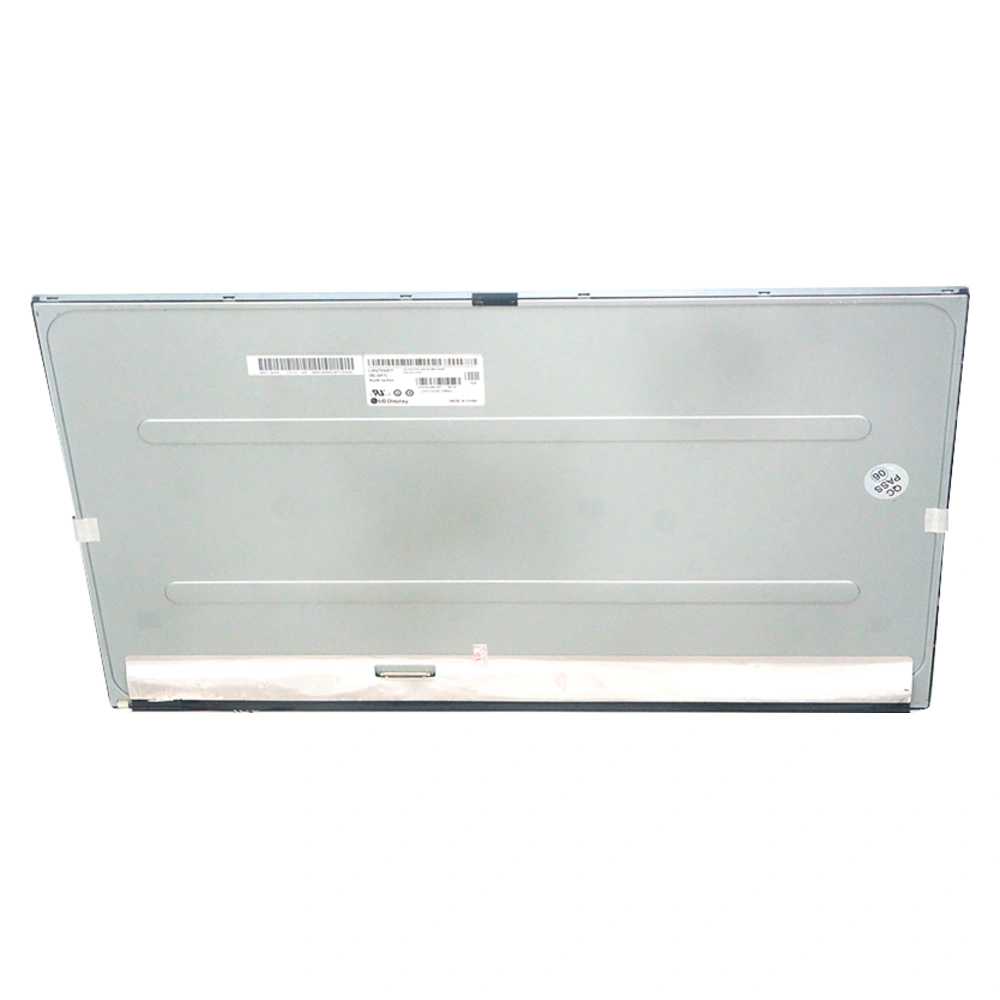

Allow for the 611.5 × 355.8 × 14 mm outline and the listed 2.89 kg typical panel weight. Mechanical support, rear clearance and cable retention should be considered together. The collected power reference is 22.15 W typical; confirm the complete assembly budget with the selected controller and backlight driver.
XIANHENG supports LCD sourcing and custom display projects. Share your requirements so the quotation can cover the panel and the assembly work your project needs.
Browse our industrial LCD screen collection or review PCAP and resistive touch selection when planning the display assembly.
Its native resolution is 1920 × 1080 Full HD. If the project requires UHD detail in a different size, request a separate selection review based on the required image area, interface and resolution.
The active area is 597.888 × 336.312 mm and the outline is 611.5 × 355.8 × 14 mm. Check mounting points and connector positions on the applicable drawing in addition to these headline dimensions.
The collected structured reference is Ver0.4 dated 12 September 2016. Confirm the actual panel revision, controller timing and backlight requirements when preparing an order.

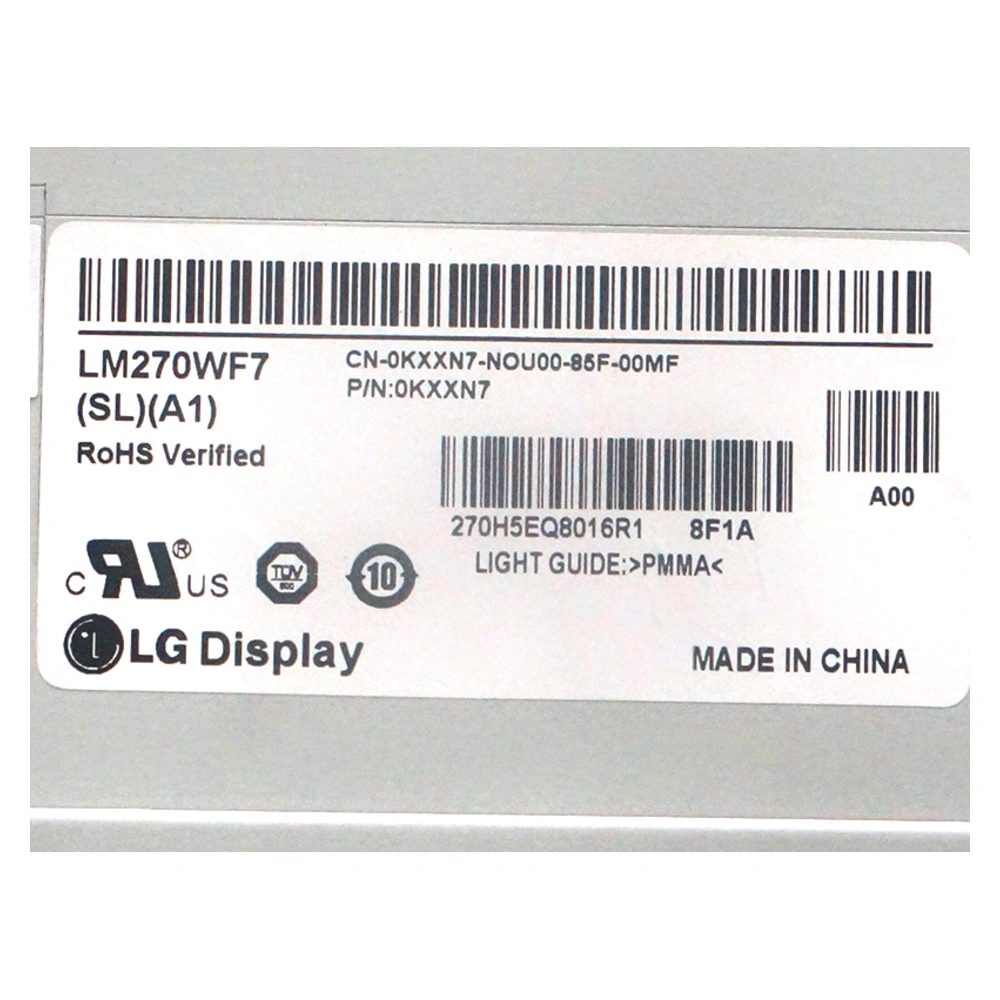

Reference specification: Ver0.4 dated 12 September 2016. Match the actual SLA1 label and approved mechanical and electrical drawing.
Send the full model and revision, required quantity, application, controller interface and touch or cover-glass requirements. Availability, pricing, delivery time and the proposed configuration will be confirmed in the quotation.
