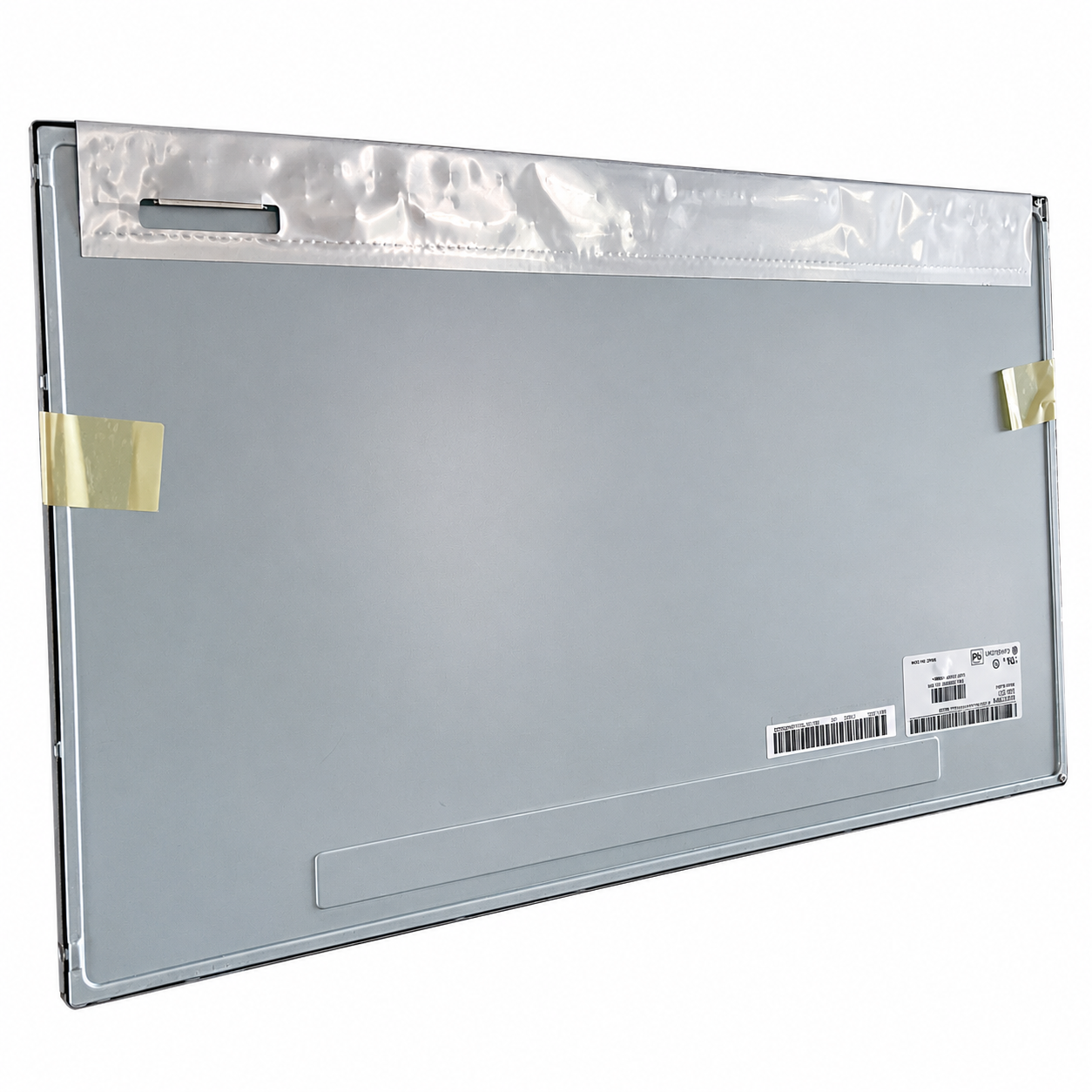

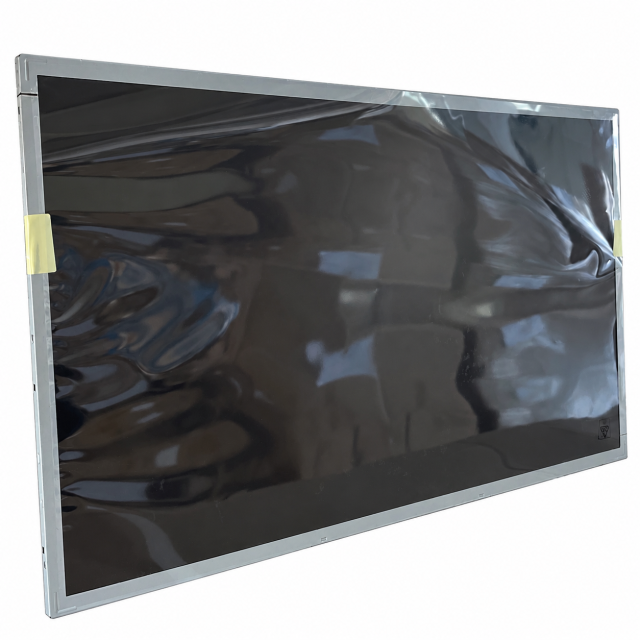

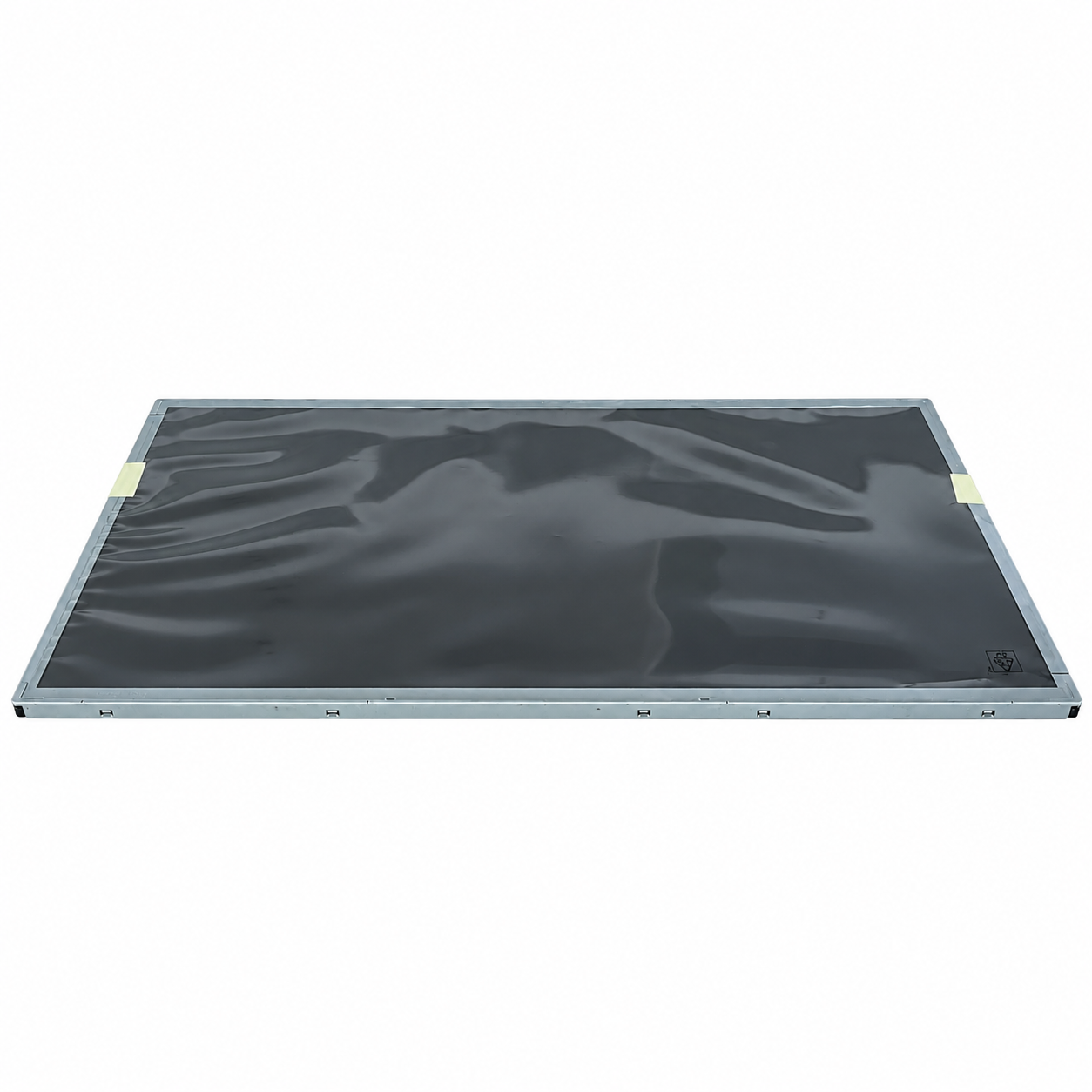

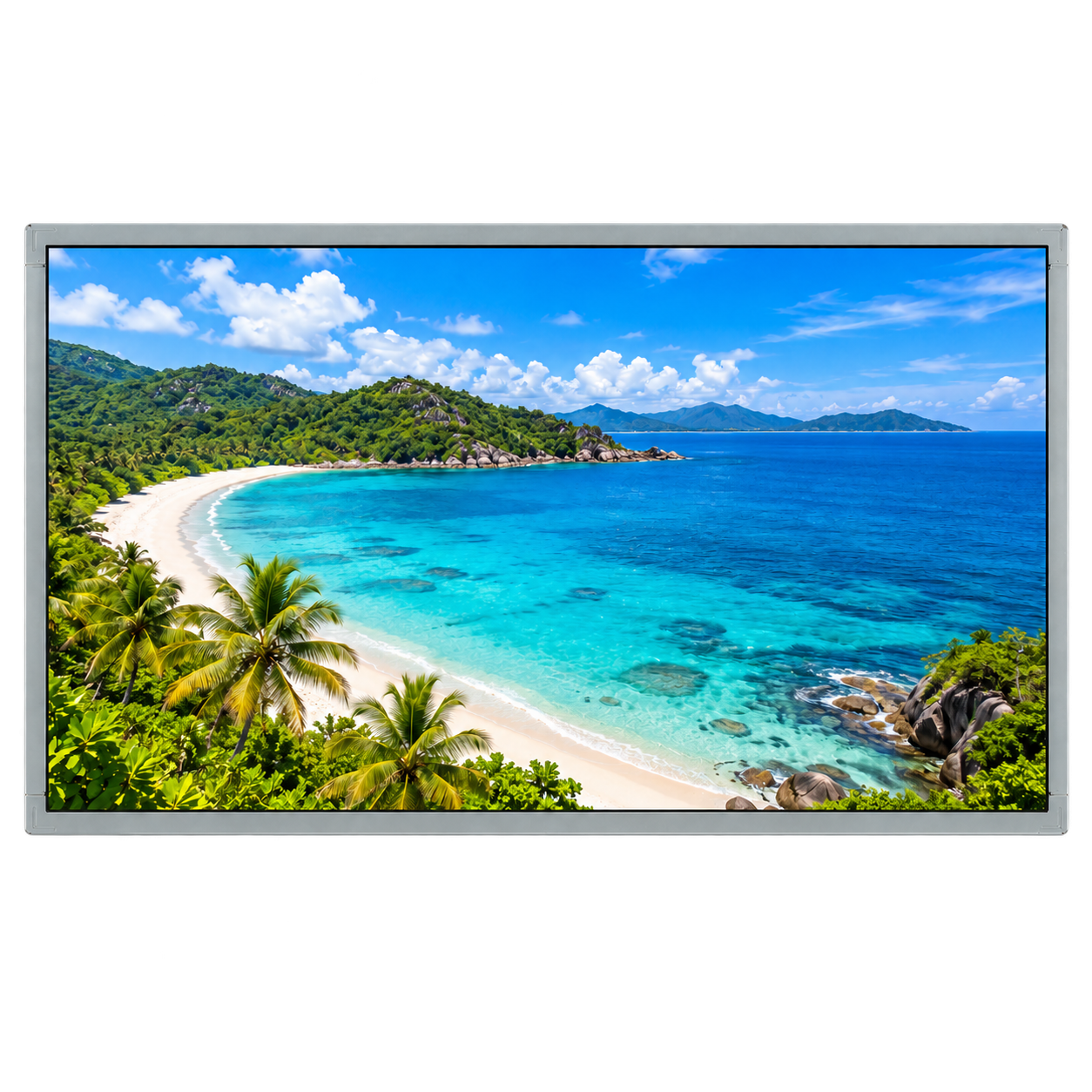

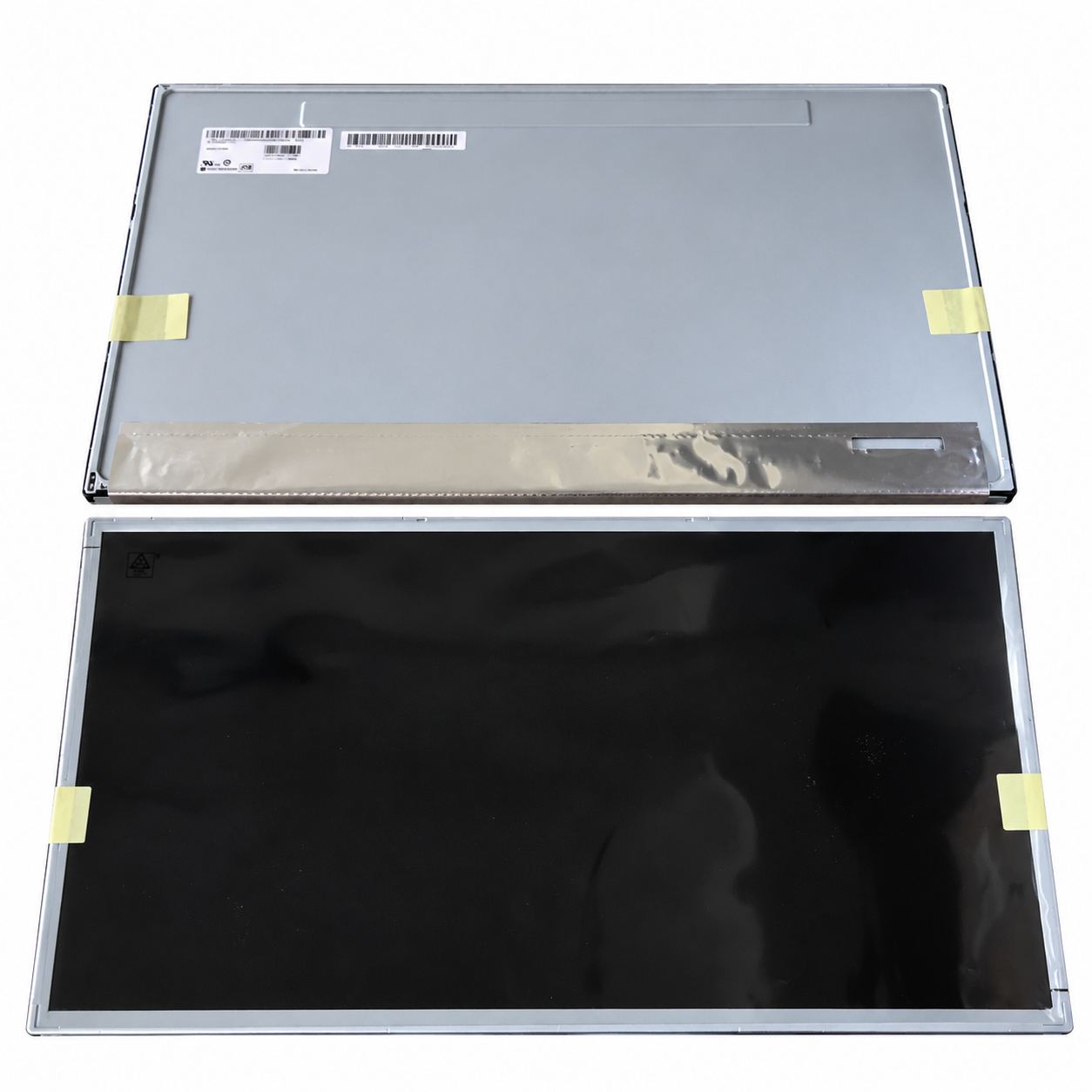

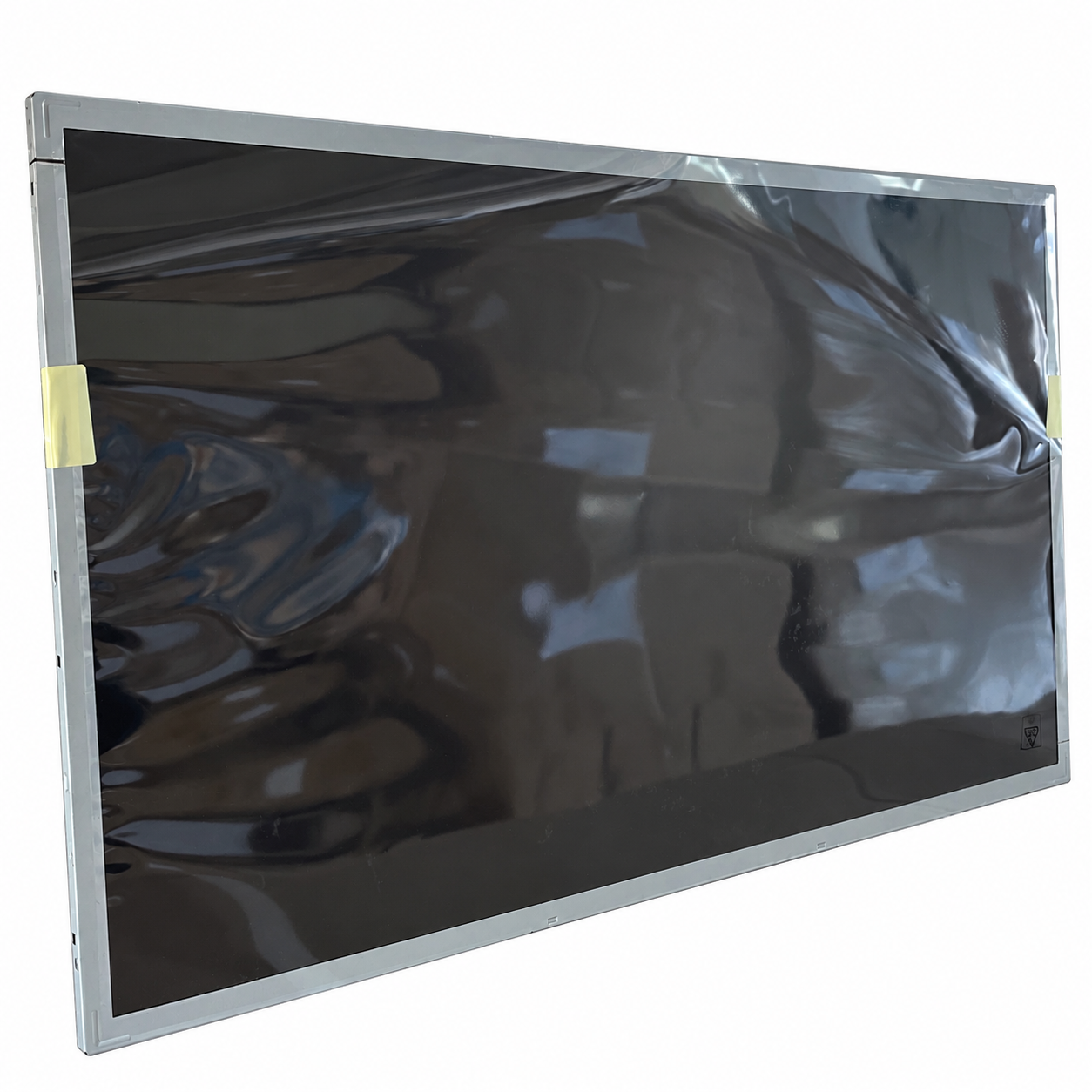

The LG Display LM215WF3-SLS1 is a 21.5-inch Full HD IPS LCD panel for projects built around a 1920 × 1080, 16:9 image area. Its 250 cd/m² typical luminance and 1000:1 typical contrast ratio support evaluation for indoor monitor and equipment displays where viewing position can vary.
This model provides 16.7 million colors and an antiglare surface with a 3H hard coating. The panel uses dual-channel 8-bit LVDS through a 30-pin connector, with a 5.0 V typical supply. The reference typical power consumption is 11.05 W; the LED backlight requires an external driver.
| Parameter | Value |
|---|---|
| Manufacturer | LG Display |
| Model number | LM215WF3-SLS1 |
| Diagonal size | 21.5 inch |
| Panel construction | a-Si TFT-LCD, LCM |
| Resolution and aspect ratio | 1920(RGB)×1080, 16:9, FHD |
| Pixel arrangement | RGB Vertical Stripe |
| Active area | 476.064×267.786 mm (H×V) |
| Outline dimensions | 497.6×292.2×11 mm (H×V×D) |
| Panel weight | 1.69/1.77 kg (Typ./Max.) |
| Surface treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast ratio | 1000:1 (Typ.) (TM) |
| Viewing angles (L/R/U/D) | 89°/89°/89°/89° (Typ.)(CR≥10) |
| Response time (ms) | 14 (Typ.)(G to G) |
| Preferred viewing direction | Symmetry |
| Display mode | IPS, Normally Black, Transmissive |
| Display colors and gamut | 16.7M, 72% NTSC |
| Reference applications | Desktop Monitor, Industrial, Medical Imaging, Digital Signage |
| Listed power consumption | 11.05 W (Typ.) |
| Backlight and listed lifetime | 17S2P WLED, 30K hrs, No Driver |
| Listed refresh rate | 75 Hz |
| Touchscreen configuration | Without |
| Signal interface | LVDS (2 ch, 8-bit), 30 pins 1.0 mm Connector |
| Typical panel supply | 5.0V (Typ.) |
| Operating and storage temperatures | Storage Temp. -20 ~ 60 °C; Operating Temp. 0 ~ 50 °C |
Typ. and Max. identify reference rating types. Listed refresh rates require compatible source timing and controller configuration. Confirm the applicable panel specification and test conditions for final integration.
Listed applications include desktop monitors, industrial systems, medical imaging equipment and digital signage. A 476.064 × 267.786 mm active area gives engineers a defined viewing window for screen layouts and enclosure design. Medical equipment projects also require application-specific optical and system validation.

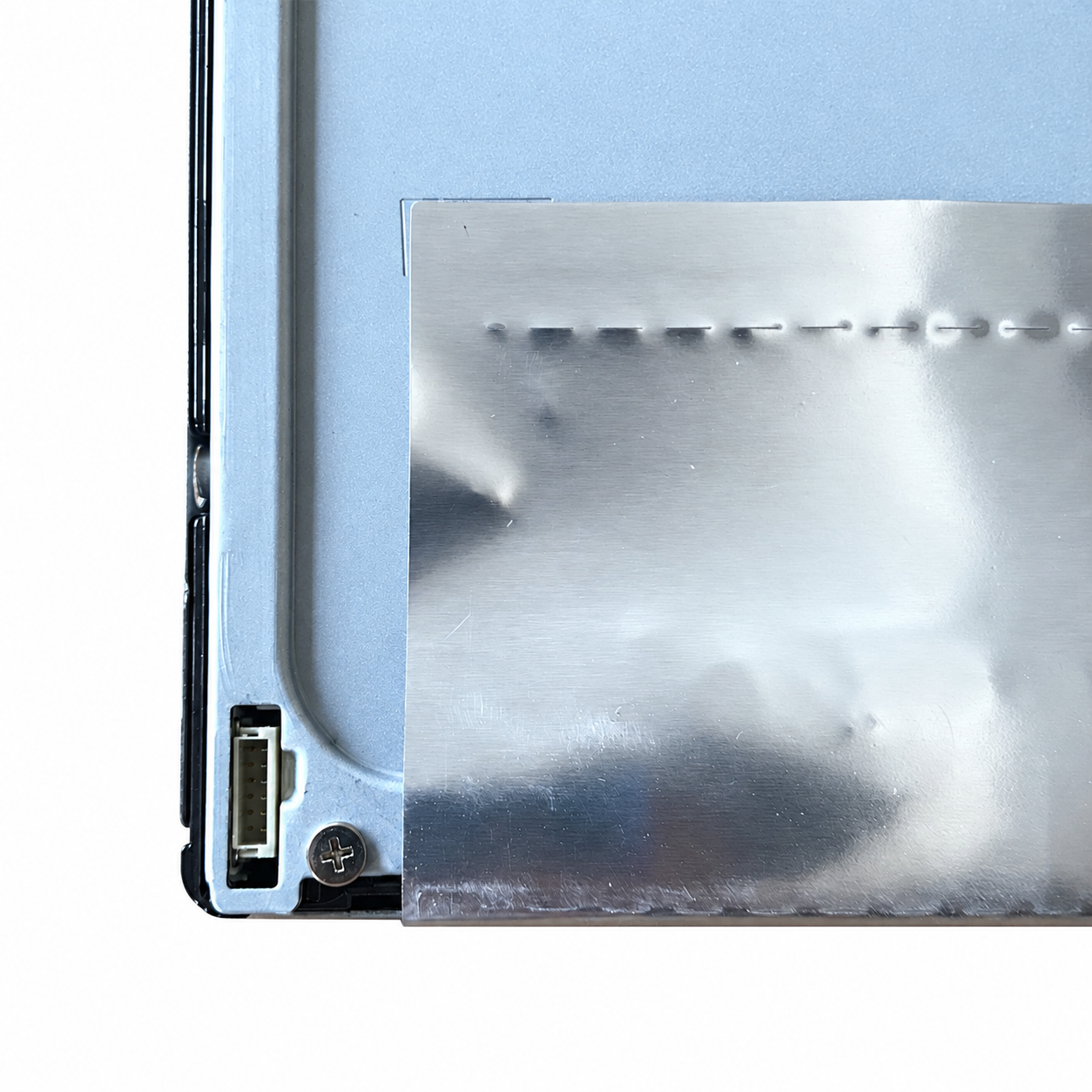

The module outline is 497.6 × 292.2 × 11 mm. Compare the mounting points, connector orientation and cable routing with the equipment drawing. Although SLS1 and SLS2 share several headline specifications, the suffix must remain part of the purchase specification and controller validation.
XIANHENG supports LCD sourcing and custom display projects. Share your requirements so the quotation can cover the panel and the assembly work your project needs.
Browse our industrial LCD screen collection or review PCAP and resistive touch selection when planning the display assembly.
Matching size, resolution and interface family does not establish interchangeability. Confirm pin assignment, timing, backlight requirements and mechanical details for the exact suffix before approving a substitution.
The collected reference lists 11.05 W typical. Use the relevant panel datasheet and the selected backlight-driver configuration to establish the complete display assembly power budget.

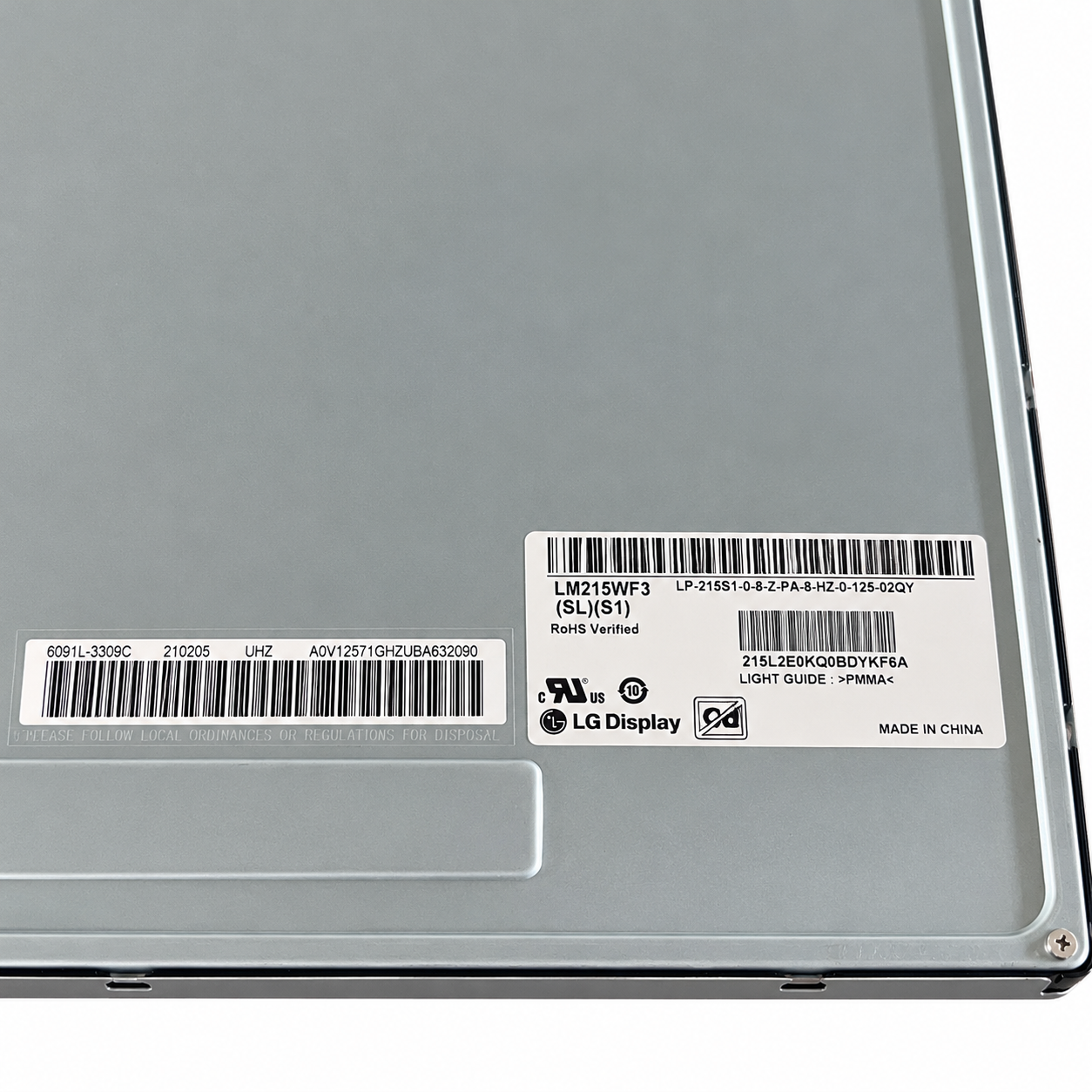

Send the full SLS1 model number, panel-label photo if available, quantity, required delivery date and controller or touch requirements. These details help define the correct supply and integration scope.
This page covers SLS1. The SLS2 suffix is a separate purchasing reference. Confirm the revision and display timing for the intended assembly.
Send the full model and revision, required quantity, application, controller interface and touch or cover-glass requirements. Availability, pricing, delivery time and the proposed configuration will be confirmed in the quotation.
