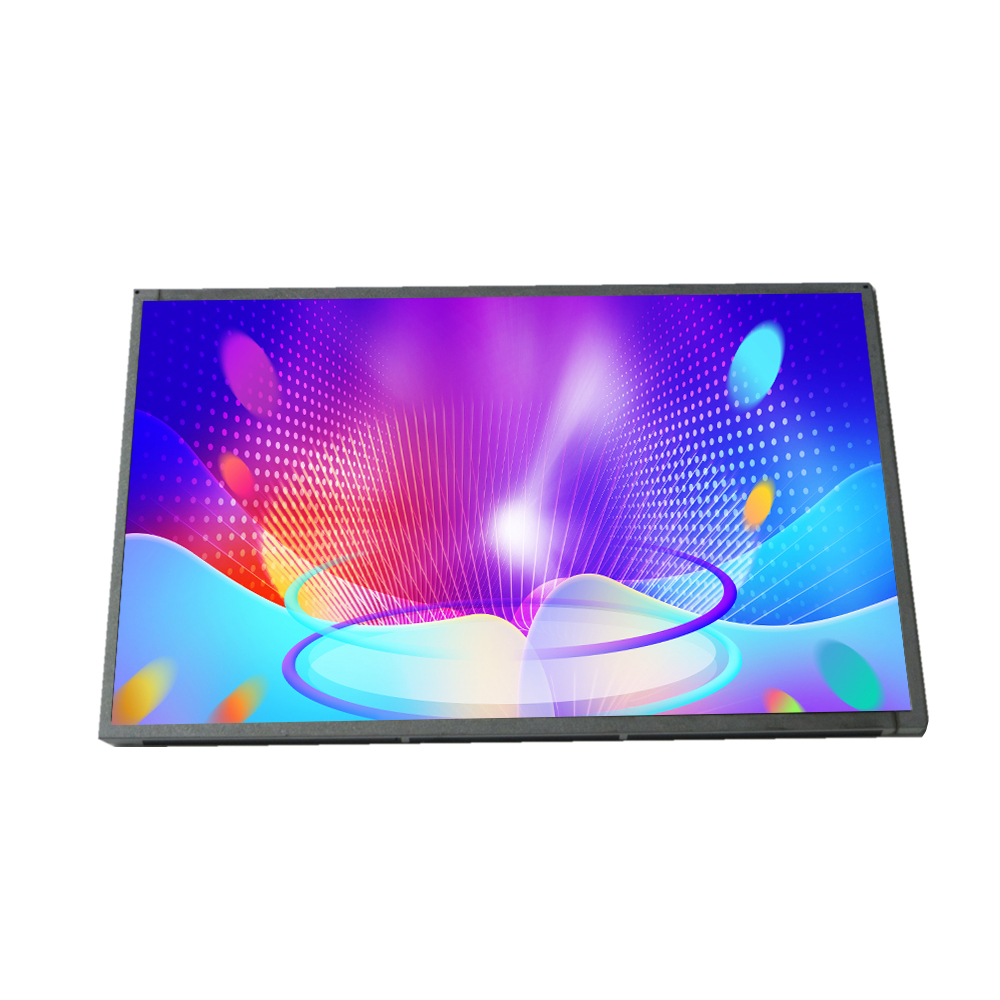

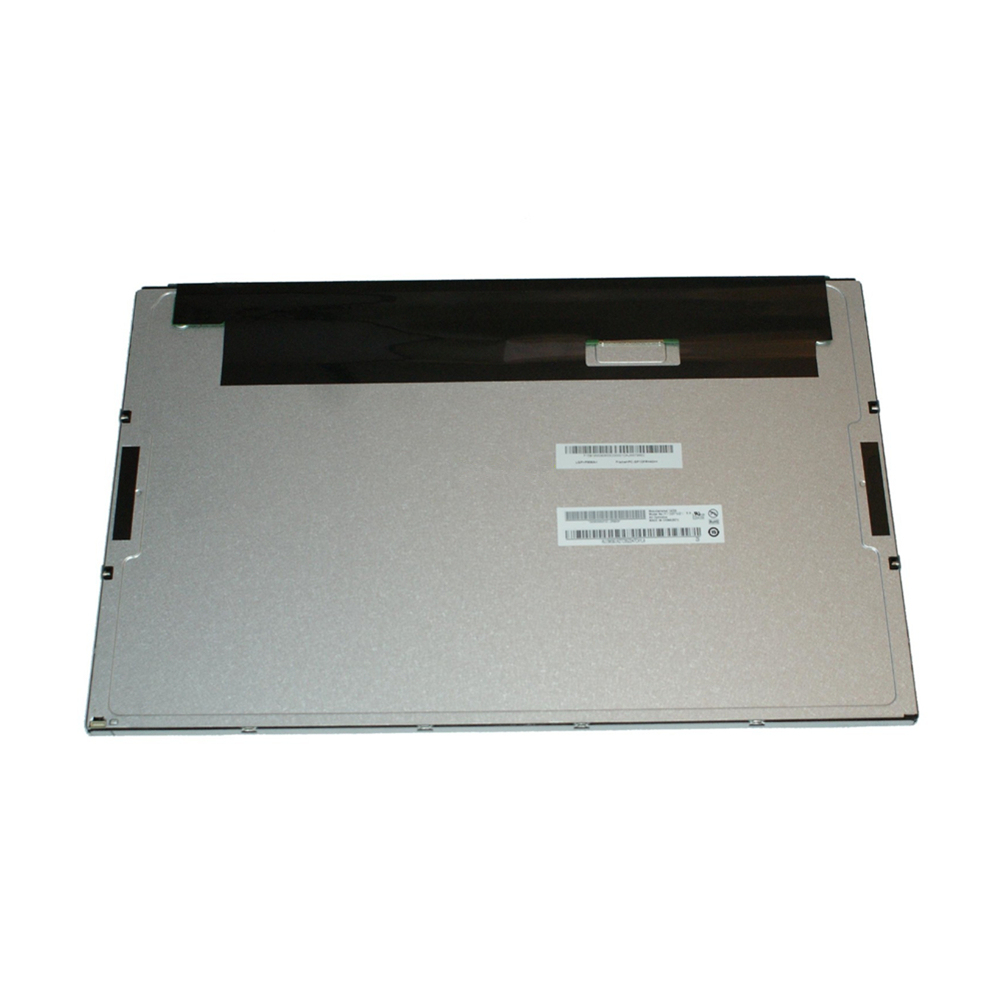

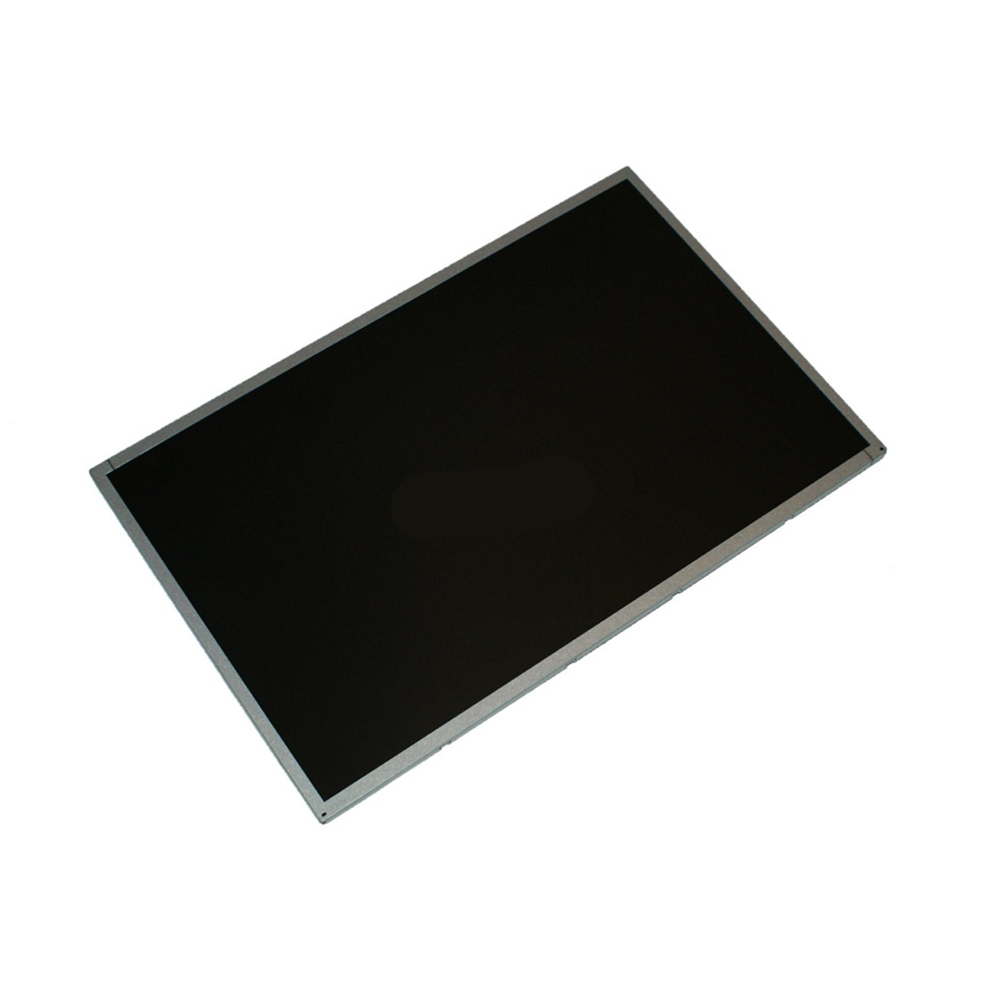

M190PW01 V8 19 inch AUO tft LCD module display screen

No.M190PW01 V8
M190PW01 V8 is AUO 19 inch a-Si TFT-LCD display panel product with an integral WLED backlight system, without backlight driver, without touch screen. Based on its features, we recommend that this model be applied to Desktop Monitor etc.
  • M190PW01 V8 19 inch AUO tft LCD module display screen
  • M190PW01 V8 19 inch AUO tft LCD module display screen
  • M190PW01 V8 19 inch AUO tft LCD module display screen
  • M190PW01 V8 19 inch AUO tft LCD module display screen
  • M190PW01 V8 19 inch AUO tft LCD module display screen
Description

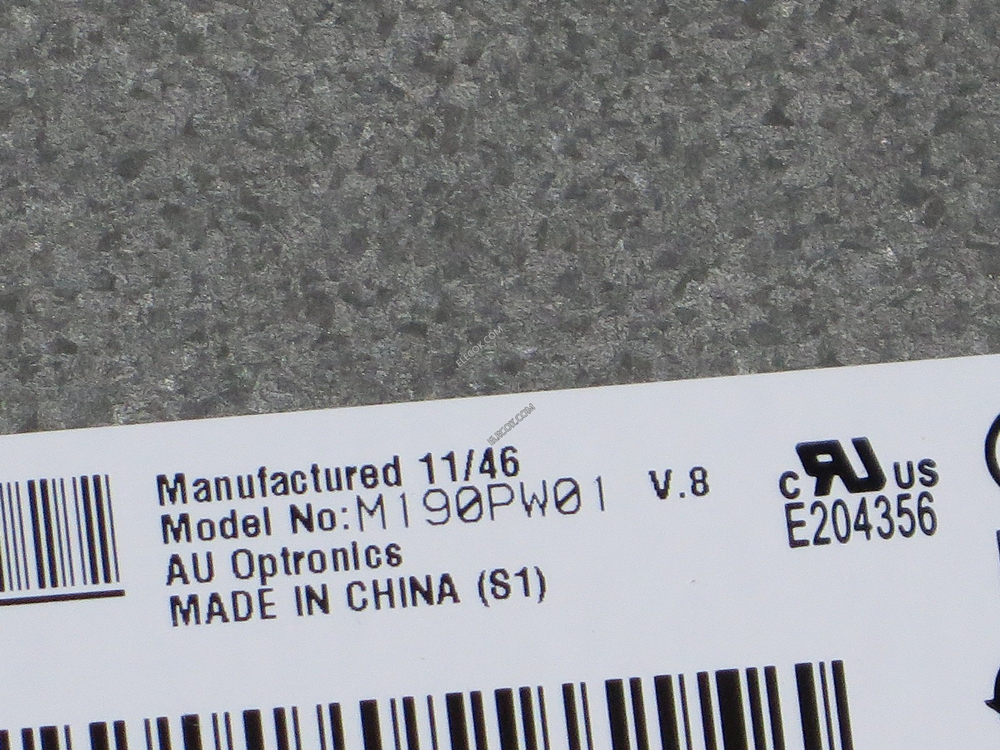

The M190PW01 V8 (Alias: M190PW01 V.8) is a 19.0 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, without backlight driver, without touch screen.



It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized in the following: WLED Backlight, Upside I/F, Matte , TCO 5.1 Compliance; PART NO.:97.19M09.800. Based on its features, we recommend that this model be applied to Desktop Monitor etc.



If you want to embed M190PW01 V8 LCM in your future product, Panelook strongly recommend that you should contact with AUO or XIANHENG TECH to learn lateast production and specification detail.

Brand AUO
Model M190PW01 V8
Diagonal Size 19.0 inch
Type a-Si TFT-LCD , LCM
Pixel Format 1440(RGB)×900  [WXGA+]  89PPI
Configuration RGB Vertical Stripe
Active Area 408.24(H)×255.15(V) mm
Outline Dim. 428(H)×278(V) ×10.8(D) mm
Bezel Area 412.24(H)×259.15(V) mm
Treatment Antiglare, Hard coating (3H)
Luminance 250 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
View Direction -
Response Time 3.6/1.4 (Typ.)(Tr/Td)
Viewing Angle 85/85/80/80 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode TN, Normally White, Transmissive
Support Color 16.7M   72% NTSC
Light Source WLED  [13S4P] , 30K hours , W/O Driver
Weight 1.45Kgs (Typ.)
Designed For Desktop Monitor
Frame Rate 60Hz
Touch Panel Without

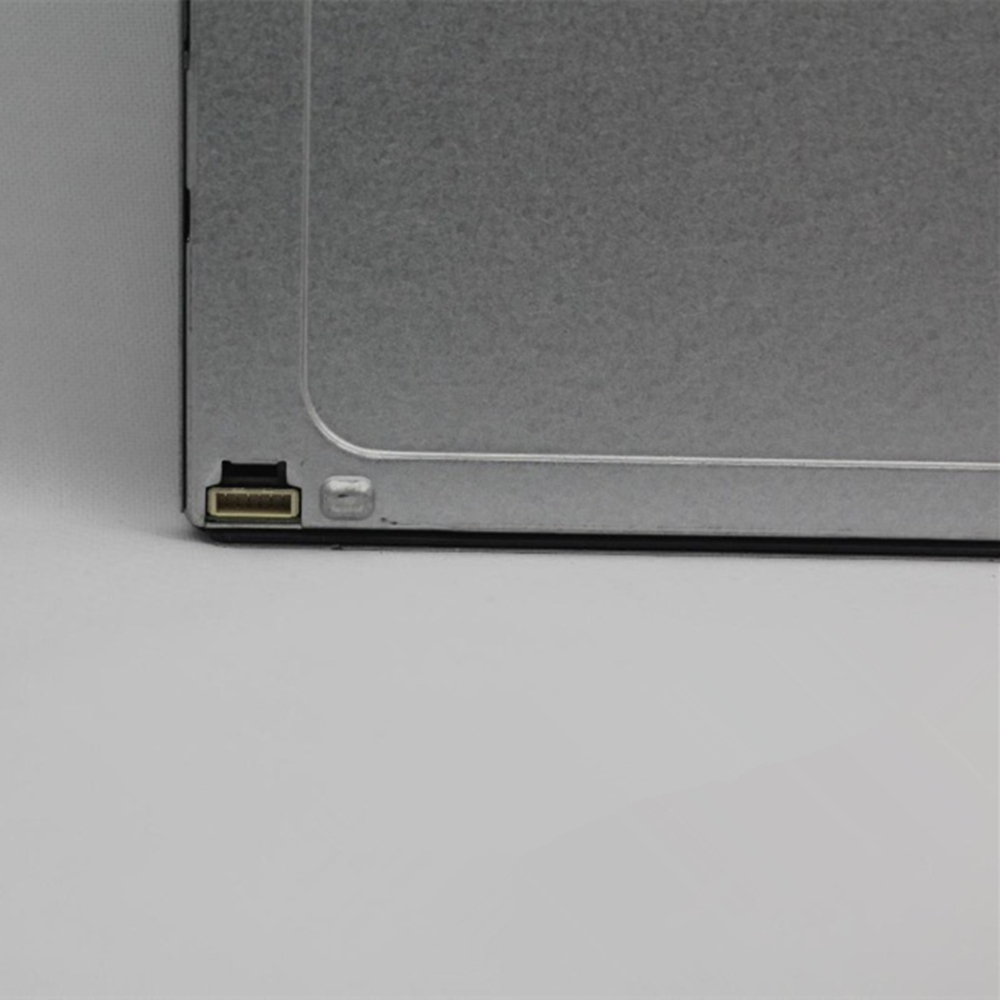

Interface Type LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply 5.0V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
