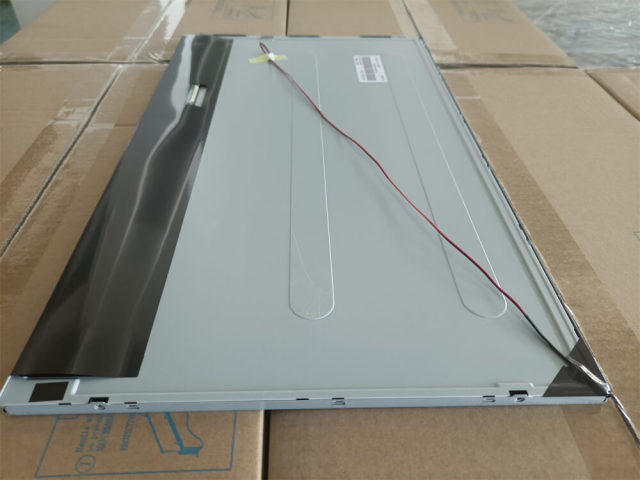

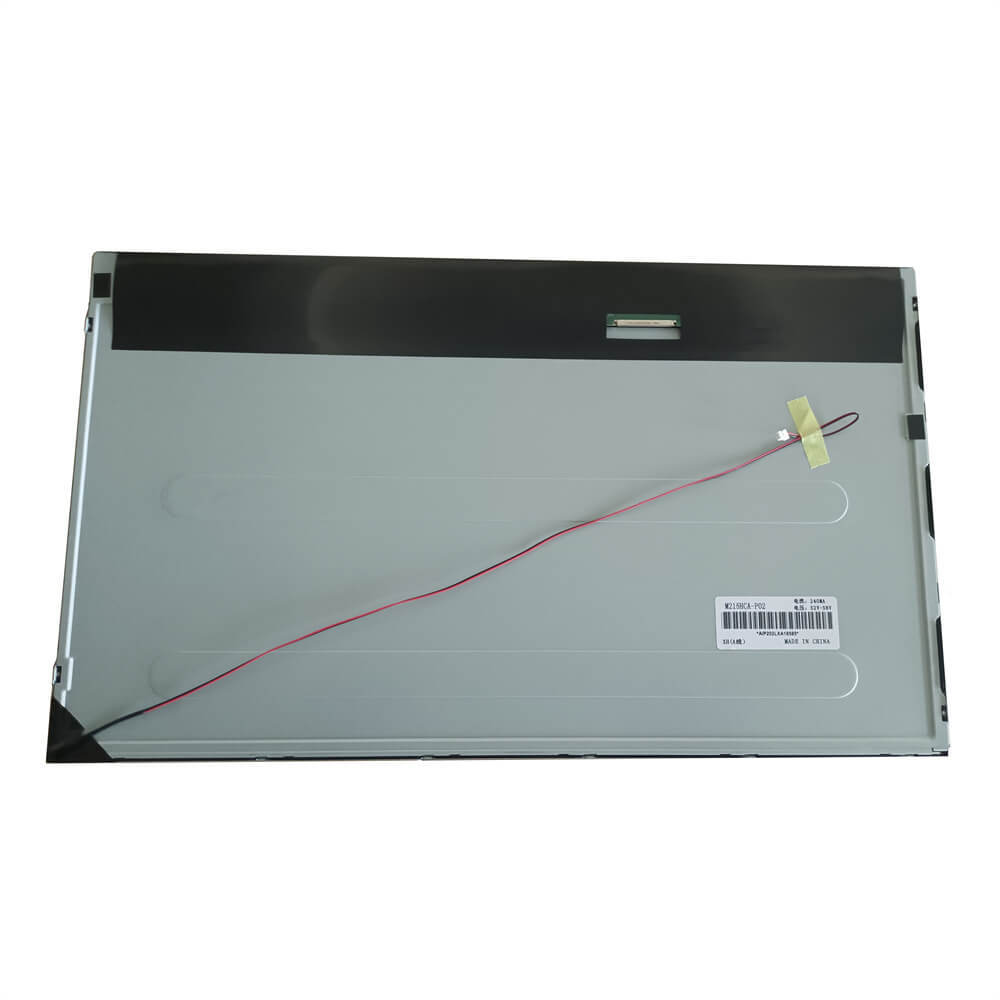

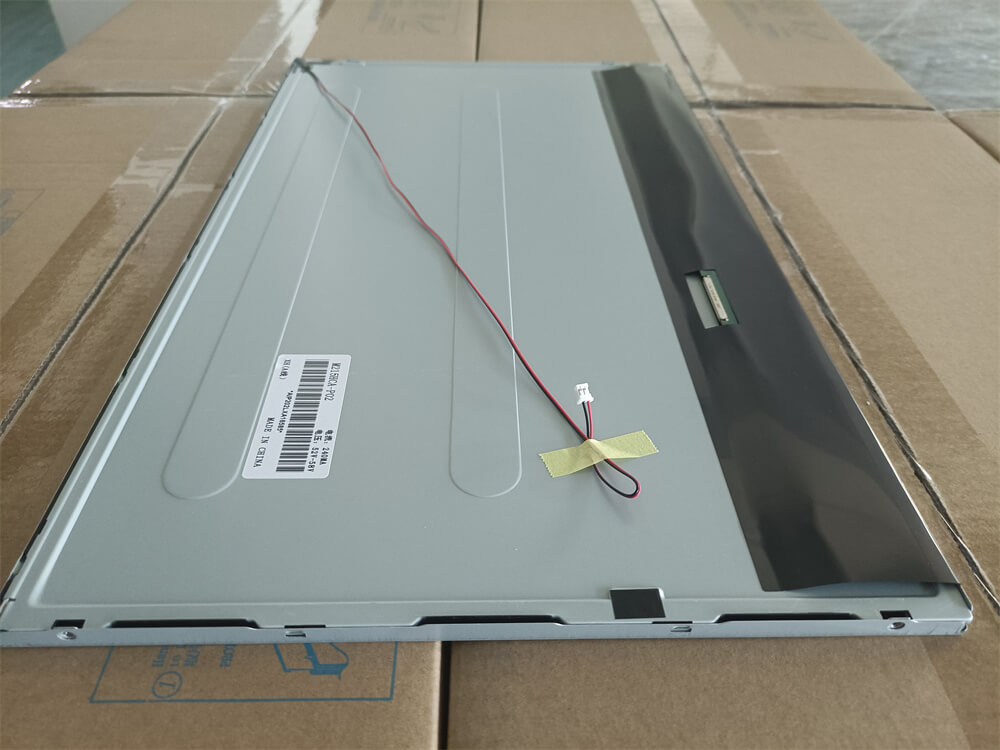

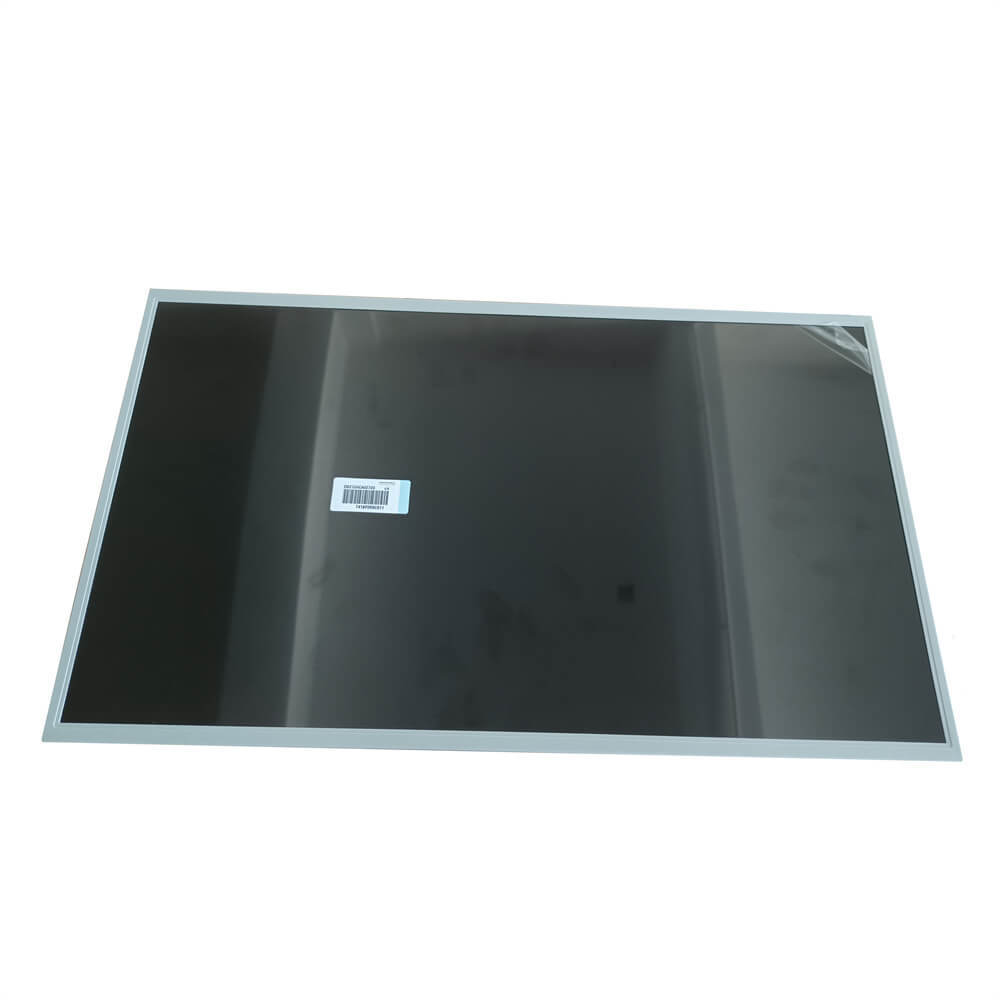

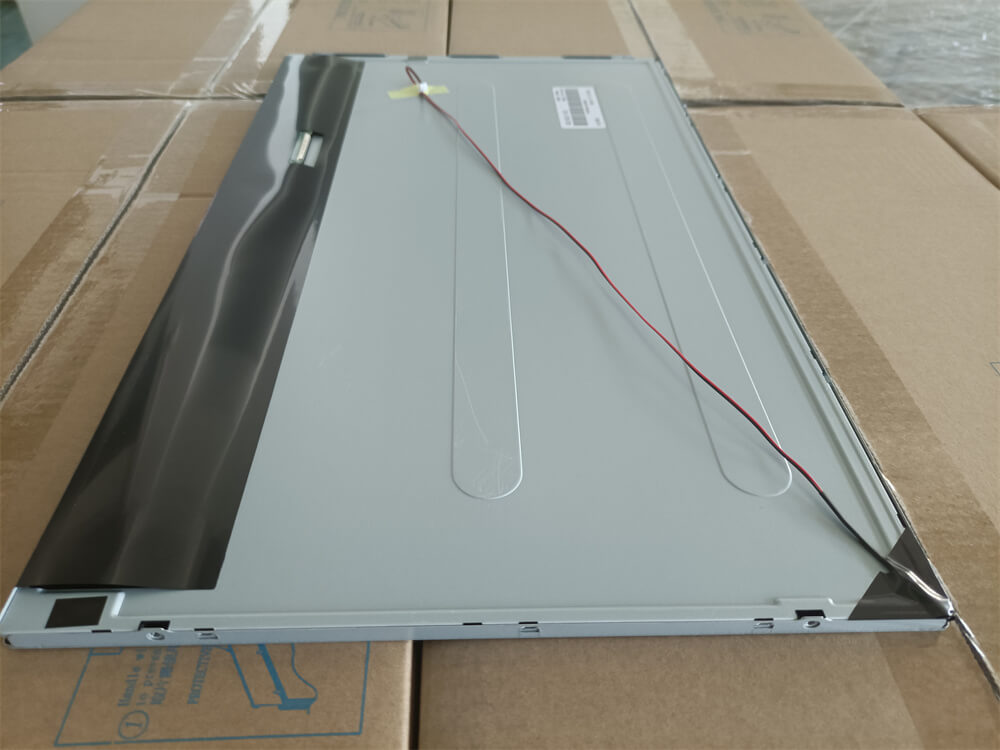

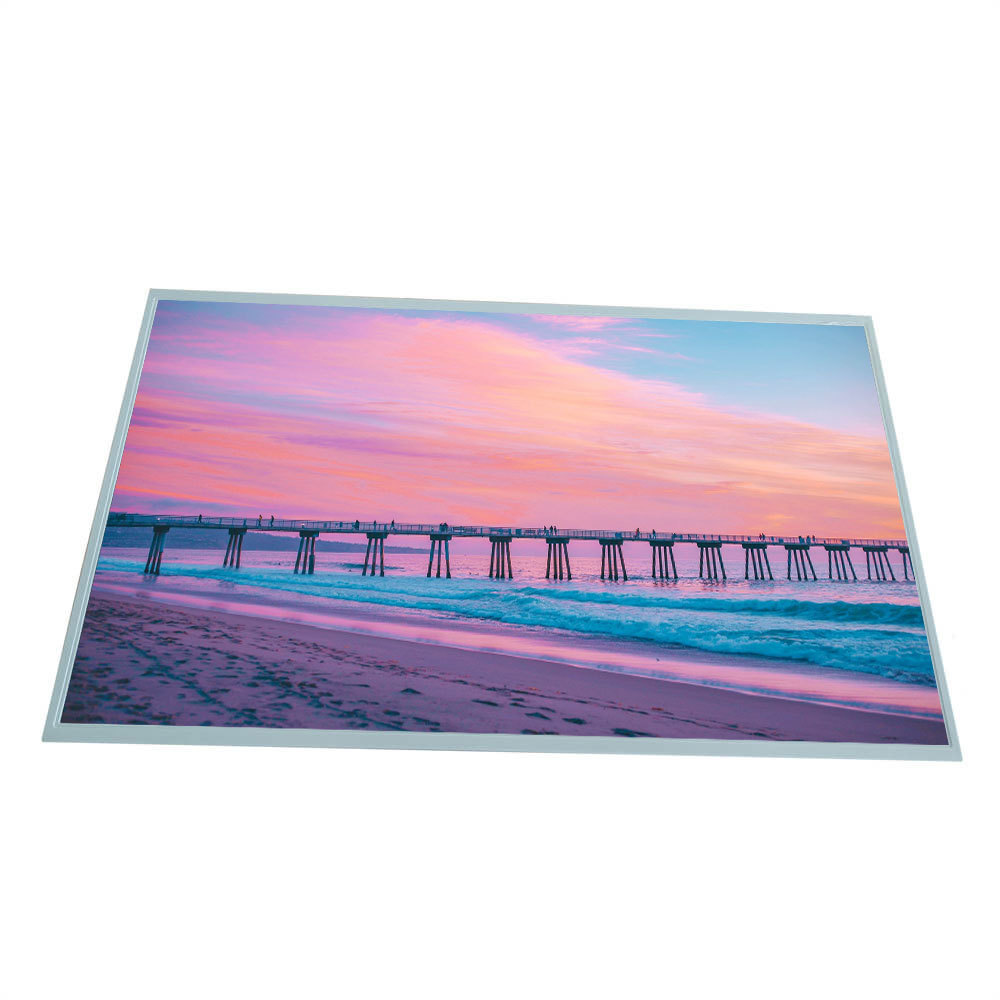

M215HCA-P02 21.5 inch screen TFT-LCD display module with 250 nits

The M215HCA-P02 is a 21.5 inch diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with WLED backlight, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C .

It's general features are summarized by Panelook in the following: Reverse I/F, Matte . Based on its features, XIANHENG recommend that this model be applied to Desktop Monitor etc.Built-in 6 source chips driver IC.

If you want to embed M215HCA-P02  in your future product, XIANHENG strongly recommend that you should contact with Innolux or XIANHENG TECH to learn lateast production and specification detail.

General Specification

Brand: Innolux

Model: M215HCA-P02

Diagonal Size: 21.5 inch

Type: a-Si TFT-LCD

Pixel Format: 1920(RGB)×1080  [FHD]  102PPI

Configuration: RGB Vertical Stripe

Active Area: 476.064(H)×267.786(V) mm

Outline Dim.: 484.26(H)×279.486(V) ×1.3(D) mm

Bezel Area: -

Treatment: Antiglare (Haze 25%), Hard coating (3H)

Luminance: 250 cd/m²

Contrast Ratio: 1000:1 (Typ.) (TM)

View Direction: Symmetry

Response Time: 8/7 (Typ.)(Tr/Td)

Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Operating Mode: AAS, Normally Black, Transmissive

Plate Thickness: 0.50+0.50 mm

Support Color: 16.7M   72% NTSC

Light Source WLED: WLED

Designed For: Desktop Monitor

Frame Rate: 60Hz

Touch Panel: Without

D-IC Detail: COF Built-in 6 source chips

Interface Type: LVDS (2 ch, 8-bit) , 30 pins Connector

Power Supply: 5.0V (Typ.)

Environment: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
