The M215HGE-L21 is a 21.5 inch diagonal a-Si TFT-LCD display panel product from Chimei Innolux Corporation (hereafter called Chimei Innolux), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by Panelook in the following: High Color Gamut, Antiglare Surface, Wide Viewing Angle, Landscape type, White LED Backlight, Wide Aspect Ratio, Normal Signal Interface Position , Energy Star 7.0 Compliance.
| Panel Brand | Chimei Innolux |
| Panel Model | M215HGE-L21 |
| Panel Size | 21.5" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080 , FHD |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 476.64(W)×268.11(H) mm |
| Bezel Opening | 479.8(W)×271.3(H) mm |
| Outline Size | 495.6(W)×292.2(H) ×11.5(D) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 250 cd/m² (Min.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) Left / Right / Up / Down |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 1.5/3.5 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 72% (CIE1931) |
| Lamp Type | 11S4P WLED , 40K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 1.91/2.10Kgs (Typ./Max.) |
| Application | Desktop Monitor |

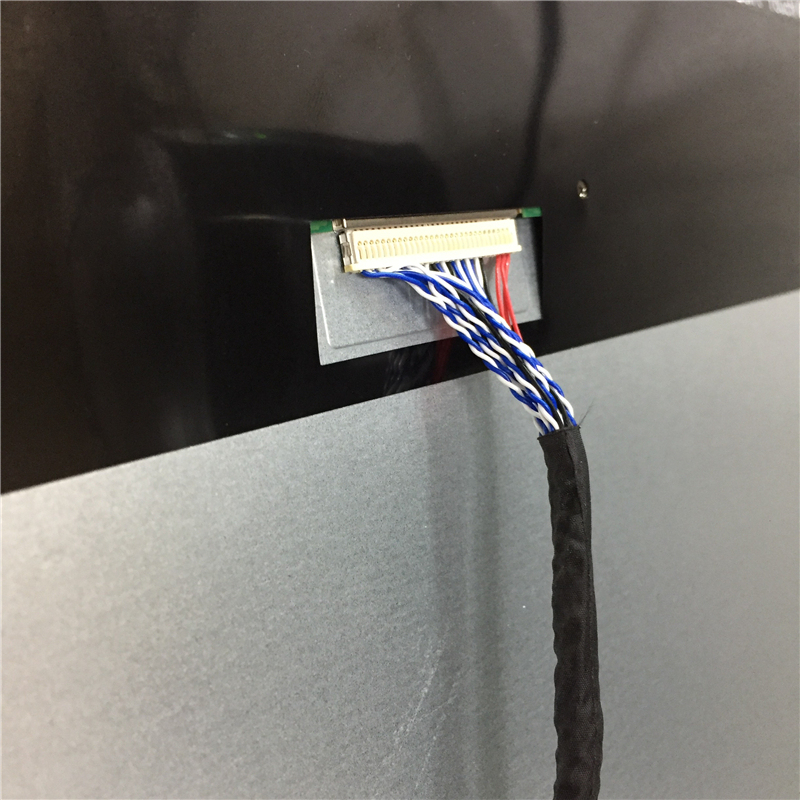

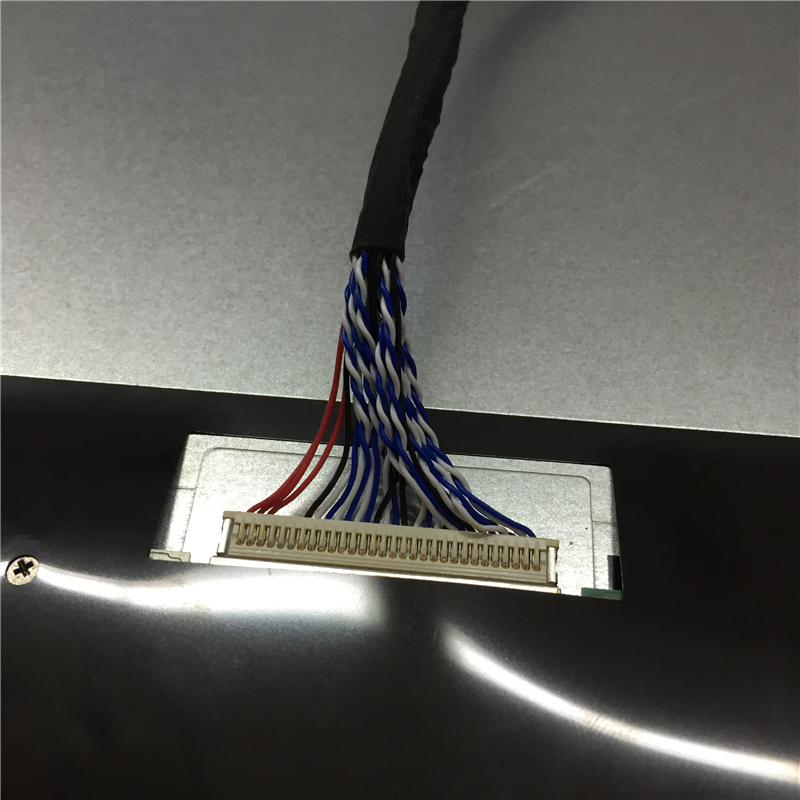

| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins , Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
