M215HJJ-P02 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
| Brand | Innolux |
| Model | M215HJJ-P02 |
| Diagonal Size | 21.5 inch |
| Type | a-Si TFT-LCD |
| Pixel Format | 1920(RGB)×1080 [FHD] |
| Configuration | RGB Vertical Stripe |
| Active Area | 476.064(H)×267.786(V) mm |
| Outline Dim. | 487.664(H)×279.286(V) ×1.288(D) mm |
| Bezel Area-Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 300 cd/m² |
| Contrast Ratio | 3000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 20/5 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥20) Left / Right / Up / Down |
| Operating Mode | MVA, Normally Black, Transmissive |
| Plate Thickness | 0.50+0.50 mm |
| Support Color | 16.7M 72% (CIE1931) |
| Light Source | WLED |
| Designed For | Desktop Monitor |
| Frame Rate | 60Hz |
| Touch Panel | Without |

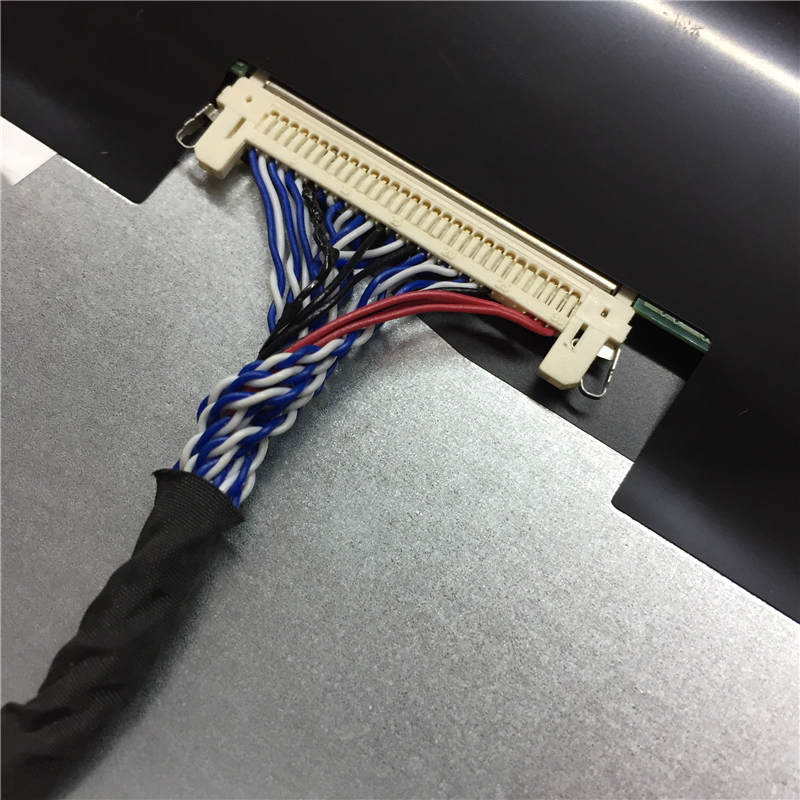

| Interface Type | 30 pins LVDS (2 ch, 8-bit) , Connector |
| Power Supply | 5.0V (Typ.) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
