Name: M215HJJ-P02 21.5 inch lcd screen display module with 450 nits for outdoor use
Brand: XIANHENG | China LCD display supplier | SHENZHEN LCD module manufacturer
SKU: M215HJJ-P02(450nits)
Availability: InStock
Rating: 5 (1 reviews)

Home > Hotsale lcd screens

M215HJJ-P02 21.5 inch lcd screen display module with 450 nits for outdoor use

Description Review

Description

M215HJJ-P02 with brightness 450 nits is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.

Brand	Innolux
Model	M215HJJ-P02
Diagonal Size	21.5 inch
Type	a-Si TFT-LCD, CELL
Pixel Format	1920(RGB)×1080 [FHD]
Configuration	RGB Vertical Stripe
Active Area	476.064(H)×267.786(V) mm
Outline Dim.	487.664(H)×279.286(V) ×1.288(D) mm
Bezel Area-Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	450 cd/m²
Contrast Ratio	3000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	20/5 (Typ.)(Tr/Td)
Viewing Angle	89/89/89/89 (Typ.)(CR≥20) Left / Right / Up / Down
Operating Mode	MVA, Normally Black, Transmissive
Plate Thickness	0.50+0.50 mm
Support Color	16.7M 72% (CIE1931)
Light Source	WLED
Designed For	Desktop Monitor
Frame Rate	60Hz
Touch Panel	Without

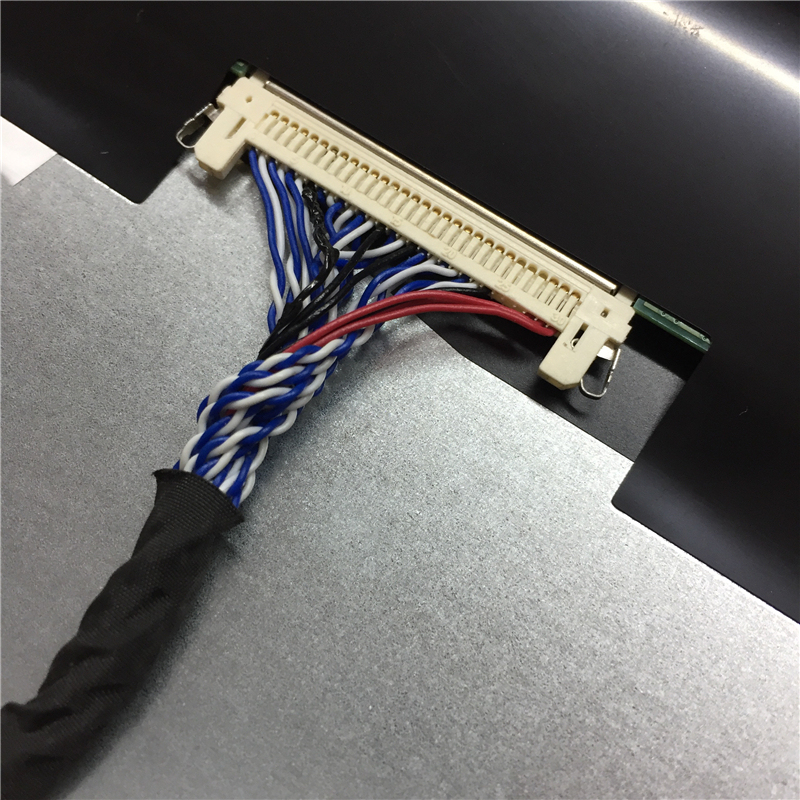

Interface Type	30 pins LVDS (2 ch, 8-bit) , Connector
Power Supply	5.0V (Typ.)
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C
