M270HCJ-L5B INNOLUX 27 inch 3-side boderless lcd display

Item No.: M270HCJ-L5B
Innolux M270HCJ-L5B is a 27.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen.
Description Review
Description

Innolux M270HCJ-L5B is a 27.0 inch diagonal a-Si TFT-LCD display panel product, Micro Edge Design, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C .

It's general features are summarized in the following: 3-side boderless, WLED Backlight, Reverse I/F, Matte , 3-sides boderless. Based on its features, Panelook recommend that this model be applied to Desktop Monitor etc.

If you want to embed M270HCJ-L5B LCM in your future product, we strongly recommend that you should contact with Innolux or XIANHENG TECH to learn lateast production and specification detail.

 General specs:

Brand: Innolux

Model: M270HCJ-L5B

Diagonal Size: 27.0"

Type: a-Si TFT-LCD , LCM

Resolution: 1920(RGB)×1080, FHD, 81PPI

Configuration: RGB Vertical Stripe

Display Area: 597.888(W)×336.312(H) mm

Outline Size: 607.1(W)×354.1(H) ×13.7(D) mm

Bezel Area: -

Treatment: Antiglare (Haze 25%), Hard coating (3H)

Luminance: 250 cd/m² (Typ.)

Contrast Ratio: 1000:1 (Typ.) (TM)

View Direction: Symmetry

Response Time: 8/7 (Typ.)(Tr/Td)

Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Operating Mode: AAS, Normally Black, Transmissive

Support Color: 16.7M   72% NTSC

Light Source: 4 strings WLED , 30K hours , Without Driver

Weight: 2.87/3.01Kgs (Typ./Max.)

Designed For: Desktop Monitor

Frame Rate: 60Hz

Touch Panel: Without

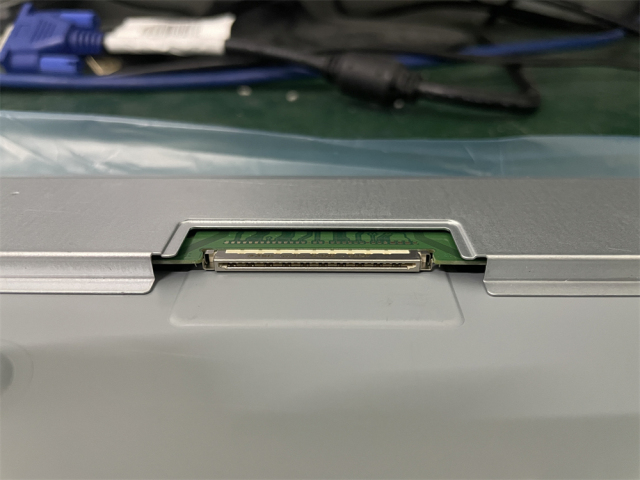

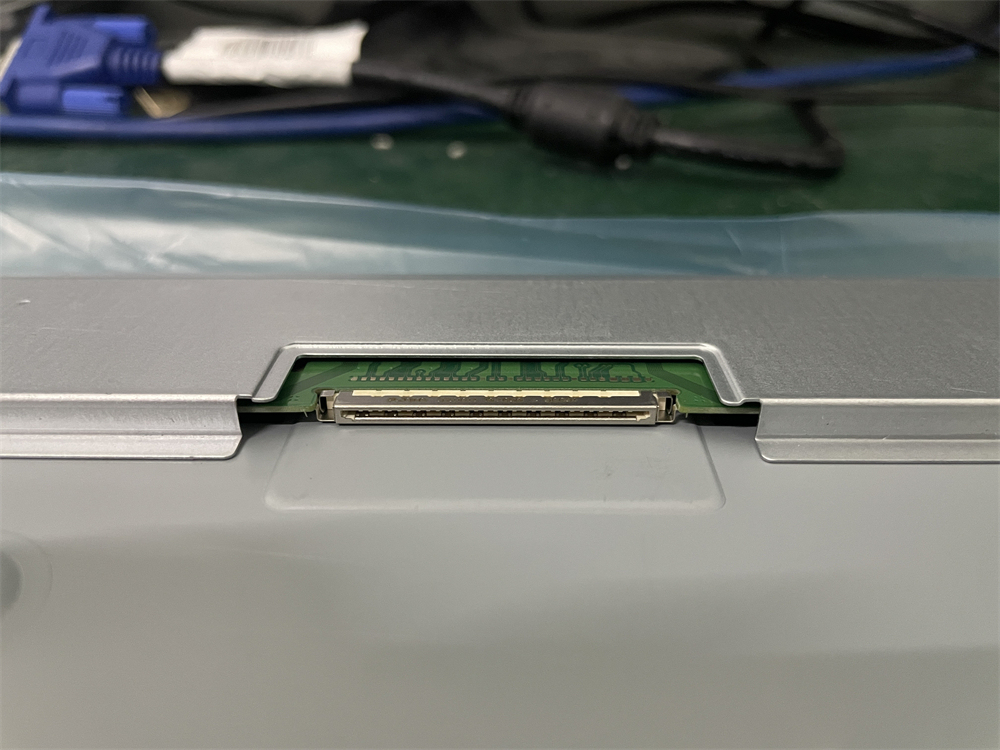

Interface Type: LVDS (2 ch, 8-bit) , 30 pins Connector

Power Supply: 5.0V (Typ.)

Environment: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
