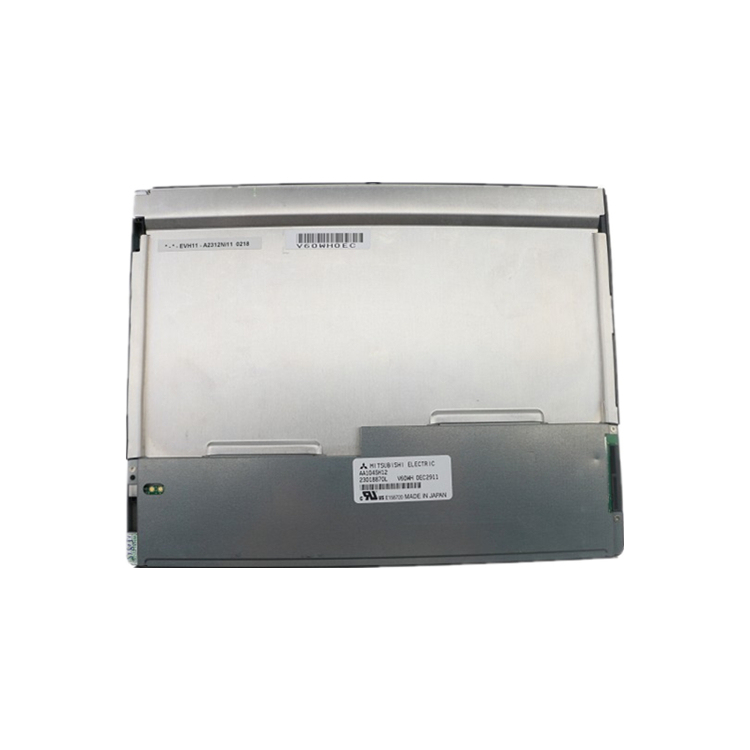

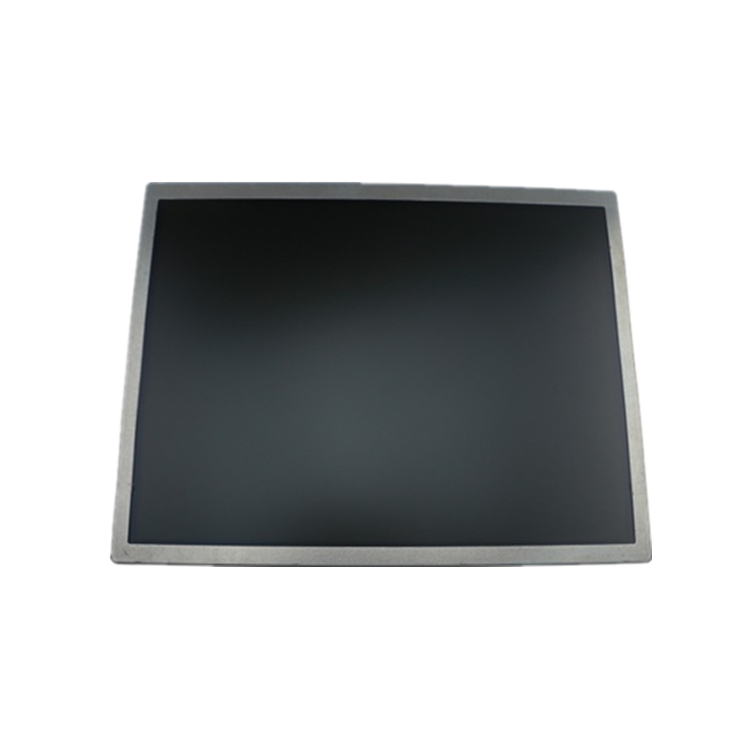

AA104SH12 mitsubishi 10.4 inch TFT-LCD display panel

Item No.: AA104SH12
AA104SH12 mitsubishi 10.4 inch TFT-LCD display panel
Description Review
Description
AA104SH12 mitsubishi 10.4 inch TFT-LCD display panel is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
 General Specification
Brand    Mitsubishi
Model    AA104SH12 Compatible Model 1 Compatible
Diagonal Size    10.4 inch
Type    a-Si TFT-LCD, LCM
Pixel Format    800(RGB)×600   [SVGA]
Configuration    RGB Vertical Stripe
Active Area    211.2(H)×158.4(V) mm
Outline Dim.    230(H)×180.2(V) ×11(D) mm
Bezel Area    215.4(H)×161.8(V) mm
Treatment    Antiglare, Hard coating (3H)
Luminance    1200 cd/m² (Typ.)
Contrast Ratio    700:1 (Typ.) (TM)
View Direction    6 o'clock
Response Time    4/12 (Typ.)(Tr/Td)
Viewing Angle    80/80/80/60 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode    TN, Normally White, Transmissive
Support Color    262K/16.7M   40% (CIE1931)
Light Source    WLED  [4 strings] , 100K hours , W/O Driver
Weight    520g (Typ.)
Designed For    Industrial Application
Frame Rate    60Hz
Touch Panel    Without
Interface Type    20 pins   LVDS (1 ch, 6/8-bit) , Connector
Power Supply    3.3V (Typ.)
Environment    Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C
