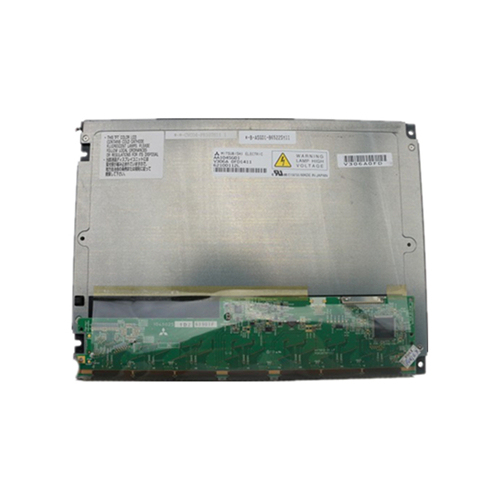

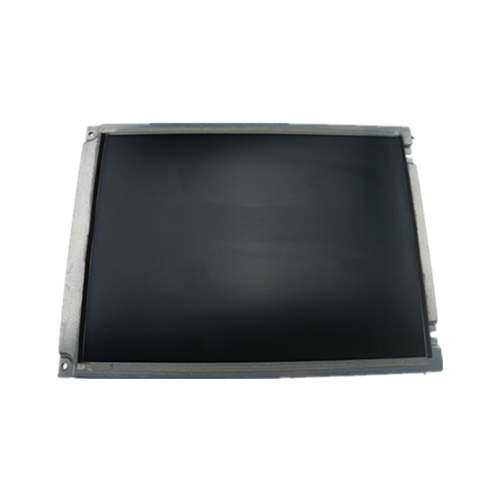

AA104SG01 mitsubishi 10.4 inch TFT-LCD display panel

Description Review

Description

AA104SG01 mitsubishi 10.4 inch TFT-LCD display panel is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.

General Specification

Manufacturer   Mitsubishi
Model Name   AA104SG01 Compatible Model 1 Compatible
Screen Size   10.4 inch
Screen Type   LCM ,   a-Si TFT-LCD
Pixel Number   800(RGB)×600   (SVGA)
Arrangement   RGB Vertical Stripe
Active Area(mm)   211.2 × 158.4 (H×V)
Outline(mm)   243 × 181.6 × 12.7 (H×V×D)
Bezel Area(mm)   215.4 × 161.8 (H×V)
Treatment   Antiglare, Hard coating (3H)
Luminance   400 cd/m² (Typ.)
Contrast Ratio   500 : 1 (Typ.) (TM)
Viewing Angle   70/70/50/60 (Typ.)(CR≥10) Left / Right / Up / Down
Response   6/19 (Typ.)(Tr/Td) ms
Good View   at6 o'clock
Work Mode   TN, Normally White, Transmissive
Color Depth   262K/16.7M   40% (CIE1931)
Backlight   2 pcs CCFL , 50K hours , No Driver
Mass   570g (Typ.)
Used for   Industrial Application
Refresh Rate   60Hz
Touchscreen   Without
Signal Type   LVDS (1 ch, 6/8-bit) , Connector , 20 pins
Voltage Supply   3.3V (Typ.)
Max. Ratings   Storage Temp.: -20 ~ 80 °C    Operating Temp.: -20 ~ 70 °C
