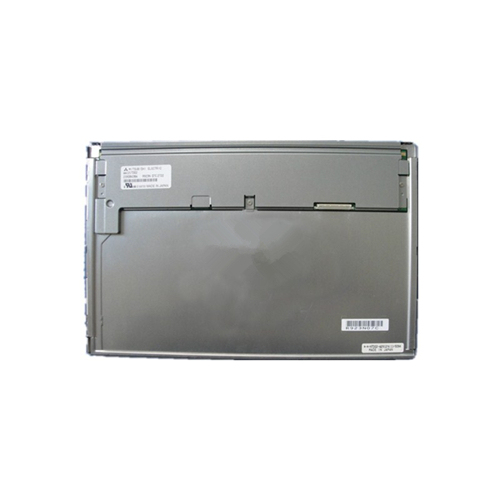

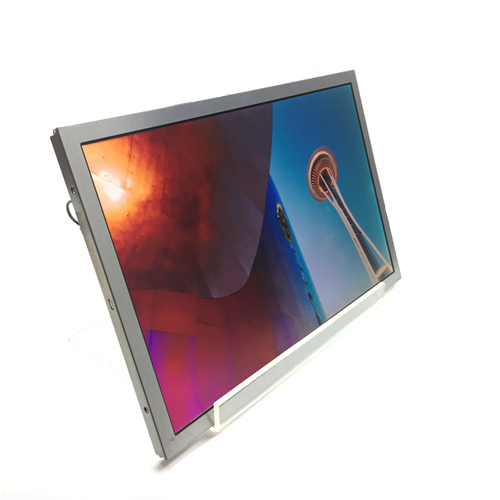

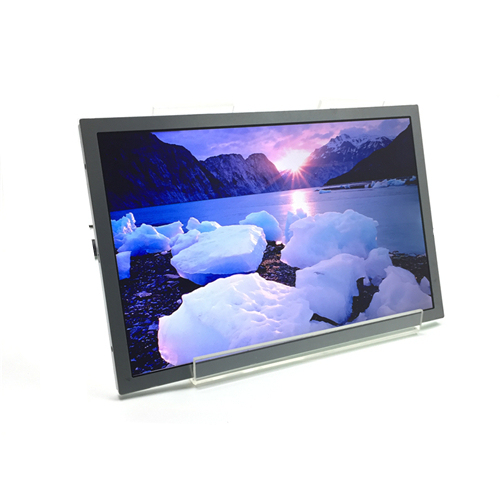

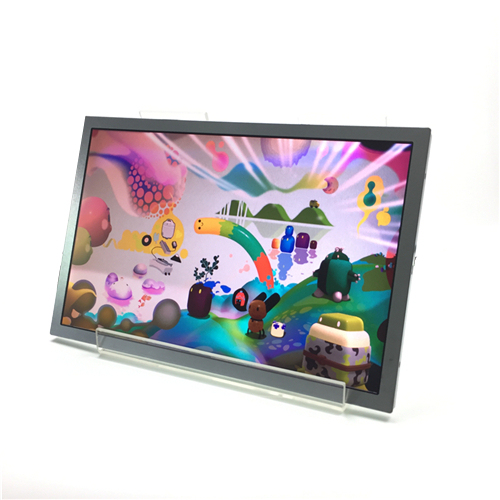

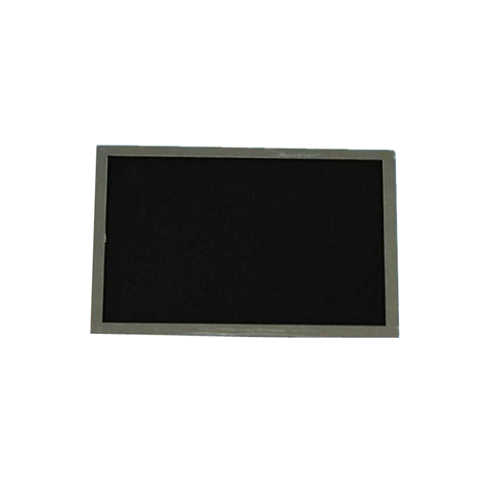

AA121TD02 mitsubishi 12.1 inch TFT-LCD display panel is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
General Specification
Panel Brand Mitsubishi
Panel Model AA121TD02
Panel Size 12.1 inch
Panel Type a-Si TFT-LCD , LCM
Resolution 1280(RGB)×800 , WXGA
Pixel Format RGB Vertical Stripe
Display Area 261.12(W)×163.2(H) mm
Bezel Opening 263.52(W)×165.60(H) mm
Outline Size 283(W)×185.1(H) ×10.2(D) mm
Surface Antiglare, Hard coating (3H)
Brightness 450 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 80/80/80/60 (Typ.)(CR≥10) Left / Right / Up / Down
Display Mode TN, Normally White, Transmissive
Best View on 6 o'clock
Response Time 4/12 (Typ.)(Tr/Td)
Display Colors 262K/16.7M 40% (CIE1931)
Lamp Type WLED , 100K hours , Embedded (LED Driver)
Frequency 60Hz
Touch Screen Without
Panel Weight 620g (Typ.)
Application Game Machine Industrial Application
Signal Interface LVDS (1 ch, 6/8-bit) , 20 pins , Connector
Input Voltage 3.3V (Typ.)
Environment Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C
