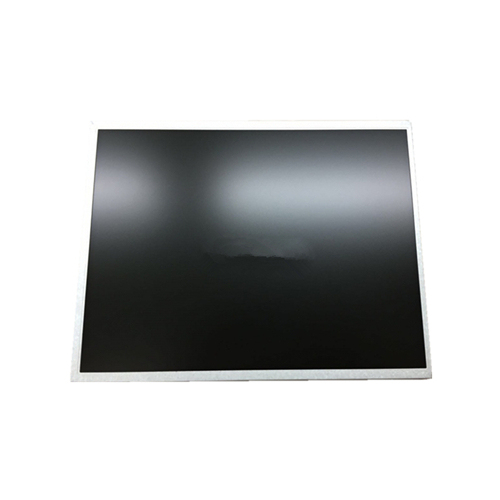

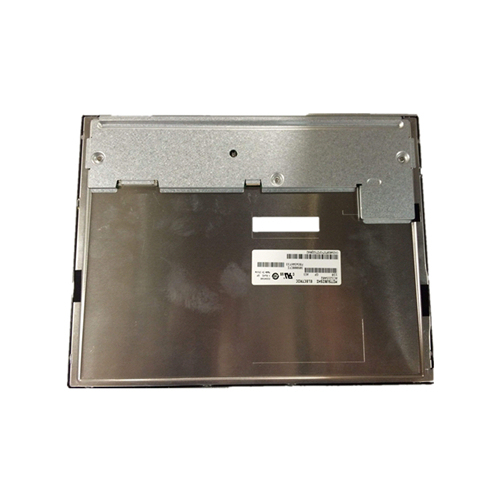

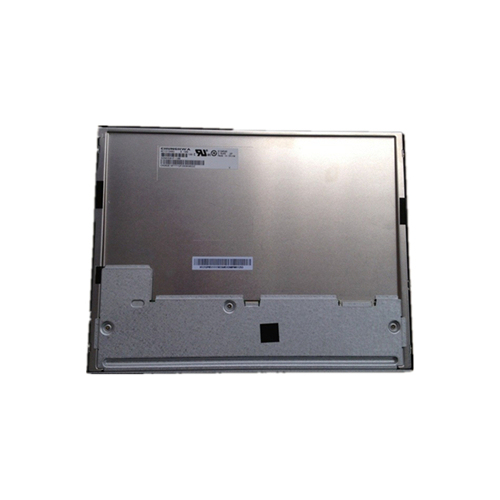

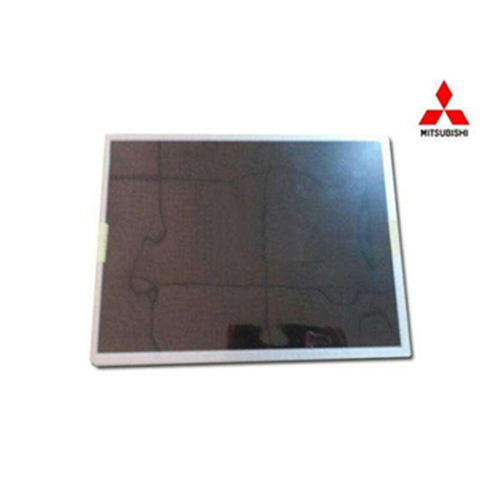

AC121SA02 mitsubishi 12.1 inch TFT-LCD display panel

Item No.: AC121SA02
AC121SA02 mitsubishi 12.1 inch TFT-LCD display panel is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
Description

12.1 inch industrial TFT-LCD 800*600 SVGA 500 cd/m2 tablet Panel sun readable AC121SA02 Mitsubishi no touchscreen

AC121SA02 mitsubishi 12.1 inch TFT-LCD display panel is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.


 General Specification
Panel Brand    Mitsubishi
Panel Model    AC121SA02
Panel Size    12.1 inch
Panel Type    a-Si TFT-LCD, LCM
Resolution    800(RGB)×600 , SVGA
Pixel Format    RGB Vertical Stripe
Display Area    246(W)×184.5(H) mmBezel
Opening    249.0(W)×187.5(H) mm
Outline Size    260.5(W)×203(H) ×10(D) mm
Surface    Antiglare, Hard coating (3H)
Brightness    500 cd/m² (Typ.)
Contrast Ratio    800:1 (Typ.) (TM)
Viewing Angle    80/80/60/80 (Typ.)(CR≥10) Left / Right / Up / Down
Display Mode    TN, Normally White, Transmissive
Best View on    6 o'clock
Response Time    4/12 (Typ.)(Tr/Td)
Display Colors    262K/16.7M   72% (CIE1931)
Lamp Type    WLED , 100K hours , Embedded (LED Driver)
Frequency    60Hz
Touch Screen    Without
Panel Weight    580g (Typ.)
Application    Industrial Application
Signal Interface    LVDS (1 ch, 6/8-bit) , 20 pins , Connector
Input Voltage    3.3V (Typ.)
Environment    Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C
