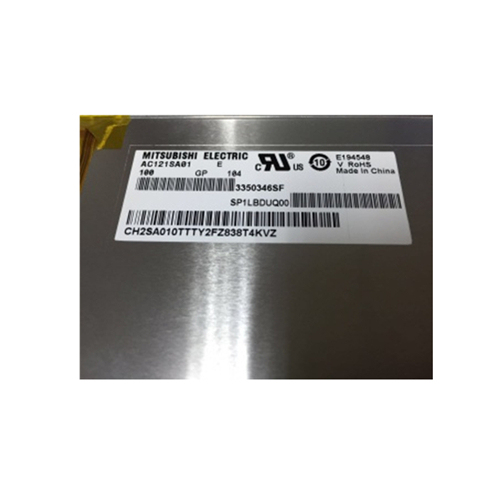

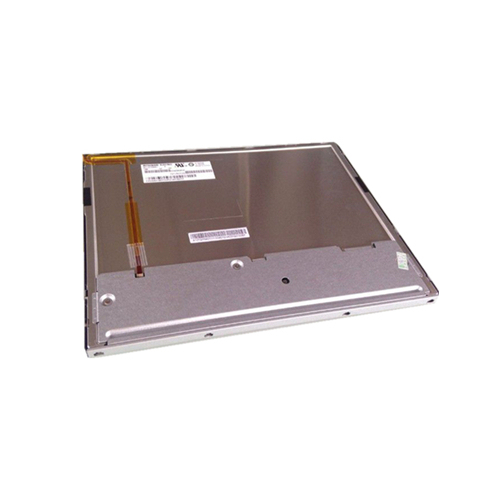

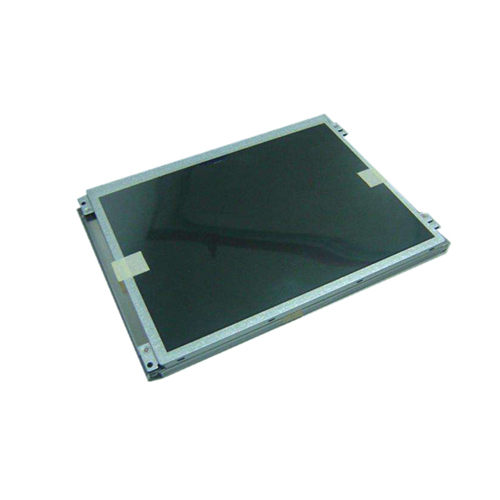

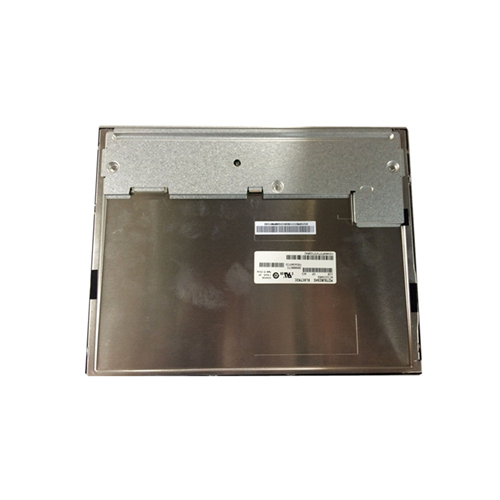

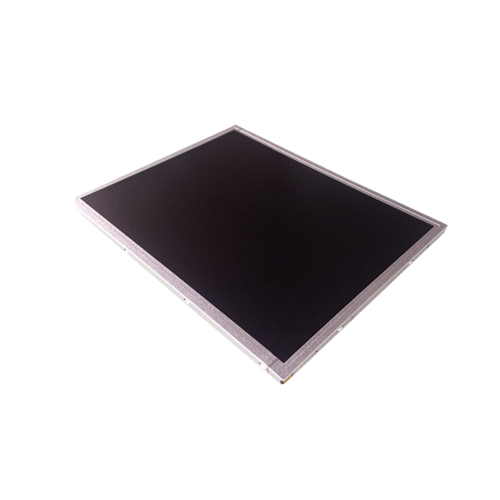

AC121SA01 mitsubishi 12.1 inch TFT-LCD display panel

No.AC121SA01
AC121SA01 mitsubishi 12.1 inch TFT-LCD display panel is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
  • AC121SA01 mitsubishi 12.1 inch TFT-LCD display panel
  • AC121SA01 mitsubishi 12.1 inch TFT-LCD display panel
  • AC121SA01 mitsubishi 12.1 inch TFT-LCD display panel
  • AC121SA01 mitsubishi 12.1 inch TFT-LCD display panel
  • AC121SA01 mitsubishi 12.1 inch TFT-LCD display panel
Description

AC121SA01 mitsubishi 12.1 inch TFT-LCD display panel is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.

 General Specification
Brand    Mitsubishi
Diagonal Size    12.1 inch
Model    AC121SA01
Type    a-Si TFT-LCD , LCM
Pixel Format    800(RGB)×600   [SVGA]
Active Area    246(H)×184.5(V) mm
Bezel Area    249.0(H)×187.5(V) mm
Luminance    450 cd/m² (Typ.)
View Direction    6 o'clock
Viewing Angle    80/80/60/80 (Typ.)(CR≥10) Left / Right / Up / Down
Support Color    262K/16.7M   72% (CIE1931)
Weight    580g (Typ.)
Frame Rate    60Hz
Configuration    RGB Vertical Stripe
Outline Dim.    260(H)×203(V) ×10(D) mm
Treatment    Antiglare, Hard coating (3H)
Contrast Ratio    800:1 (Typ.) (TM)
Response Time    4/12 (Typ.)(Tr/Td)
Operating Mode    TN, Normally White, Transmissive
Light Source    WLED , 100K hours , Embedded (LED Driver)
Designed For    Industrial Application
Touch Panel    Without
Interface Type    20 pins   LVDS (1 ch, 6/8-bit) , Connector
Power Supply    3.3V (Typ.)
Environment    Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C
