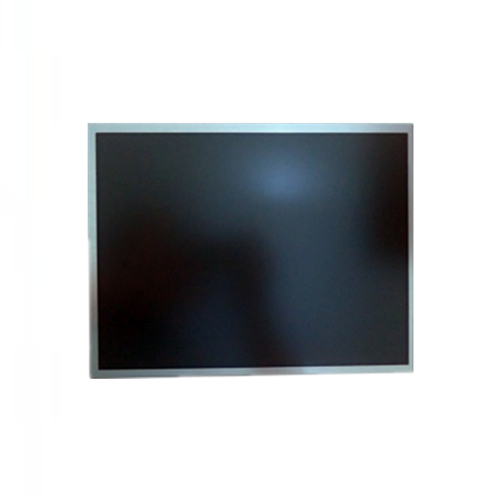

AA121XL01 mitsubishi 12.1 inch TFT-LCD display panel
No.AA121XL01
AA121XL01 mitsubishi 12.1 inch TFT-LCD display panel is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
AA121XL01 mitsubishi 12.1 inch TFT-LCD display panel is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
General Specification
Panel Brand Mitsubishi
Panel Model AA121XL01
Panel Size 12.1 inch
Panel Type a-Si TFT-LCD, LCM
Resolution 1024(RGB)×768 , XGA
Pixel Format RGB Vertical Stripe
Display Area 245.76(W)×184.32(H) mm
Bezel Opening 249.0(W)×187.5(H) mm
Outline Size 260.5(W)×203(H) ×10.2(D) mm
Surface Antiglare, Hard coating (3H)
Brightness 1000 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 80/80/60/80 (Typ.)(CR≥10) Left / Right / Up / Down
Display Mode TN, Normally White, Transmissive
Best View on 6 o'clock
Response Time 6/19 (Typ.)(Tr/Td)
Display Colors 262K/16.7M 40% (CIE1931)
Lamp Type 4 strings WLED , 100K hours , Without Driver
Frequency 60Hz
Touch Screen Without
Panel Weight 610g (Typ.)
Application Industrial Application
Signal Interface LVDS (1 ch, 6/8-bit) , 20 pins , Connector
Input Voltage 3.3V (Typ.)
Environment Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C
