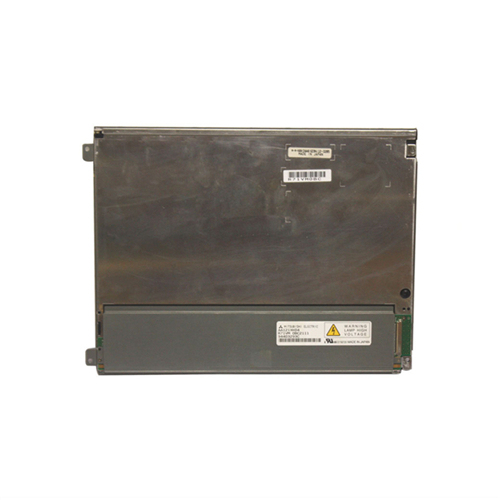

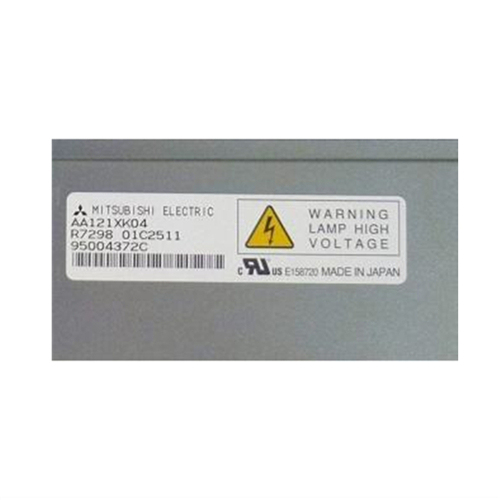

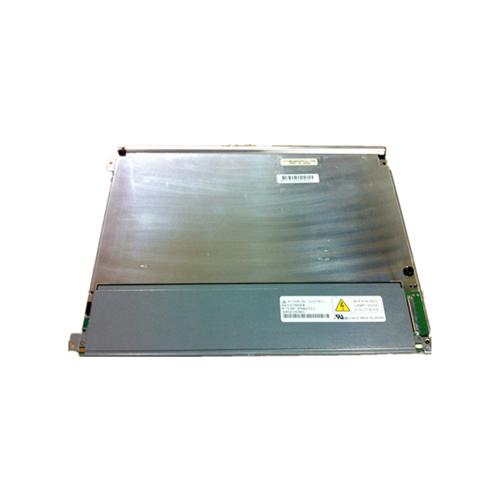

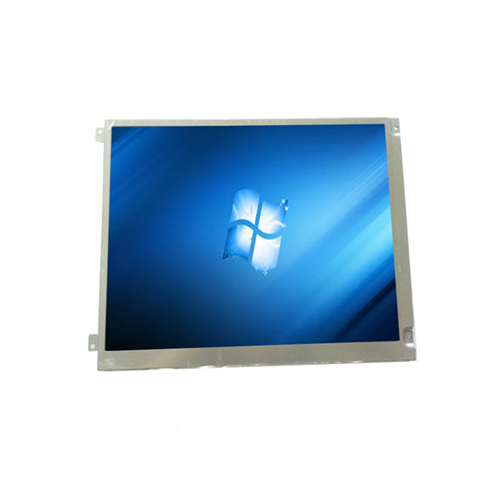

AA121XK04 mitsubishi 12.1 inch TFT-LCD display panel
No.AA121XK04
AA121XK04 mitsubishi 12.1 inch TFT-LCD display panel is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
AA121XK04 mitsubishi 12.1 inch TFT-LCD display panel is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
General Specification
Panel Brand Mitsubishi
Panel Model AA121XK04
Panel Size 12.1 inch
Panel Type a-Si TFT-LCD , LCM
Resolution 1024(RGB)×768 , XGA
Pixel Format RGB Vertical Stripe
Display Area 245.76(W)×184.32(H) mm
Bezel Opening 249.0(W)×187.5(H) mm
Outline Size 280(W)×210(H) ×12.5(D) mm
Surface Antiglare, Hard coating (3H)
Brightness 420 cd/m² (Typ.)
Contrast Ratio 550:1 (Typ.) (TM)
Viewing Angle 80/80/60/80 (Typ.)(CR≥10) Left / Right / Up / Down
Display Mode TN, Normally White, Transmissive
Best View on 6 o'clock
Response Time 6/19 (Typ.)(Tr/Td)
Display Colors 262K/16.7M 40% (CIE1931)
Lamp Type WLED , 60K hours , Without Driver
Frequency 60Hz
Touch Screen Without
Panel Weight 750g (Typ.)
Application Industrial Application
Signal Interface LVDS (1 ch, 8-bit) , 20 pins , Connector
Input Voltage 3.3V (Typ.)
Environment Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C
