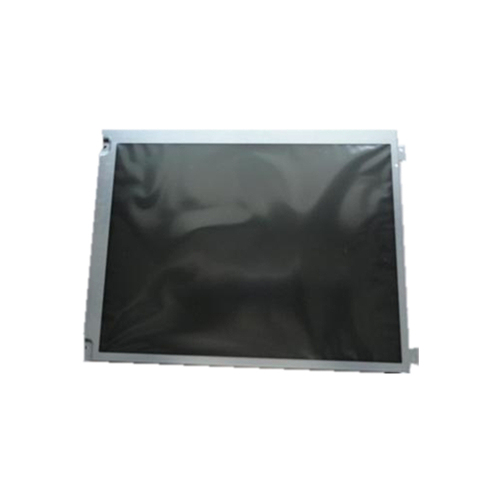

AA121XK01 mitsubishi 12.1 inch TFT-LCD display panel

Item No.: AA121XK01
AA121XK01  mitsubishi 12.1 inch TFT-LCD display panel is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
Description

AA121XK01  mitsubishi 12.1 inch TFT-LCD display panel is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.



 General Specification

Brand    Mitsubishi
Model    AA121XK01 Compatible Model 0 Compatible
Diagonal Size    12.1 inch
Type    a-Si TFT-LCD, LCM
Pixel Format    1024(RGB)×768   [XGA]
Configuration    RGB Vertical Stripe
Active Area    245.76(H)×184.32(V) mm
Outline Dim.    280(H)×210(V) ×12.5(D) mm
Bezel Area    249.0(H)×187.5(V) mm
Treatment    Antiglare, Hard coating (3H)
Luminance    500 cd/m² (Typ.)
Contrast Ratio    600:1 (Typ.) (TM)
View Direction    6 o'clock
Response Time    6/19 (Typ.)(Tr/Td)
Viewing Angle    80/80/60/80 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode    TN, Normally White, Transmissive
Support Color    262K/16.7M   40% (CIE1931)
Light Source    WLED  [2 strings] , 100K hours , W/O Driver
Weight    750g (Typ.)
Designed For    Industrial Application
Frame Rate    60Hz
Touch Panel    Without
Interface Type    20 pins   LVDS (1 ch, 6/8-bit) , Connector
Power Supply    3.3V (Typ.)
Environment    Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C
