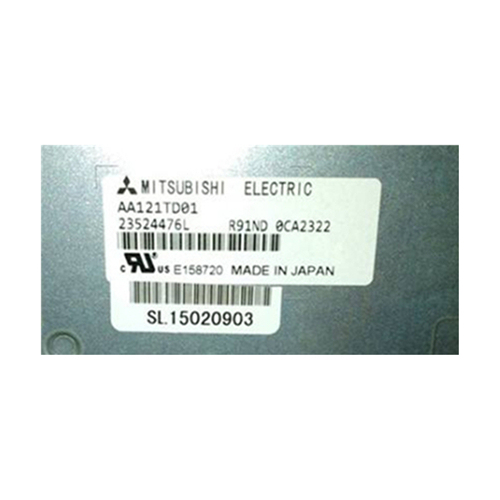

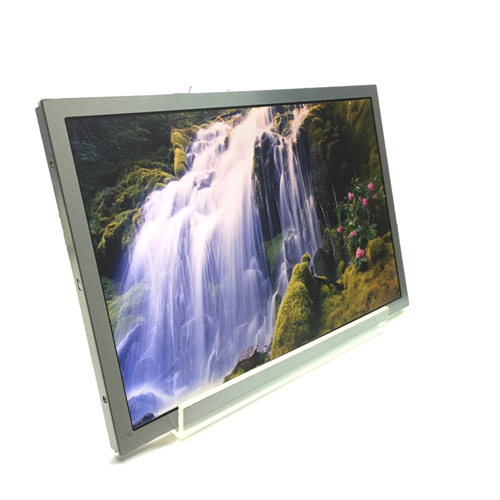

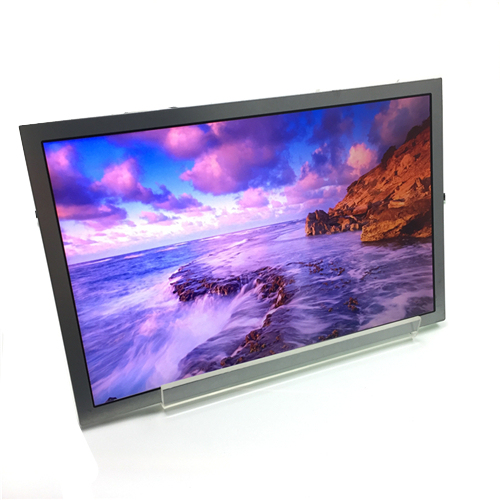

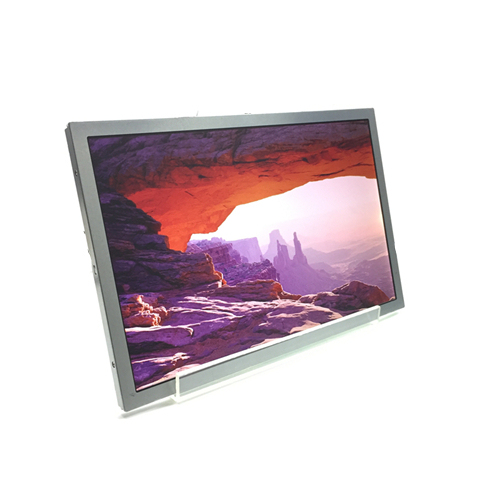

AA121TD01 mitsubishi 12.1 inch TFT-LCD display panel
No.AA121TD01
AA121TD01 mitsubishi 12.1 inch TFT-LCD display panel is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
AA121TD01 mitsubishi 12.1 inch TFT-LCD display panel is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
General Specification
Panel Brand Mitsubishi
Panel Model AA121TD01 Compatible Model 1 Compatible
Panel Size 12.1 inch
Panel Type a-Si TFT-LCD , LCM
Resolution 1280(RGB)×800 , WXGA
Pixel Format RGB Vertical Stripe
Display Area 261.12(W)×163.2(H) mm
Bezel Opening 263.52(W)×165.60(H) mm
Outline Size 283(W)×185.1(H) ×10.2(D) mm
Surface Antiglare, Hard coating (3H)
Brightness 700 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 80/80/80/60 (Typ.)(CR≥10) Left / Right / Up / Down
Display Mode TN, Normally White, Transmissive
Best View on 6 o'clock
Response Time 4/12 (Typ.)(Tr/Td)
Display Colors 262K/16.7M 40% (CIE1931)
Lamp Type WLED , 100K hours , Embedded (LED Driver)
Frequency 60Hz
Touch Screen Without
Panel Weight 620g (Typ.)
Application Industrial Application
Signal Interface LVDS (1 ch, 6/8-bit) , 20 pins , Connector
Input Voltage 3.3V (Typ.)
Environment Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C
