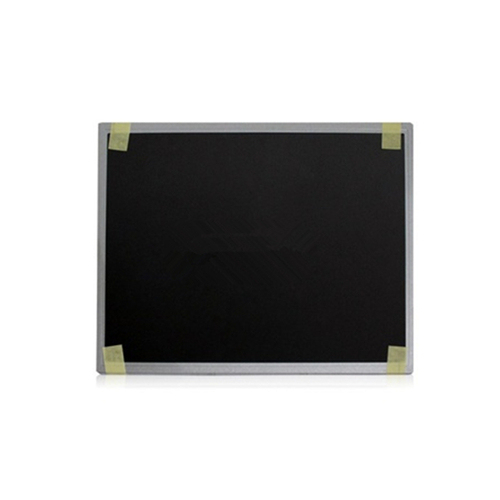

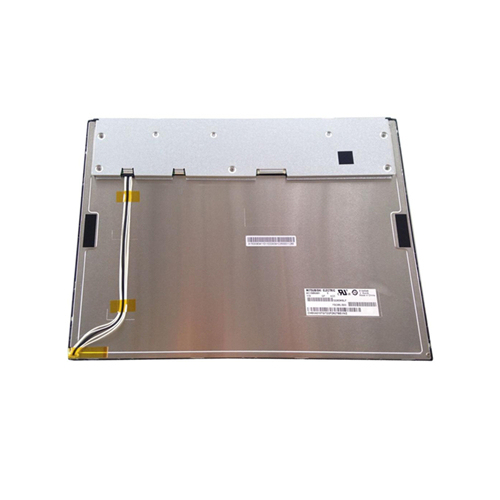

AC150XA01 mitsubishi 15 inch TFT-LCD display panel

Item No.: AC150XA01
AC150XA01 mitsubishi 15 inch TFT-LCD display panel is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
Description Review
Description

15 inch TFT-LCD 1024*768 RGB serviceable Industrial display AC150XA01 Mitsubishi without touch panel

AC150XA01 mitsubishi 15 inch TFT-LCD display panel is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.




 General Specification

Brand    Mitsubishi
Model    AC150XA01
Diagonal Size    15.0 inch
Type    a-Si TFT-LCD, LCM
Pixel Format    1024(RGB)×768   [XGA]
Configuration    RGB Vertical Stripe
Active Area    304.128(H)×228.096(V) mm
Outline Dim.    326.5(H)×253.5(V) mm
Bezel Area    307.4(H)×231.3(V) mm
Treatment    Antiglare, Hard coating (3H)
Luminance    450 cd/m² (Typ.)
Contrast Ratio    700:1 (Typ.) (TM)
View Direction    6 o'clock
Response Time    2/10 (Typ.)(Tr/Td)
Viewing Angle    80/80/70/70 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode    TN, Normally White, Transmissive
Support Color    262K/16.7M
Light Source    WLED , 100K hours , Embedded (LED Driver)
Weight    1.05Kgs (Typ.)
Designed For    Industrial Application
Frame Rate    60Hz
Touch Panel    Without
Interface Type    20 pins   LVDS (1 ch, 6/8-bit) , Connector
Power Supply    3.3V (Typ.)
Environment    Operating Temperature: 0 ~ 65 °C ; Storage Temperature: -20 ~ 65 °C
