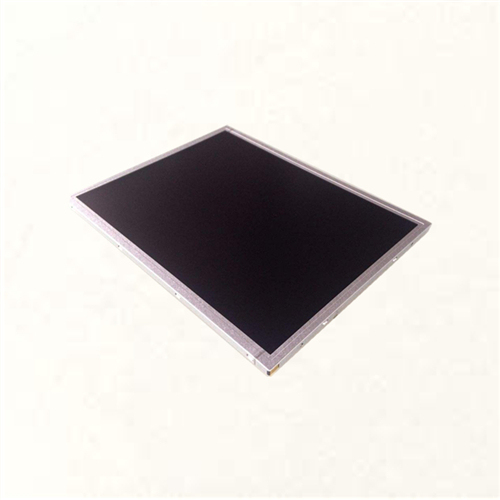

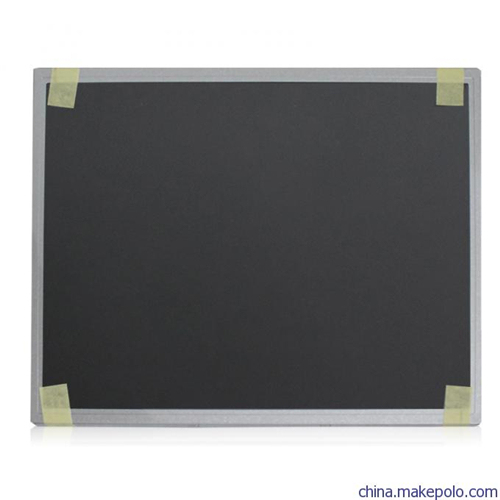

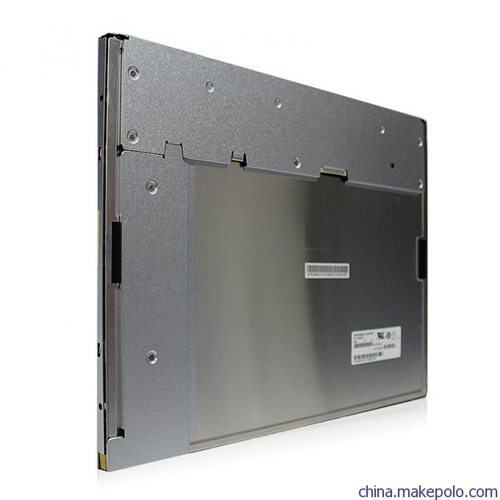

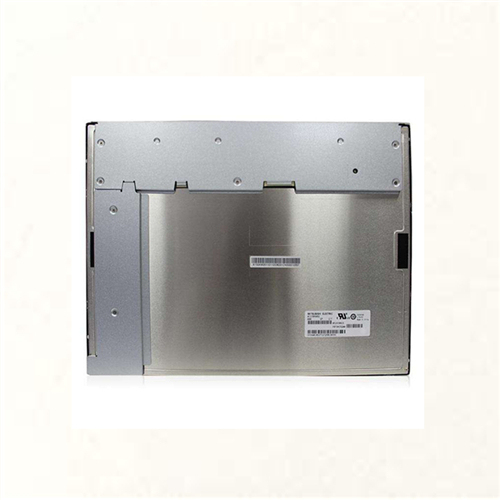

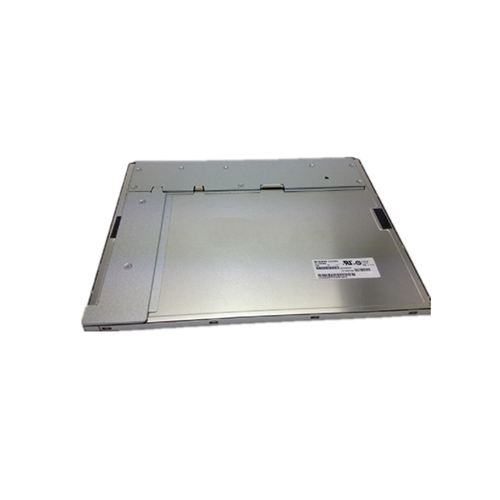

AC150XA02 mitsubishi 15 inch TFT-LCD display panel

Item No.: AC150XA02
AC150XA02 mitsubishi 15 inch TFT-LCD display panel is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
Description Review
Description

15 inch TFT-LCD 1024*768 450nits universal interchangeable LCM AC150XA02 Mitsubishi screen for Industrial use


AC150XA02 mitsubishi 15 inch TFT-LCD display panel is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.


 General Specifation

Environment    Operating Temp.: 0 ~ 65 °C ; Storage Temp.: -20 ~ 65 °C
Input Voltage    3.3V (Typ.)
Signal Interface    LVDS (1 ch, 6/8-bit) , 20 pins , Connector
Application    Industrial Application
Panel Weight    1.10Kgs (Typ.)
Touch Screen    Without
Frequency    60Hz
Lamp Type    WLED , 100K hours , Embedded (LED Driver)
Display Colors    262K/16.7M   60% (CIE1931)
Response Time    2/10 (Typ.)(Tr/Td)
Best View on    6 o'clock
Display Mode    TN, Normally White, Transmissive
Viewing Angle    80/80/70/70 (Typ.)(CR≥10) Left / Right / Up / Down
Contrast Ratio    700:1 (Typ.) (TM)
Brightness    450 cd/m² (Typ.)
Surface    Antiglare, Hard coating (3H)
Outline Size    326.5(W)×253.5(H) mm
Bezel Opening    307.4(W)×231.3(H) mm
Display Area    304.128(W)×228.096(H) mm
Pixel Format    RGB Vertical Stripe
Resolution    1024(RGB)×768 , XGA
Panel Type    a-Si TFT-LCD , LCM
Panel Size    15.0 inch
Panel Model    AC150XA02
Panel Brand    Mitsubishi
