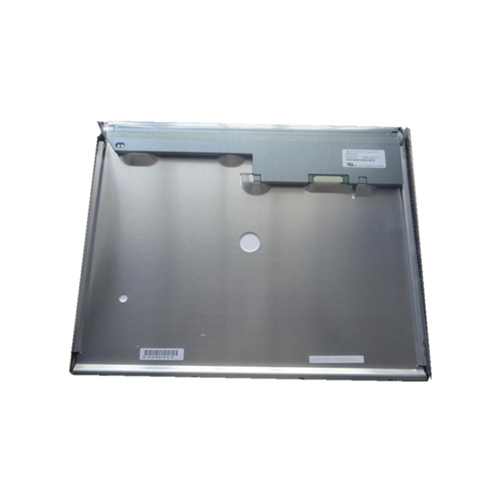

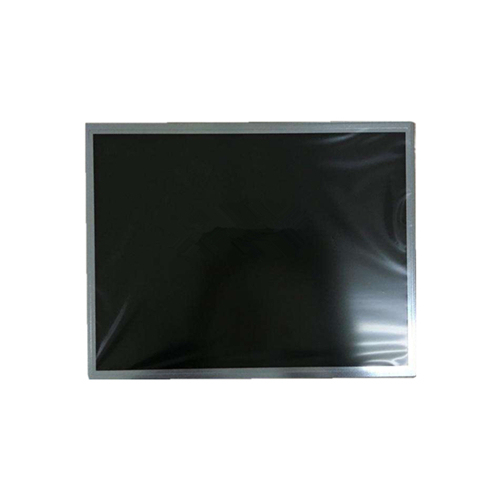

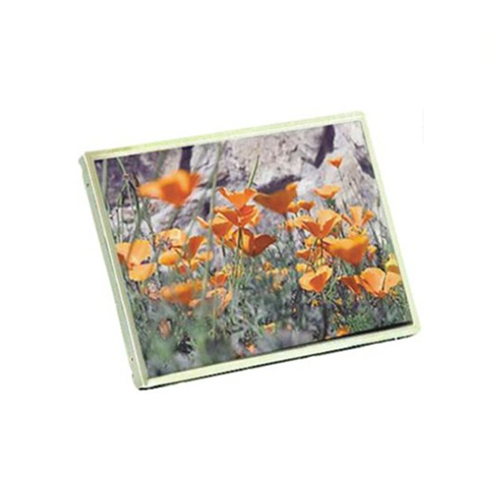

AA150XT11 mitsubishi 15 inch TFT-LCD display panel

Item No.: AA150XT11
AA150XT11 mitsubishi 15 inch TFT-LCD display panel is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
Description

AA150XT11 mitsubishi 15 inch TFT-LCD display panel is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.

 General Specification

Brand    Mitsubishi
Diagonal Size    15.0 inch
Model    AA150XT11
Type    a-Si TFT-LCD , LCM
Pixel Format    1024(RGB)×768   [XGA]
Active Area    304.128(H)×228.096(V) mm
Bezel Area    308.1(H)×232.1(V) mm
Luminance    1500 cd/m² (Typ.)
View Direction    6 o'clock
Viewing Angle    80/80/60/80 (Typ.)(CR≥10) Left / Right / Up / Down
Support Color    262K/16.7M   50% (CIE1931)
Weight    1.29Kgs (Typ.)
Frame Rate    60Hz
Configuration    RGB Vertical Stripe
Outline Dim.    326(H)×255(V) ×17.1(D) mm
Treatment    Antiglare, Hard coating (3H)
Contrast Ratio    800:1 (Typ.) (TM)
Response Time    6/19 (Typ.)(Tr/Td)
Operating Mode    TN, Normally White, Transmissive
Light Source    WLED  [7S4P×2CN] , 100K hours , W/O Driver
Designed For    Industrial Application
Touch Panel    Without
Interface Type    20 pins   LVDS (1 ch, 6/8-bit) , Connector
Power Supply    3.3V (Typ.)
Environment    Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C
