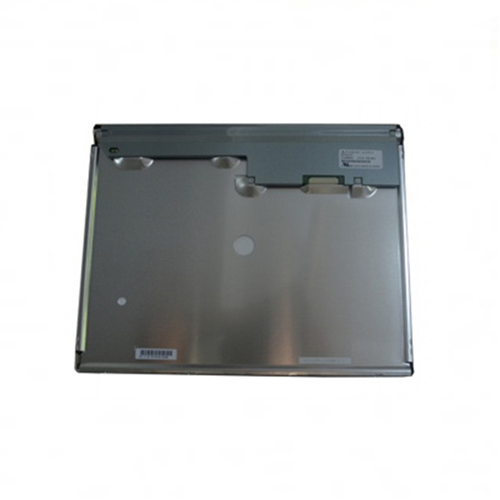

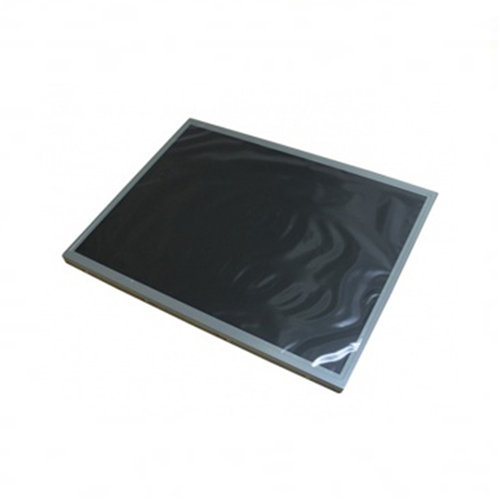

AA150XT01 mitsubishi 15 inch TFT-LCD display panel

Item No.: AA150XT01
AA150XT01 mitsubishi 15 inch TFT-LCD display panel is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
Description

AA150XT01 mitsubishi 15 inch TFT-LCD display panel is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.

 General Specification
Brand    Mitsubishi
Model    AA150XT01
Diagonal Size    15.0 inch
Type    a-Si TFT-LCD, LCM
Pixel Format    1024(RGB)×768   [XGA]
Configuration    RGB Vertical Stripe
Active Area    304.1(H)×228.1(V) mm
Outline Dim.    326(H)×255(V) ×17.1(D) mm
Bezel Area    308.1(H)×232.1(V) mm
Treatment    Antiglare, Hard coating (3H)
Luminance    800 cd/m² (Typ.)
Contrast Ratio    800:1 (Typ.) (TM)
View Direction    6 o'clock
Response Time    6/19 (Typ.)(Tr/Td)
Viewing Angle    80/80/60/80 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode    TN, Normally White, Transmissive
Support Color    262K/16.7M   50% (CIE1931)
Light Source    WLED  [7S4P] , 100K hours , W/O Driver
Weight    1.27Kgs (Typ.)
Designed For    Industrial Application
Frame Rate    60Hz
Touch Panel    Without
Interface Type    20 pins   LVDS (1 ch, 6/8-bit) , Connector
Power Supply    3.3V (Typ.)
Environment    Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C
