BOE 27.0 inch LCD module

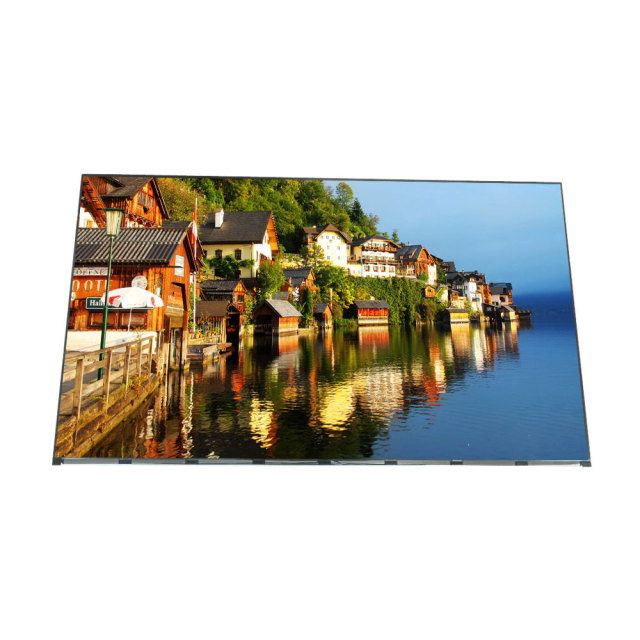

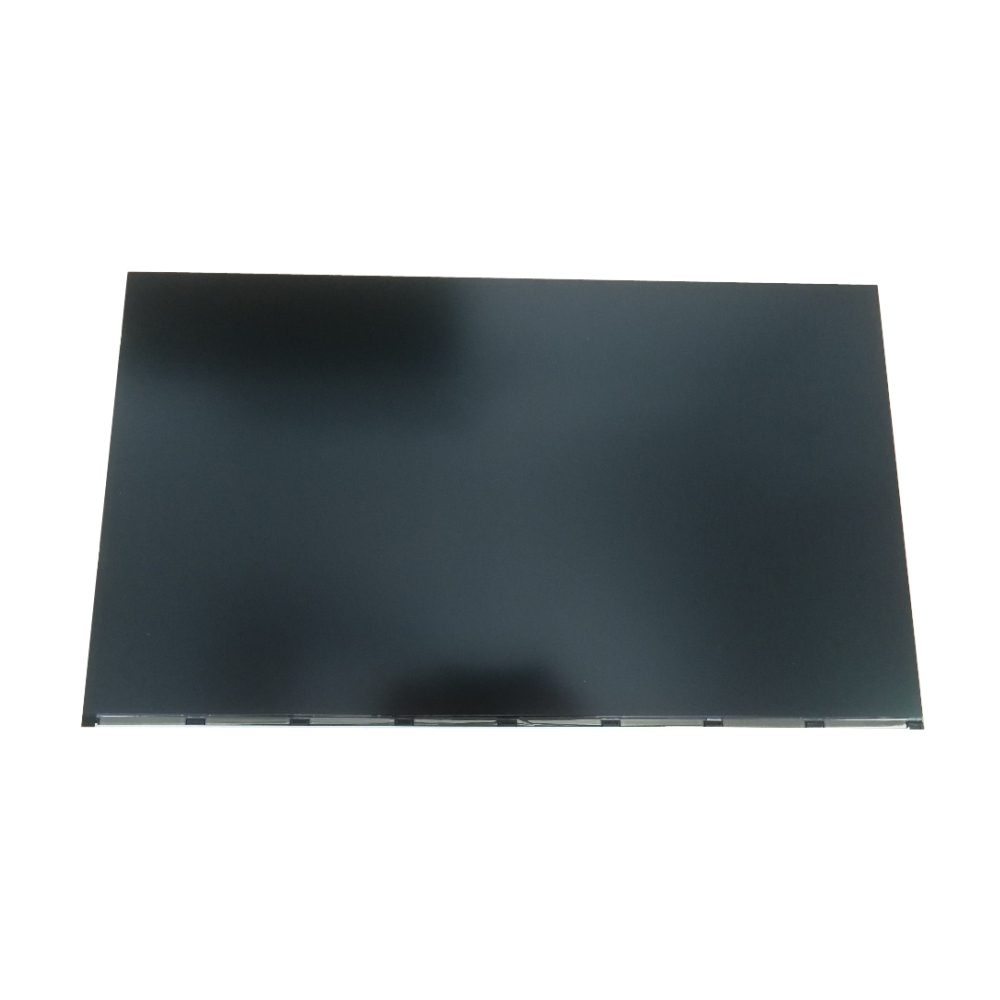

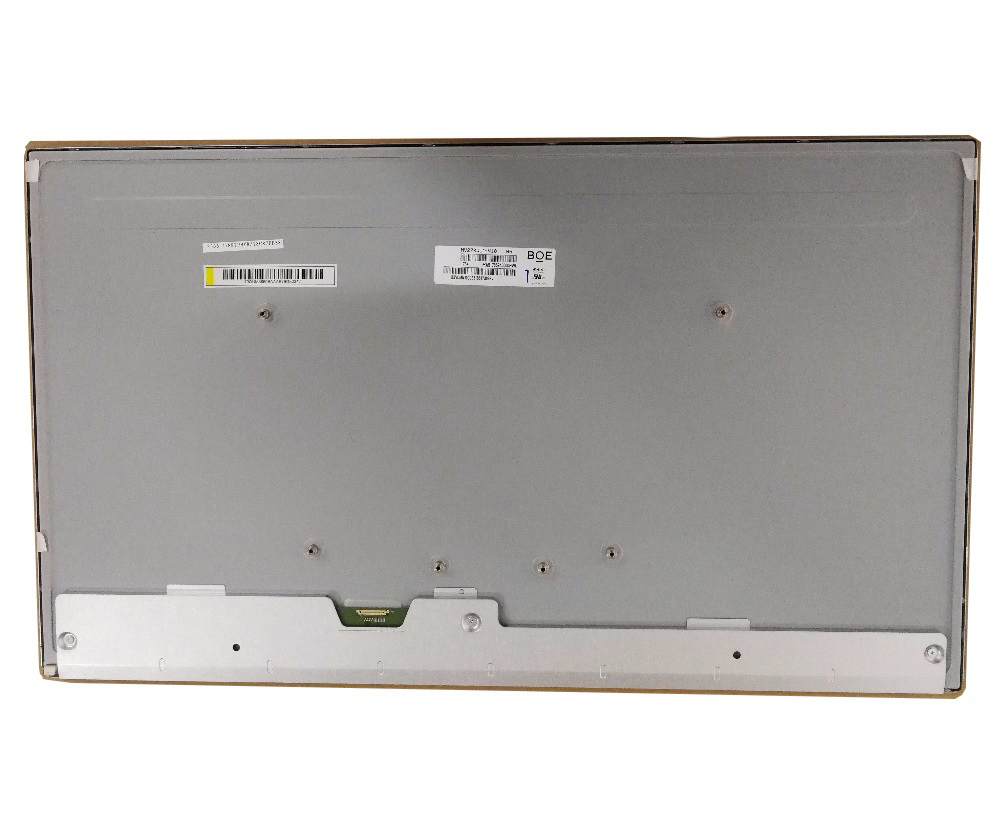

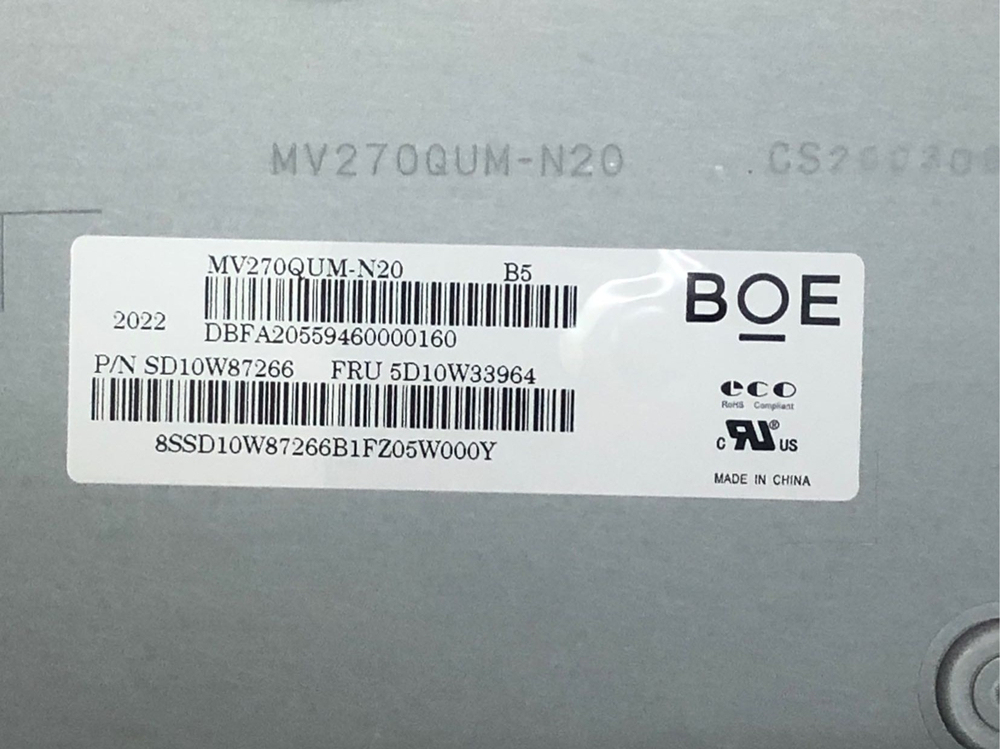

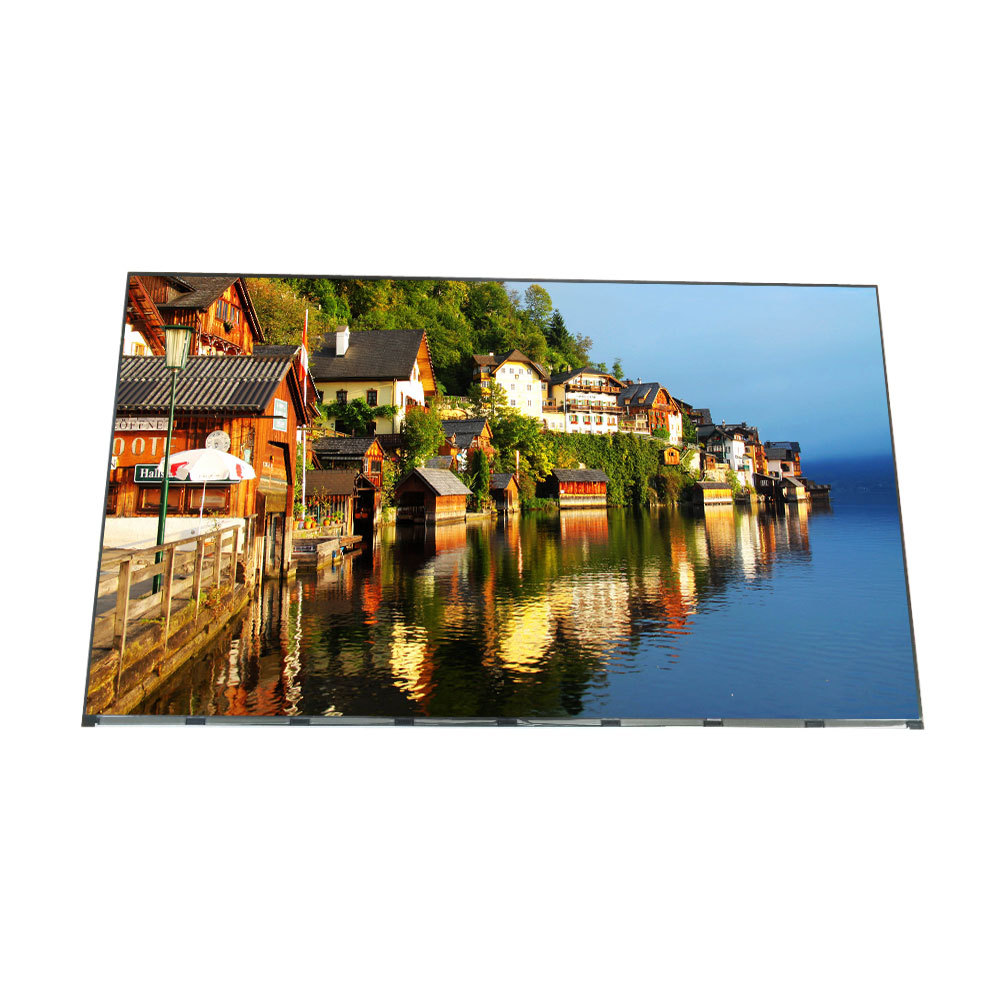

MV270QUM-N20 BOE 27 inch 4K UHD lcd module

Item No.: MV270QUM-N20
MV270QUM-N20 is a 27.0" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, with WLED backlight driver, without touch screen.
  • Price:
    USD$85-USD$80
Description Review
Description

MV270QUM-N20 BOE 27 inch 4K UHD TFT-LCD display module with full viewing angle

MV270QUM-N20 is a 27.0" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, with WLED backlight driver, without touch screen.

It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C. It's general features are summarized in the following: sRGB, WLED Backlight, Reverse I/F, 10 bit, Matte , SNB, 72% NTSC. Based on its features, we recommend that this model be applied to Desktop Monitor etc.

If you want to embed the LCM in your future product, we strongly recommend that you should contact with BOE or XIANHENG TECH to learn lateast production and specification detail of MV270QUM-N20.

Features

Reverse Type

4 lane eDP Interface with 5.4Gbps Link Rates

10bit(8+AFRC) color depth, display 1.07B colors

Incorporated edge type back-light (LED)

Compatible with sRGB 100%

High luminance and contrast ratio, low reflection and wide viewing angle

RoHS/Halogen Free

ES 7.0 compliant

Gamma Correction

ESD Grade:Class B



Application

Desktop Type of PC & Workstation Use

Slim-Size Display for Stand-alone Monitor

Display Terminals for Control System

Monitors for Process Controller



General Specification

Panel Brand: BOE

Panel Model: MV270QUM-N20

Panel Size: 27.0"

Panel Type: a-Si TFT-LCD, LCM

Resolution: 3840(RGB)×2160, UHD, 163PPI

Pixel Format: RGB Vertical Stripe

Display Area: 596.736(W)×335.664(H) mm

Bezel Opening: -

Outline Size: 608.8(W)×353.3(H) ×13.9(D) mm

SurfaceAnti: glare (Haze 25%), Hard coating (3H)

Brightness: 350 cd/m² (Typ.)

Contrast Ratio: 1000:1 (Typ.) (TM)

Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Display Mode: ADS, Normally Black, Transmissive

Best View on: Symmetry

Response Time: TBD

Display Colors: 1.07B   100% sRGB

Lamp Type: 19S4P WLED , 30K hours , Without Driver

Frequency: 60Hz

Touch Screen: Without

Panel Weight: 3.22Kgs (Typ.)

Application: Desktop Monitor

Signal Interfacee: DP (4 Lanes) , HBR2 (5.4G/lane) , 30 pins Connector

Input Voltage: 10.0V (Typ.)

Environment: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
