New A+ BOE 10.1 Inch 1280*800 Lvds 40pins NV101WXM-N01 For Edu & Ent
New A+ BOE 10.1 Inch 1280*800 Lvds 40pins NV101WXM-N01 For Edu & Ent New A+ BOE 10.1 Inch 1280*800 Lvds 40pins NV101WXM-N01 For Edu & Ent New A+ BOE 10.1 Inch 1280*800 Lvds 40pins NV101WXM-N01 For Edu & Ent New A+ BOE 10.1 Inch 1280*800 Lvds 40pins NV101WXM-N01 For Edu & Ent New A+ BOE 10.1 Inch 1280*800 Lvds 40pins NV101WXM-N01 For Edu & Ent New A+ BOE 10.1 Inch 1280*800 Lvds 40pins NV101WXM-N01 For Edu & Ent New A+ BOE 10.1 Inch 1280*800 Lvds 40pins NV101WXM-N01 For Edu & Ent New A+ BOE 10.1 Inch 1280*800 Lvds 40pins NV101WXM-N01 For Edu & Ent New A+ BOE 10.1 Inch 1280*800 Lvds 40pins NV101WXM-N01 For Edu & Ent New A+ BOE 10.1 Inch 1280*800 Lvds 40pins NV101WXM-N01 For Edu & Ent New A+ BOE 10.1 Inch 1280*800 Lvds 40pins NV101WXM-N01 For Edu & Ent New A+ BOE 10.1 Inch 1280*800 Lvds 40pins NV101WXM-N01 For Edu & Ent New A+ BOE 10.1 Inch 1280*800 Lvds 40pins NV101WXM-N01 For Edu & Ent New A+ BOE 10.1 Inch 1280*800 Lvds 40pins NV101WXM-N01 For Edu & Ent New A+ BOE 10.1 Inch 1280*800 Lvds 40pins NV101WXM-N01 For Edu & Ent New A+ BOE 10.1 Inch 1280*800 Lvds 40pins NV101WXM-N01 For Edu & Ent New A+ BOE 10.1 Inch 1280*800 Lvds 40pins NV101WXM-N01 For Edu & Ent New A+ BOE 10.1 Inch 1280*800 Lvds 40pins NV101WXM-N01 For Edu & Ent
  • New A+ BOE 10.1 Inch 1280*800 Lvds 40pins NV101WXM-N01 For Edu & Ent
  • New A+ BOE 10.1 Inch 1280*800 Lvds 40pins NV101WXM-N01 For Edu & Ent
  • New A+ BOE 10.1 Inch 1280*800 Lvds 40pins NV101WXM-N01 For Edu & Ent
  • New A+ BOE 10.1 Inch 1280*800 Lvds 40pins NV101WXM-N01 For Edu & Ent
  • New A+ BOE 10.1 Inch 1280*800 Lvds 40pins NV101WXM-N01 For Edu & Ent
  • New A+ BOE 10.1 Inch 1280*800 Lvds 40pins NV101WXM-N01 For Edu & Ent

New A+ BOE 10.1 Inch 1280*800 Lvds 40pins NV101WXM-N01 For Edu & Ent

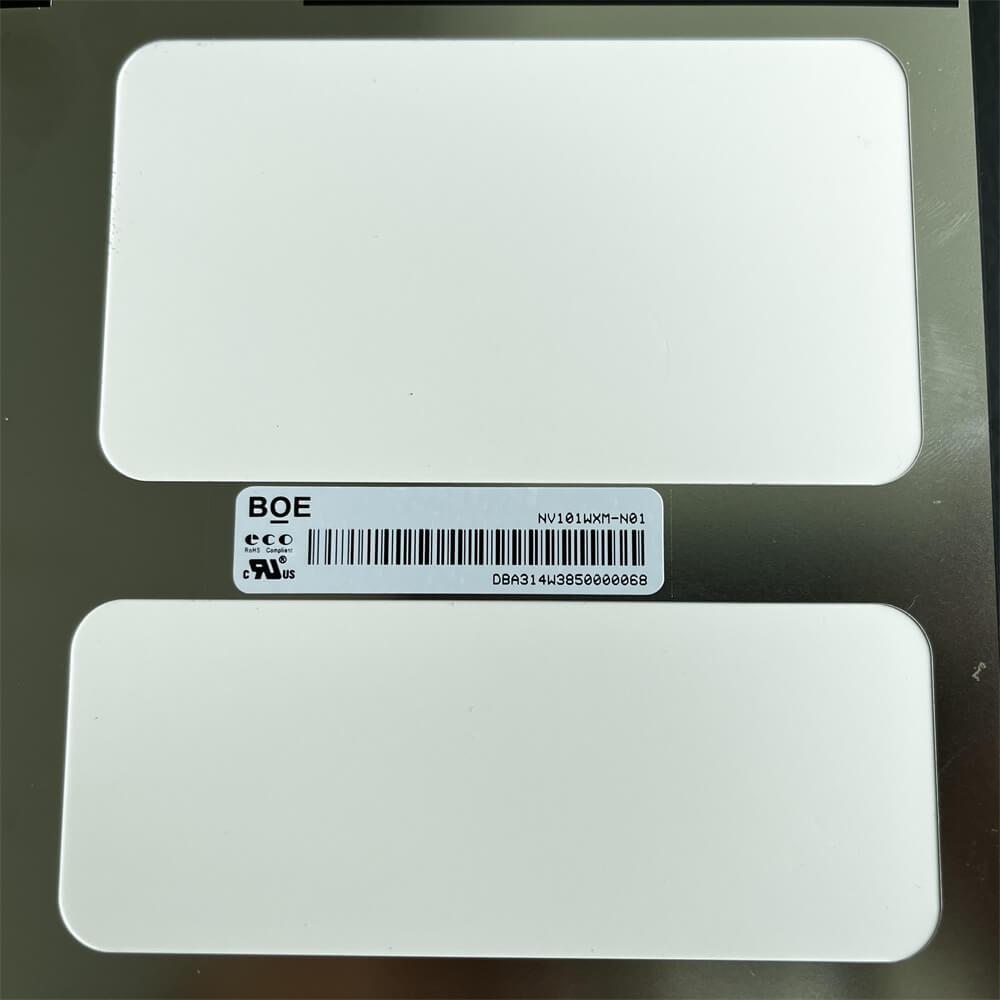

Item No.: NV101WXM-N01

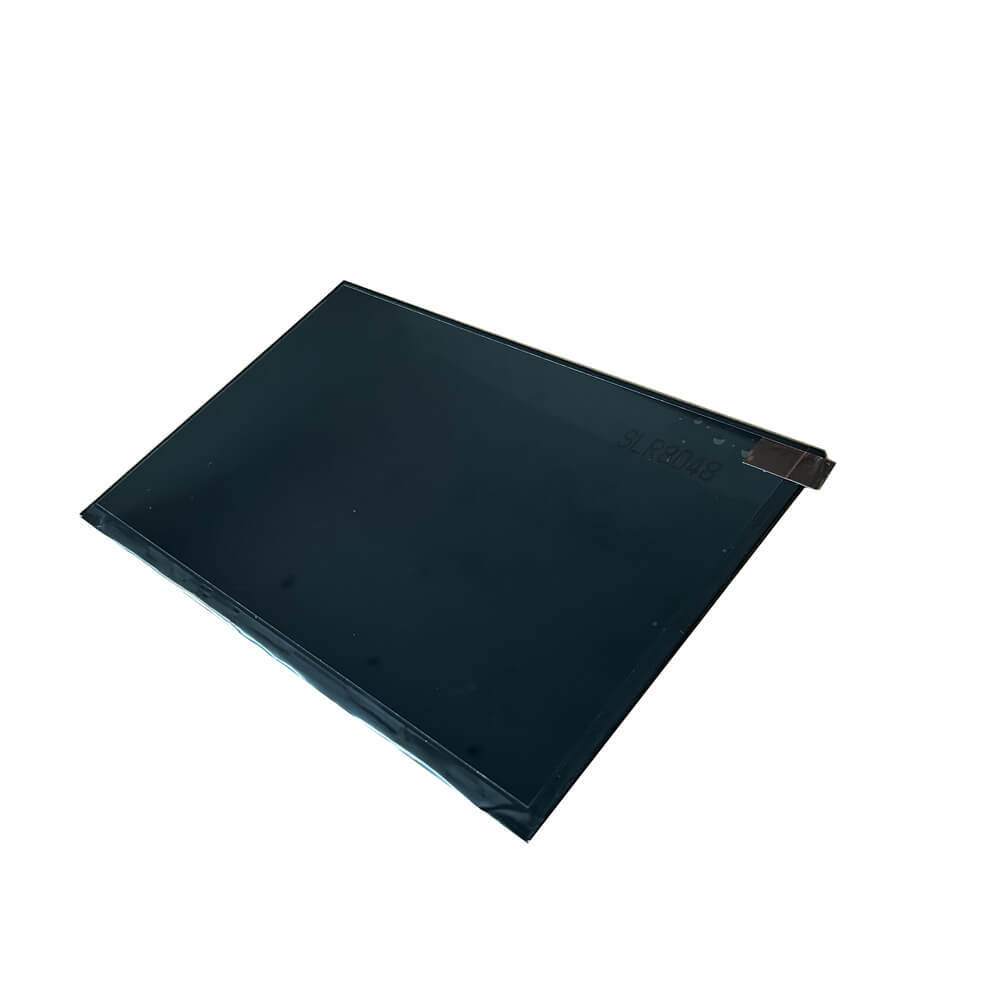

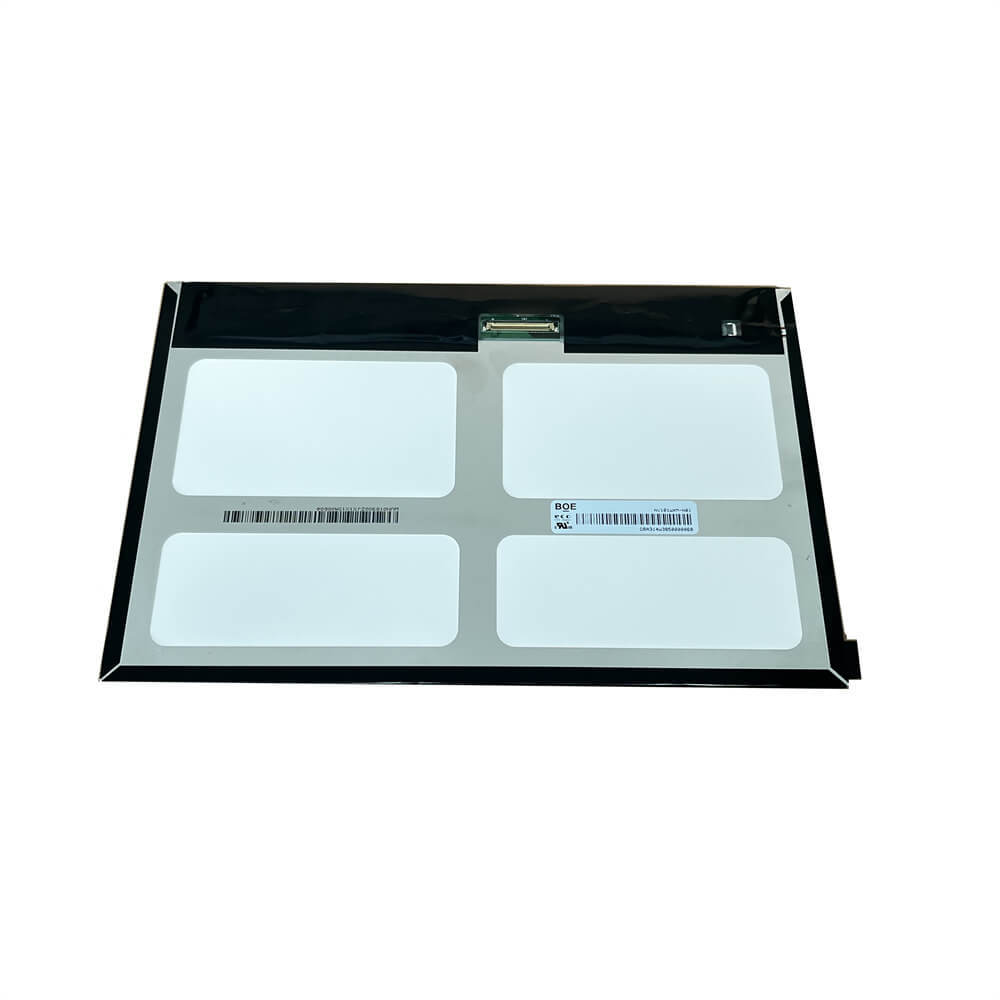

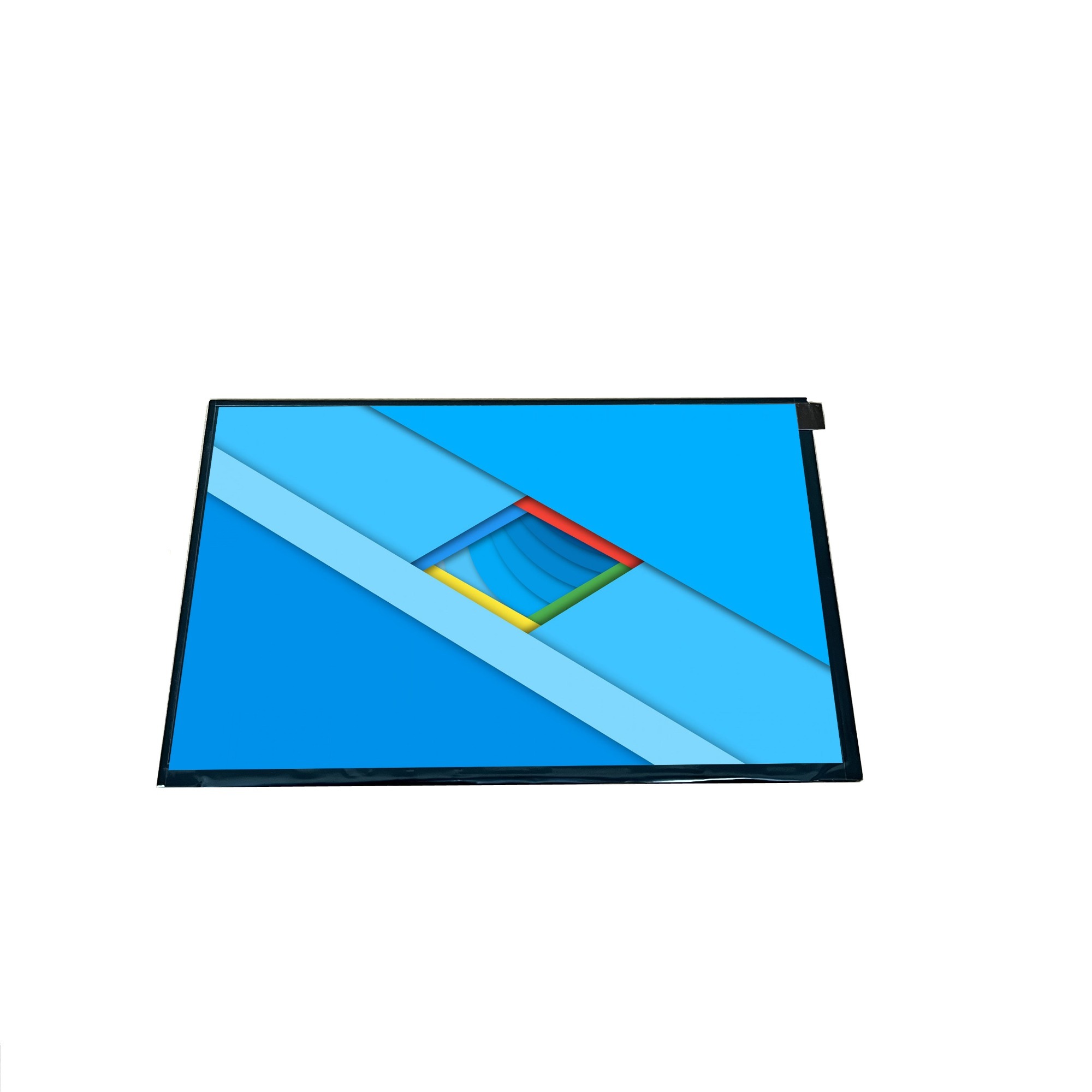

BOE NV101WXM-N01  is a 10.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen.
Request Quote PDF Format
Description Review
Description
BOE Technology Group Co., Ltd. (hereafter called BOE) NV101WXM-N01  is a 10.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen.

It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized in the following: WLED Backlight, With LED Driver , Application: running machine. Based on its features, we recommend that this model be applied to Industrial, Edu & Ent etc.

Now this model is in production.

If you want to embed NV101WXM-N01 LCM in your future product, we strongly recommend that you should contact with BOE or XIANHENG TECH to learn lateast production and specification detail.


Application for NV101WXM-N01：

Motormeter, injection pump, ecg monitor, fetal heart monitor, ventilator, outdoor handheld tablet, GPS navigator, console instrument, kitchen appliances, floor panel, elevator panel, etc.

【Notice】

- LCD is fragile, please avoid striking.
- Please keep the LCD  screen in a dry environment.
- We could supply Driver Boards Kits if you need.
- Our company deals only in wholesale, not retail.
- 40 pcs/box. We will deliver without unpacking the original package.
- Shipping fees need to be covered by buyers, please send a message to us to get order details.
- Due to the market fluctuations, please CONTACT US for accurate latest price.
- We reserve the right to reject orders that do not comply with our requirements.

Panel Brand BOE
Panel Model NV101WXM-N01
Panel Size 10.1"
Panel Type a-Si TFT-LCD, LCM
Resolution 1280(RGB)×800, WXGA, 149PPI
Pixel Format RGB Vertical Stripe
Display Area 216.96(W)×135.6(H) mm
Bezel Opening -

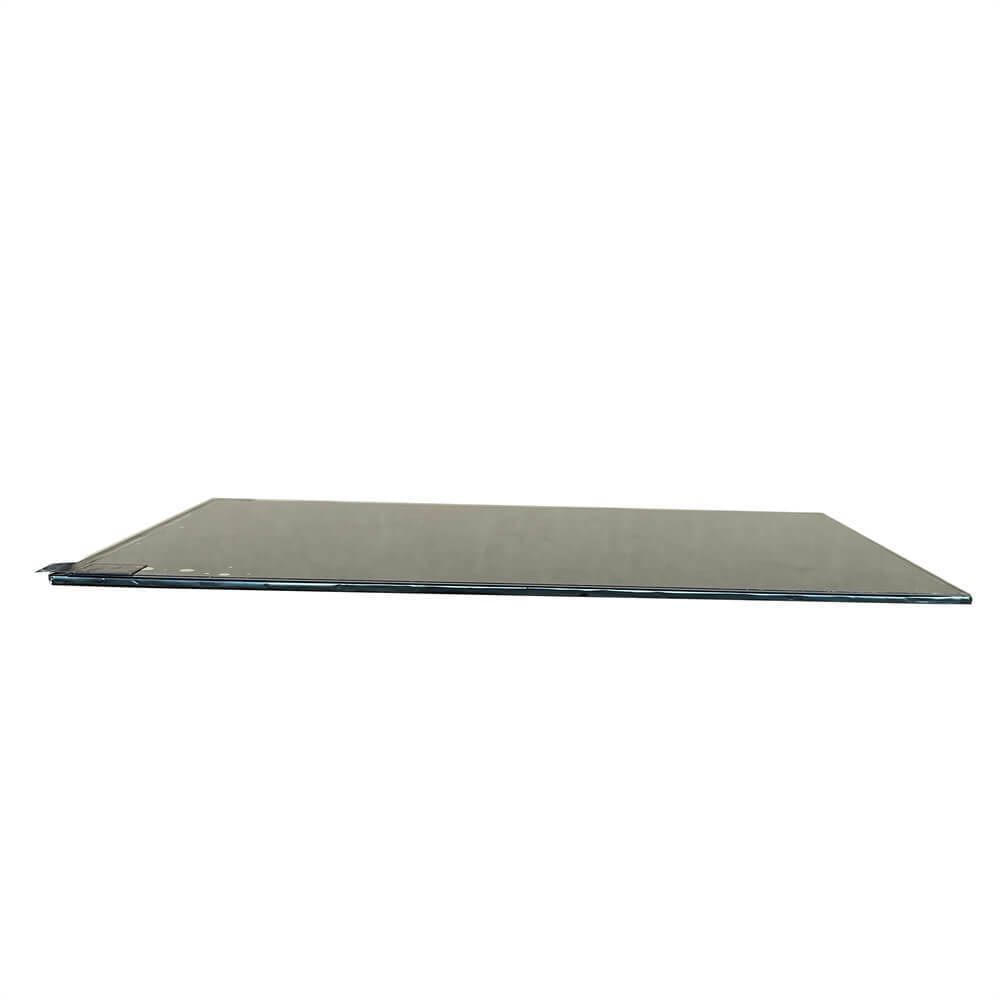

Outline Size 228.3(W)×149.05(H) ×4.7(D) mm
Surface Antireflection
Brightness 400 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down
Display Mode ADS, Normally Black, Transmissive
Best View on Symmetry
Response Time 30 (Typ.)(Tr+Td)
Display Colors 16.7M   48% NTSC
Lamp Type WLED , 15K hours , With LED Driver
Frequency 60Hz
Touch Screen Without
Panel Weight 400g (Max.)
Application Edu & Ent

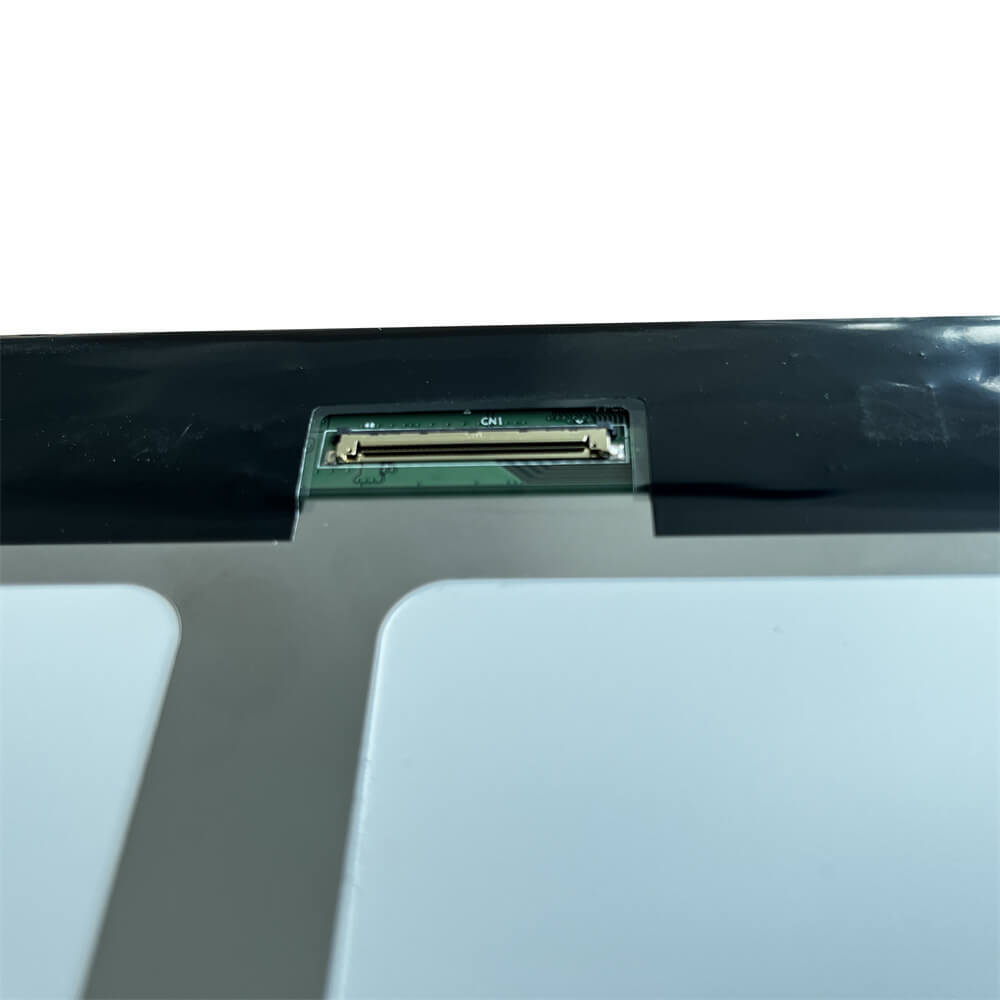

Signal Interface LVDS (2 ch, 8-bit) , 40 pins Connector
Input Voltage 3.3V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
