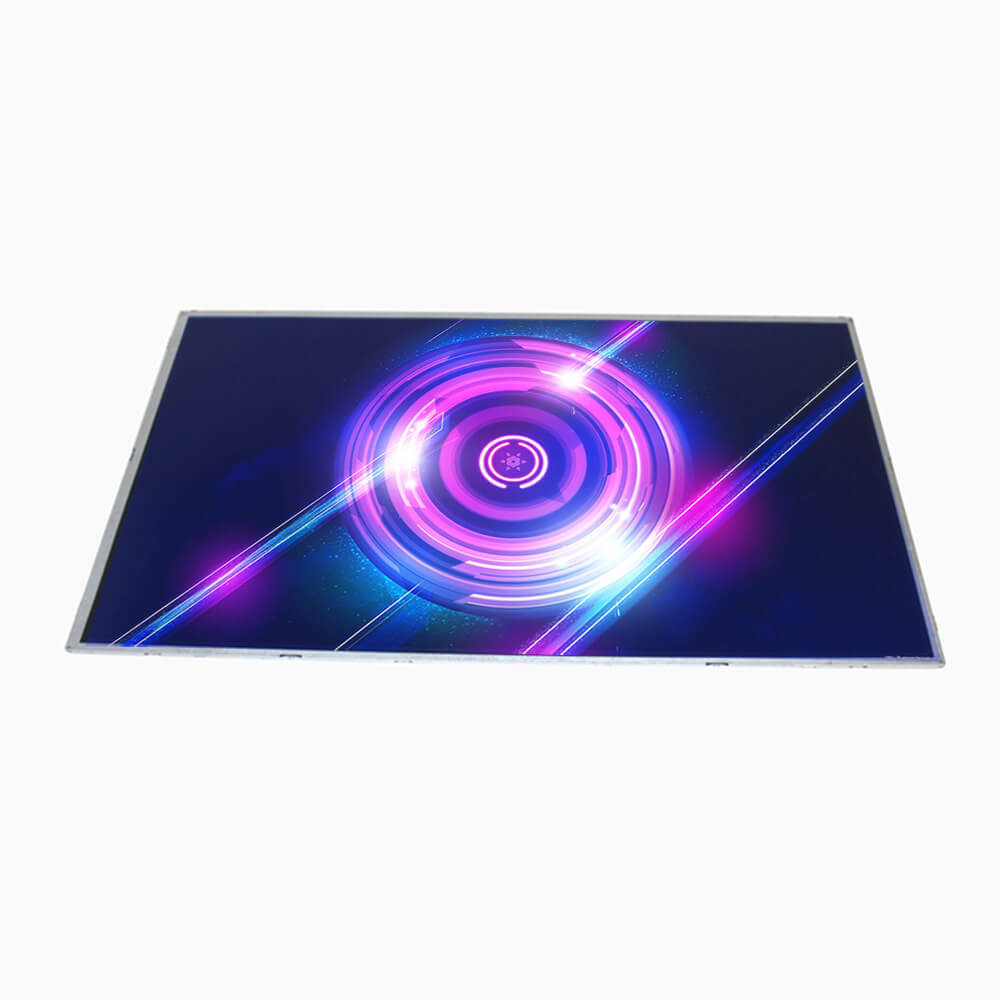

P270HVN02.0 27 inch AUO tft LCD module display screen

Item No.: P270HVN02.0
P270HVN02.0 is a 27.0" diagonal a-Si TFT-LCD display panel product from AUO, with an integral WLED backlight system, without backlight driver, without touch screen.
Description Review
Description

P270HVN02.0 is a 27.0" diagonal a-Si TFT-LCD display panel product from AUO, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²).



It's general features are summarized in the following: WLED Backlight, Reverse I/F, Matte , TCO 7.0 Compliance. Based on its features, we recommend that this model be applied to Digital Signage etc.



If you want to embed the LCM in your future product, we strongly recommend that you should contact with AUO or XIANHENG TECH to learn lateast production and specification detail of P270HVN02.0.

Brand: AUO

Model: P270HVN02.0

Diagonal Size: 27.0 inch

Type: a-Si TFT-LCD, LCM

Pixel Format: 1920(RGB)×1080  [FHD]  81PPI

Configuration: RGB Vertical Stripe

Active Area: 597.6(H)×336.15(V) mm

Outline Dim.: 613.6(H)×356.85(V) ×10.5(D) mm

Bezel Area: 601.6(H)×340.15(V) mm

Treatment: Antiglare, Hard coating (3H)

Luminance: 300 cd/m² (Typ.)

Contrast Ratio: 3000:1 (Typ.) (TM)

View Direction: Symmetry

Response Time: 7/5 (Typ.)(Tr/Td)

Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Operating Mode: VA, Normally Black, Transmissive

Support Color: 16.7M   72% NTSC

Light Source: WLED  [15S4P] , 40K hours , W/O Driver

Weight: 2.18Kgs (Typ.)

Designed For: Digital Signage

Frame Rate: 60Hz

Touch Panel: Without

Interface Type: LVDS (2 ch, 8-bit) , 30 pins Connector

Power Supply: 5.0V (Typ.)

Environment: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
