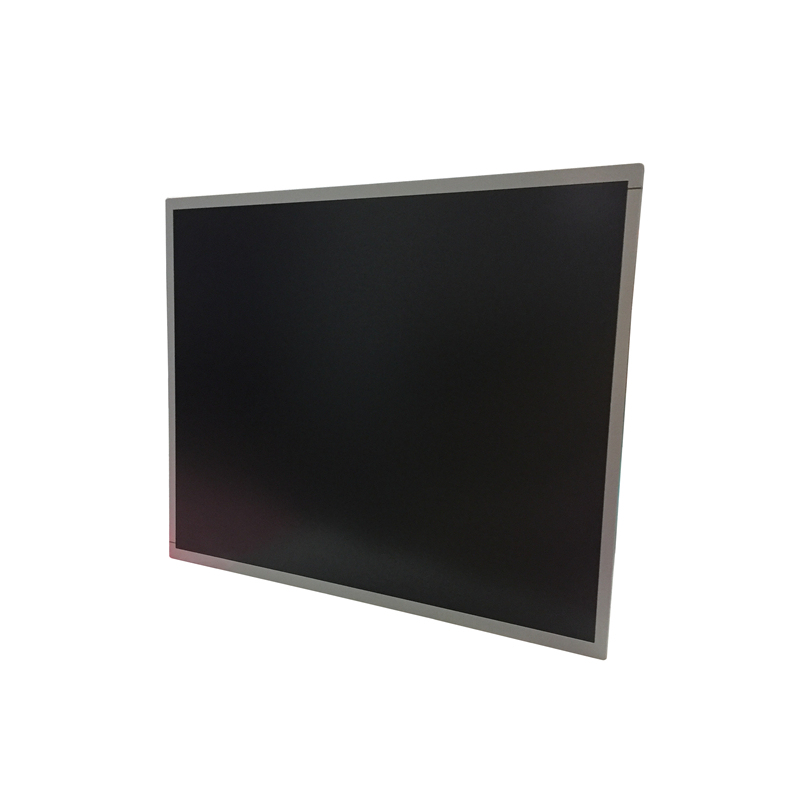

PV190E0M-N10 BOE Original 19" Robust Industrial Display Panel

Overview

The PV190E0M-N10, manufactured by BOE, is a high-performance 19.0-inch diagonal a-Si TFT-LCD display panel tailored for industrial applications. This state-of-the-art LCM (Liquid Crystal Module) boasts an integral WLED backlight system and a range of features that make it an ideal choice environments. Below, we delve deeper into the specifications, use cases, and benefits of this remarkable product.

Key Specifications

• Brand: BOE
• Model P/N: PV190E0M-N10
• Diagonal Size: 19.0 inches
• Panel Type: a-Si TFT-LCD, LCM
• Resolution: 1280(RGB)×1024 (SXGA), 86PPI Pixel Format**: RGB Vertical Stripe
• Active Area: 374.784(W)×299.827(H) mm
• Bezel Opening: 379(W)×303(H) mm
• Outline Size: 396(W)×324(H) ×12.13(D) mm
• Surface: Antiglare (Haze 25%), Hard coating (3H)
• ** 400 cd/m² (Typ.)
• Contrast Ratio: 1000:1 (Typ.)
• Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
• Display Mode: ADS, Normally Black, Transmissive
• Response Time: 14 ms (Typ.)(G to G)
• Display Colors: 16.7M, 73%- Lamp Type: WLED, 50K hours, Without Driver
• Frequency: 60Hz
• Touch Screen: None
• Panel Weight: 1.95Kgs (Typ.)

Features and Benefits

Robust Construction for Industrial Use

The PV190E0M-N10 is designed to withstand the rigors of industrial settings. Its operating temperature range of -10°C to 55° storage temperature range of -20°C to 60°C ensure reliable performance in a variety of environments. Additionally, the panel can handle a maximal vibration level of 1.5G (14.7 m/s²), making it suitable for applications where mechanical stress is a concern.

Superior Visual Performance

With a brightness of 400 cd/m² (Typ.) and a contrast ratio of 1000:1 (Typ.), the PV190E-N10 provides crisp, clear images even in brightly lit conditions. The 89° viewing angle in all directions (left, right, up, down) ensures that the display remains readable from various perspectives. The matte surface finish reduces glare and reflections, making it easier to view in direct sunlight.

Long-lasting Backlight System

The integral WLED backlight system offers a lifespan of 50,000 hours, ensuring long-term reliability and reducing the need for frequent replacements. This feature important in industrial applications where downtime for maintenance can be costly.

Versatile Connectivity

The PV190E0M-N10 features an LVDS (2 ch, 8-bit) signal interface with a 30-pin connector, providing versatile connectivity options. The input voltage of 5.0V (Typ.) ensures compatibility with a wide range of industrial control systems and devices.

Ideal for Various Industrial Applications

Based on its robust design and performance, the PV190E0M-N10 is recommended for various industrial applications, including:

• Control Panels: Ideal for displaying critical information and control options in manufacturing and process control systems.
• Machine Interfaces: Provides a reliable display for machine status, operational parameters, and diagnostics.
• Monitoring Systems: Suitable for real-time monitoring of industrial processes and equipment.

Inquiry and Collaboration

If you are interested in embedding the PV190E0M10 LCM in your future product, we strongly recommend reaching out to BOE or XIANHENG TECH for the latest production and specification details. These experts can provide you with comprehensive support and assistance to ensure that your application meets its full potential.
