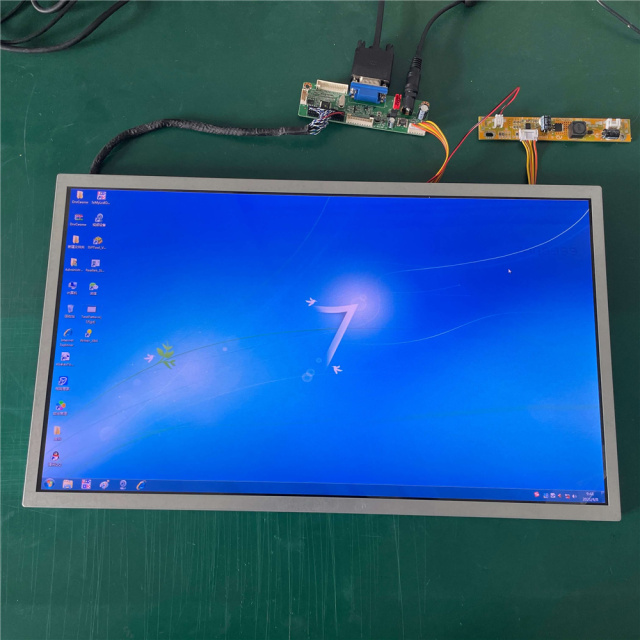

QV185FHB-N81 BOE 18.5 inch lcd display

Name: QV185FHB-N81 BOE 18.5 inch lcd display
Brand: XIANHENG | China LCD display supplier | SHENZHEN LCD module manufacturer
SKU: QV185FHB-N81
Availability: InStock
Rating: 5 (1 reviews)

Item No.: QV185FHB-N81

BOE QV185FHB-N81 is 18.5 inch color active matrix TFT LCD module with full HD resolution 1920x1080 for elevator ad display. Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. Th

INQUIRY PDF Format

Description

New 18.5 inches BOE QV185FHB-N81 LCD module with HD resolution 1920x1080 for elevator ad display

BOE QV185FHB-N81 is 18.5 inch color active matrix TFT LCD module with full HD resolution 1920x1080 for elevator ad display. Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.

Features

LVDS Interface with 1pixel / clock
High-speed response
6-bit(Hi-FRC) color depth, display 16. 7M colors
High luminance and contrast ratio, low reflection and normal viewing angle
DE (Data Enable) only
RoHS
Gamma Correction
RoHS
Gamma Correction
Forward Type

Application

Desktop Type of PC & Workstation Use
Slim-Size Display for Stand-alone Monitor
Display Terminals for Control System
Monitors for Process Controller

General Specification

Panel Brand:    BOE
Panel Model:    QV185FHB-N81
Panel Size   :    18.5 inch
Panel Type:    a-Si TFT-LCD , LCM
Resolution:    1920(RGB)×1080
Pixel Format:    RGB Vertical Stripe
Surface:    Antiglare (Haze 25%), Hard coating (3H)
Brightness:    200 cd/m² (Typ.)
Contrast Ratio:    600:1 (Typ.) (TM)
Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Best View on:    6 o'clock
Response Time:    1.5/3.5 (Typ.)(Tr/Td)
Display Colors:    16.7M   72% (CIE1931)
Lamp Type:    WLED , 30K hours , Without Driver
Frequency:    60Hz
Touch Screen:    Without
Panel Weight:    1.31Kgs (Typ.)
Application:    Desktop Monitor

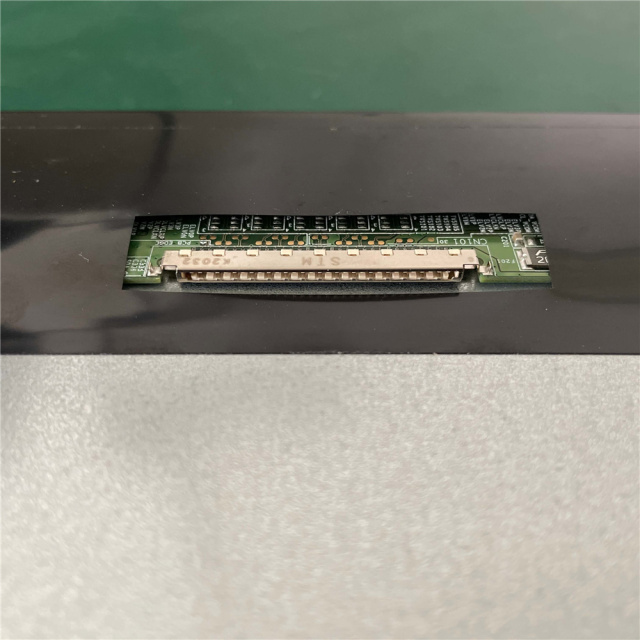

Signal Interface:    LVDS (1 ch, 8-bit) , 30 pins , Connector
Input Voltage:    5.0V (Typ.)
Environment:    Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
