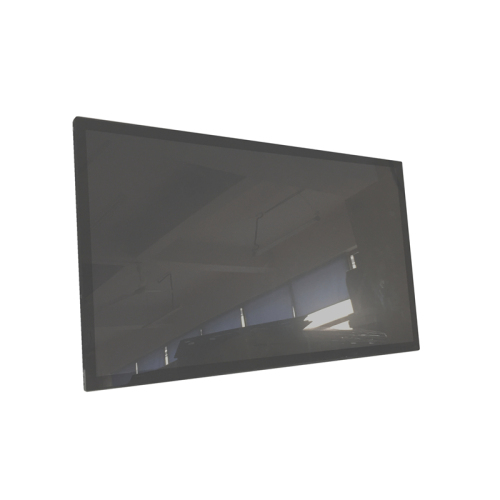

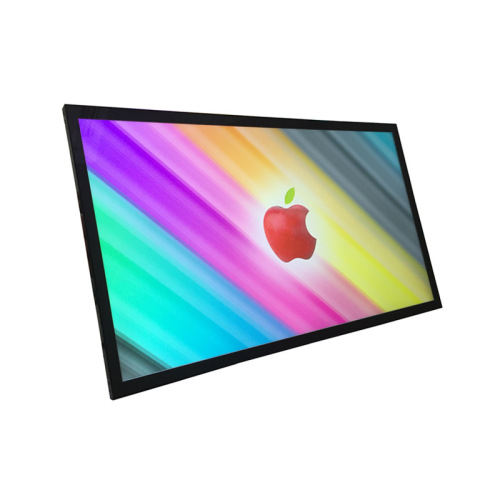

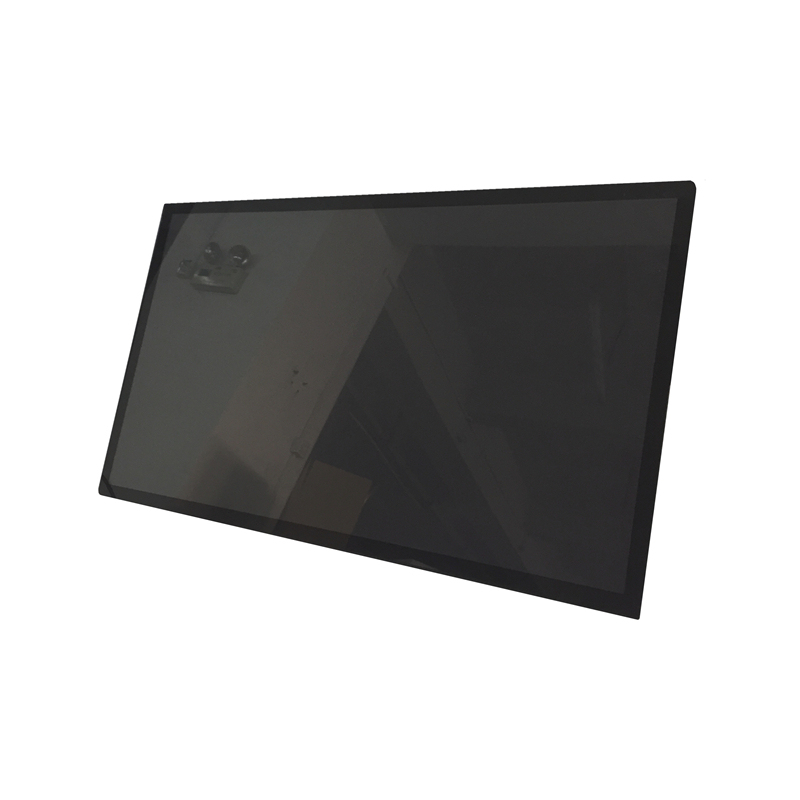

XH215HJK-L3B 21.5 inch AIO capacitive touchscreen lcd display

Item No.: XH215HJK-L3B
XH215HJK-L3B is a 21.5 inch AIO capacitive touchscreen lcd display using amorphous silicon TFT's as an active switching devices. This module has a 21.5 inch diagonally measured active area with FHD resolutions 1920*1080.
Description Review

Good sale high quality 21.5" lcd display monitor 22 inch with capacitive touch panel for industrial use

The XH215HJK-L3B is a 21.5” TFT Liquid Crystal Display cell with driver ICs and a 3 -pins-2ch LVDS circuit board. The product supports 1920 x 1080 Full HD mode and can display up to 16.7M colors. The backlight unit is not built in.

General Specification

Model Name:     XH215HJK-L3B
Screen Size:     21.5 inch
Screen Type:     LCM,   a-Si TFT-LCD
Pixel Number:     1920(RGB)×1080   (FHD)
Arrangement:     RGB Vertical Stripe
Active Area(mm):     476.064 × 267.768 (H×V)
Outline(mm):     499.48 × 291.24 (H×V×D
Bezel Area(mm):     -
Treatment:     Hard coating (6H)
Refresh Rate:     60Hz

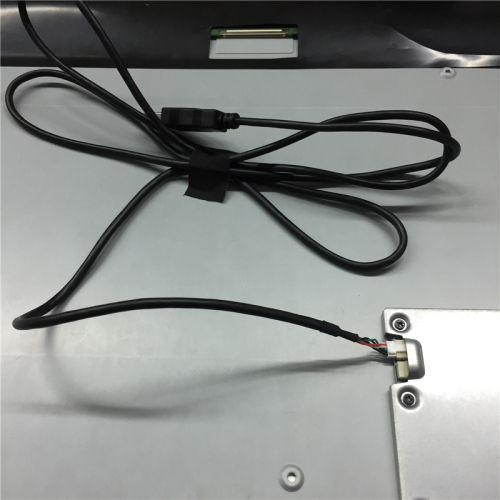

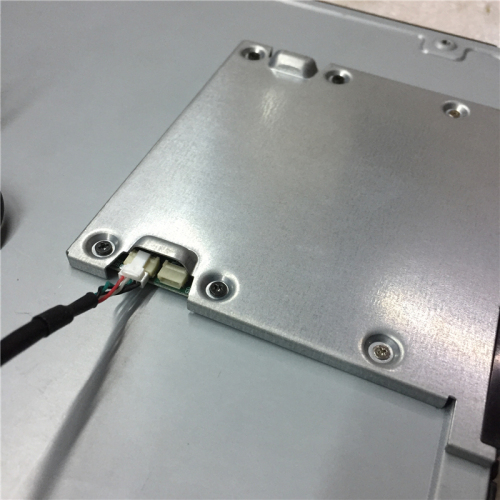

Touchscreen:     Embeded (Projected Capacitive Touch)
Signal Type:     LVDS (2 ch, 8-bit) , Connector , 30 pins
Luminance:     250 cd/m² (Typ.)
Contrast Ratio:     3000 : 1 (Typ.) (TM)
Viewing Angle:     89/89/89/89 (Typ.)(CR≥10)
Response:     20/5 (Typ.)(Tr/Td) ms
Good View at:     Symmetry
Work Mode:     MVA, Normally Black, Transmissive
Color Depth:     16.7M   72% (CIE1931)
Backlight:     WLED , 40K hours , No Driver
Mass:     2.55±0.12Kgs
Used for:     self service terminal system, Multi-Touch Query Machine
Voltage Supply:     5.0V (Typ.)
Max. Ratings:     Storage Temp.: -20 ~ 60 °C; Operating Temp.: 0 ~ 50 °C
